ZWO ASIAIR Mini Smart WiFi Controller - ASIAIR-MINI

The ASIAIR Mini is 42% smaller and 21% lighter than the ZWO ASIAIR Plus, and has been redesigned with eMMC top performance, including 119 MB/s average read time and 65 MB/s average write speed. Just like the PLUS, along with the free ASIAIR app, the ZWO ASIAIR Mini can handle most any astrophotography process from your smartphone or tablet!  It is compatible with most ZWO ASI & Mini cameras, a whole slew of Canon and Nikon DSLR and mirrorless cameras, and more than 400 equatorial mounts, as well as the ZWO EAF, EFW, and more!  Simply plug your compatible devices into the ASIAIR Mini, go to your installed ASIAIR app, and start imaging deep-sky objects or the planets, auto-guiding, autofocus functions, and more!

Other functions you can do on the ASIAIR app include focusing, polar alignment, filter switching, auto guiding, auto-run & more.

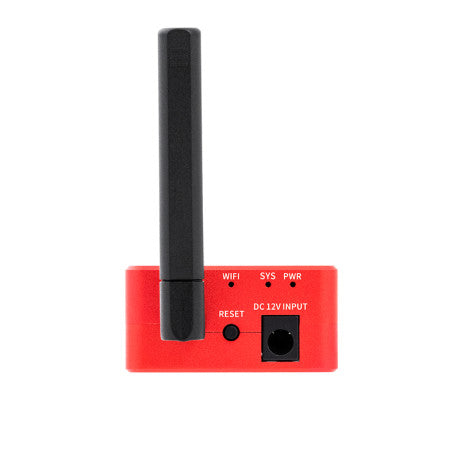

The ASIAIR Mini has an enhanced antenna with a dual-band 2.4G/5G WiFi network that has a 20 m working range, normally at 2.4G.  Keep in mind that while the 5G network is faster, it doesn't have the working range of the 2.4G network.

There are lots of easy to use interfaces on the sides of the ASIAIR Mini body:

• 1 Power Jack
• 4 USB2.0 Ports
• 1 DSLR Shutter Release Port

• 4 DC 12V Outputs*

• 1 USB Type C Port (a USB-C to USB-A cable is required)

*You can monitor devices plugged into each of the DC 12V ports in the App via the DC 12V Outputs Control Switch.  From the screen you can see working status, voltage use, WiFi Network, power consumption & real life temperature.

What's In The Box?

• ASIAIR Mini Body

• DC 0.5m Male Cable (2 ea)

• DC 1m Male Cable (2 ea)

• DC 1.5m Male-Female Extension Cable (1 ea)
• ASIAIR Plus Quick Start Guide

Minimum System Requirements

IOS/ipadOS - OS version 12 and up, iPhone 6s or later, iPad, iPad mini, iPad Air & iPad Pro

Android - OS version 8 and up, All Android phones & tablets with RAM of 4GB or higher
