ZWO

ZWO 36mm Ha SII OIII 7nm Unmounted Filter Set - NB7NMD36

In Stock
SKU: ZWO-NB7NMD36
Regular price $595.00 CAD
Regular price $647.00 CAD Sale Sale price $595.00 CAD

Product details

  • SKU ZWO-NB7NMD36

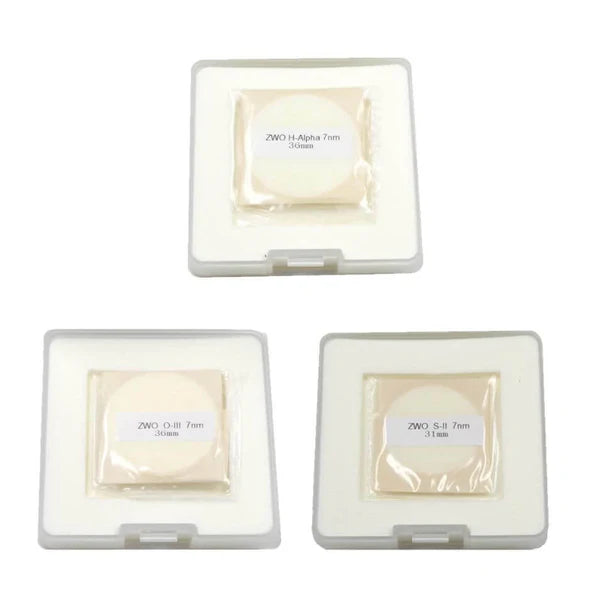

36mm SHO 7nm Filter Set

This filter set includes the ZWO 7nm Ha, SII & OIII filters that are compatible with 36mm filter wheels.  Here's more information on each of the filters, all of which come in their own plastic storage case.

H-Alpha

The ZWO H-Alpha filter has a bandpass of 7nm and passes light at 656nm wavelength, light transmission rate comes up to 80%. Best choice of narrowband H-alpha astrophotography filter for high-contrast imaging and revealing rich details of the nebula even in areas with strong light pollution, just prepare to experience the infinite fun with it!

SII

The ZWO narrowband S-II 7nm filter passes light at 672nm wavelength with a bandpass of 7nm which is designed for nebula observation . It is suitable for visual observation on most emission nebulae, planetary nebulae and supernova remnants, use it with H-alpha and OIII narrowband filters (SHO Set) for tricolor CCD astrophotography.

OIII

The ZWO narrowband O-III 7nm filter is designed for nebula observation allowing 7nm bandwidth of light centred on a wavelength of 500nm through, which corresponds to OIII emission lines, blocking out all other light. Adding the ZWO O-III Narrowband filter to your imaging collection will help you go beyond the RGB imaging and will help capture your favourite nebulas in a totally new light, no matter how polluted your skies may be!

It can reduce the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapour, and both high and low pressure sodium vapour lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).

  • Create the Hubble look by the combination of H-alpha, OIII-CCD and SII-CCD, such as the famous “Pillars of Creation” (M16 Eagle Nebula)
  • Narrowband imaging with SHO set (H-alpha, OIII-CCD and SII-CCD) can be done with the moon up in heavy light pollution, so your equipment is not sitting dormant for several weeks
  • Use the H-alpha filter to blend a black-and-white Ha image into RGB data to enhance structural detail while maintaining natural look.



Specifications

  • Name: ZWO SHO 36mm Filter Set
  • Size: D=36mm
  • Thickness: 2mm

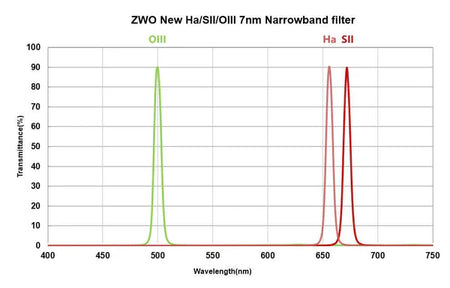

  • FWHM:7±0.5nm
  • Glass Thickness 2.0+/-0.03 mm (31mm/36mm)
  • Fine-optically polished to ensure accurate 1/4 wavefront over the both surfaces
  • About 90% transmission at H-alpha line 656nm (H-Alpha filter )
  • About 90% transmission at SII line 672nm (SII filter )
  • About 90% transmission at major OIII line 500nm (OIII filter )
  • Infrared wavelength 700-1100nm cut-off
  • <0.1% transmission of off-band, OD3(Optical Density)
