SVbony Guiding System - SV905C & SV165 (Pre-owned)
Couldn't load pickup availability
Used Camera and Guidescope in new condition
USB cables not included

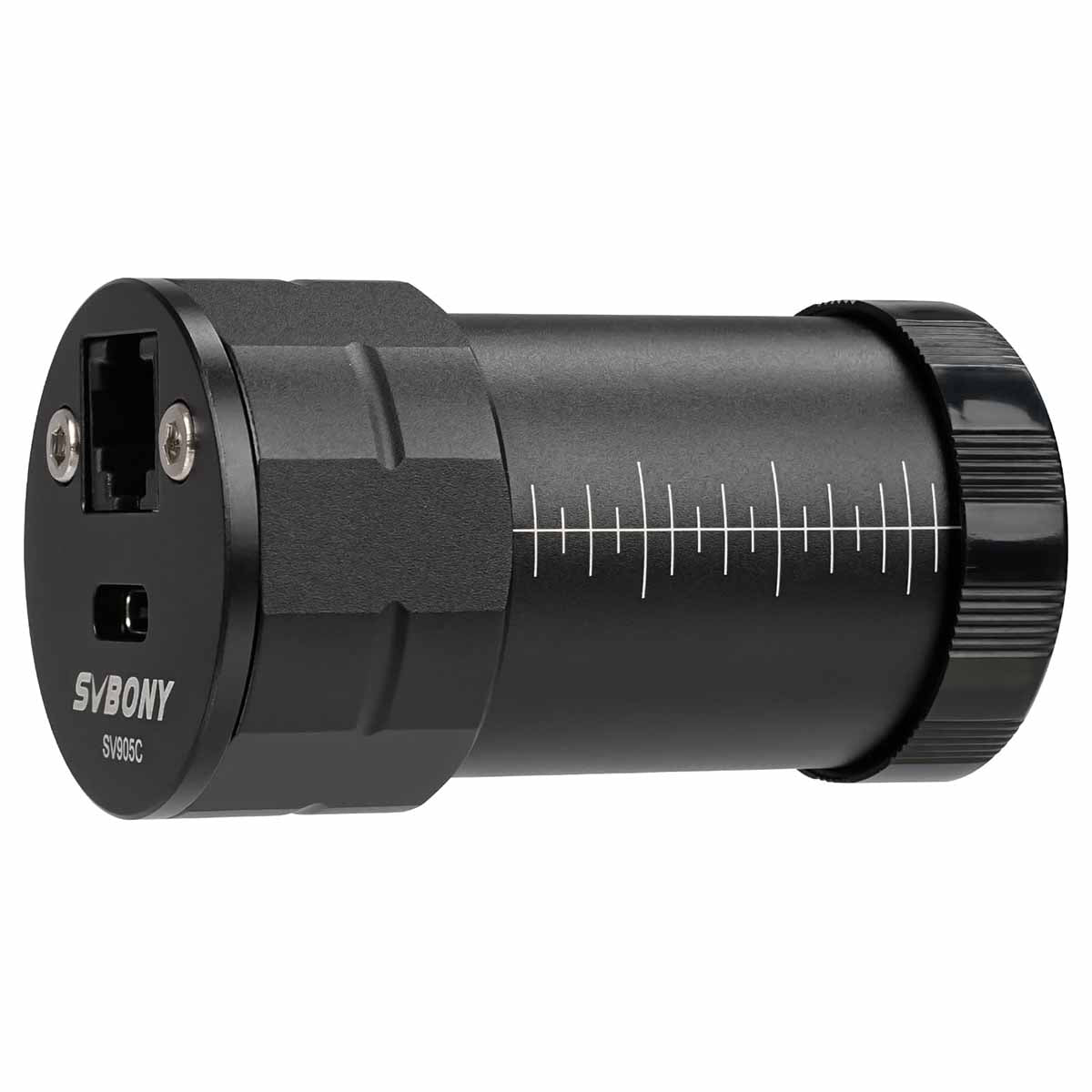

Svbony SV905C Color CMOS Guide & Planetary Camera
This compact and highly sensitive 1.2-megapixel color camera with 1/3” CMOS 1280x960 sensor is perfect for auto-guiding or planetary imaging.
Small 3.75-micron pixels, high peak QE of 75% and low read noise allows tight tracking of faint guide stars.

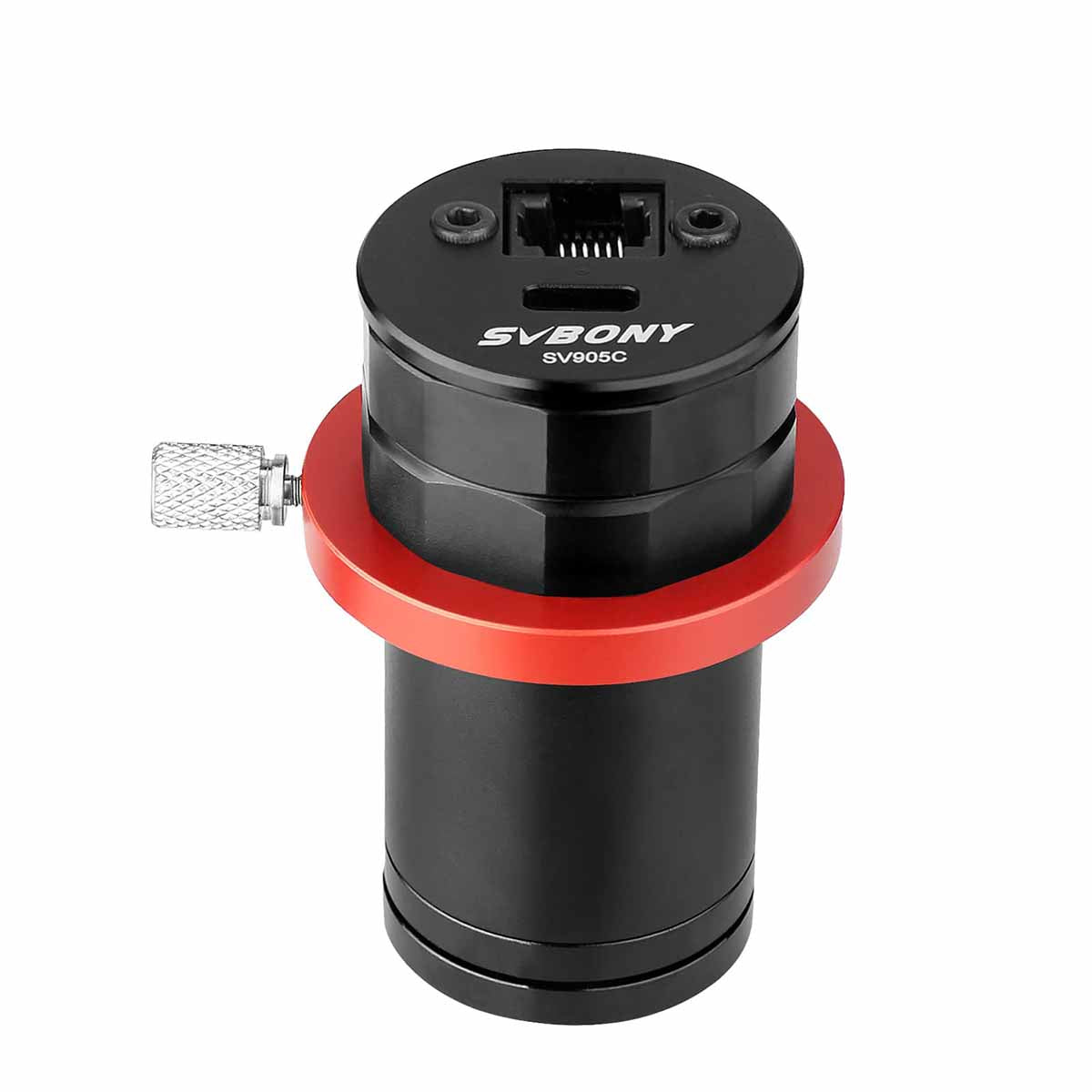

The Svbony SV905C color guide camera has a USB2.0 Type-C interface and ST4 port to connect directly to the auto-guider port of a telescope mount.
The small form factor, with a diameter of 36mm, lets you slip the camera into a 1.25” focuser; and it weighs just 60g (2.1oz)!

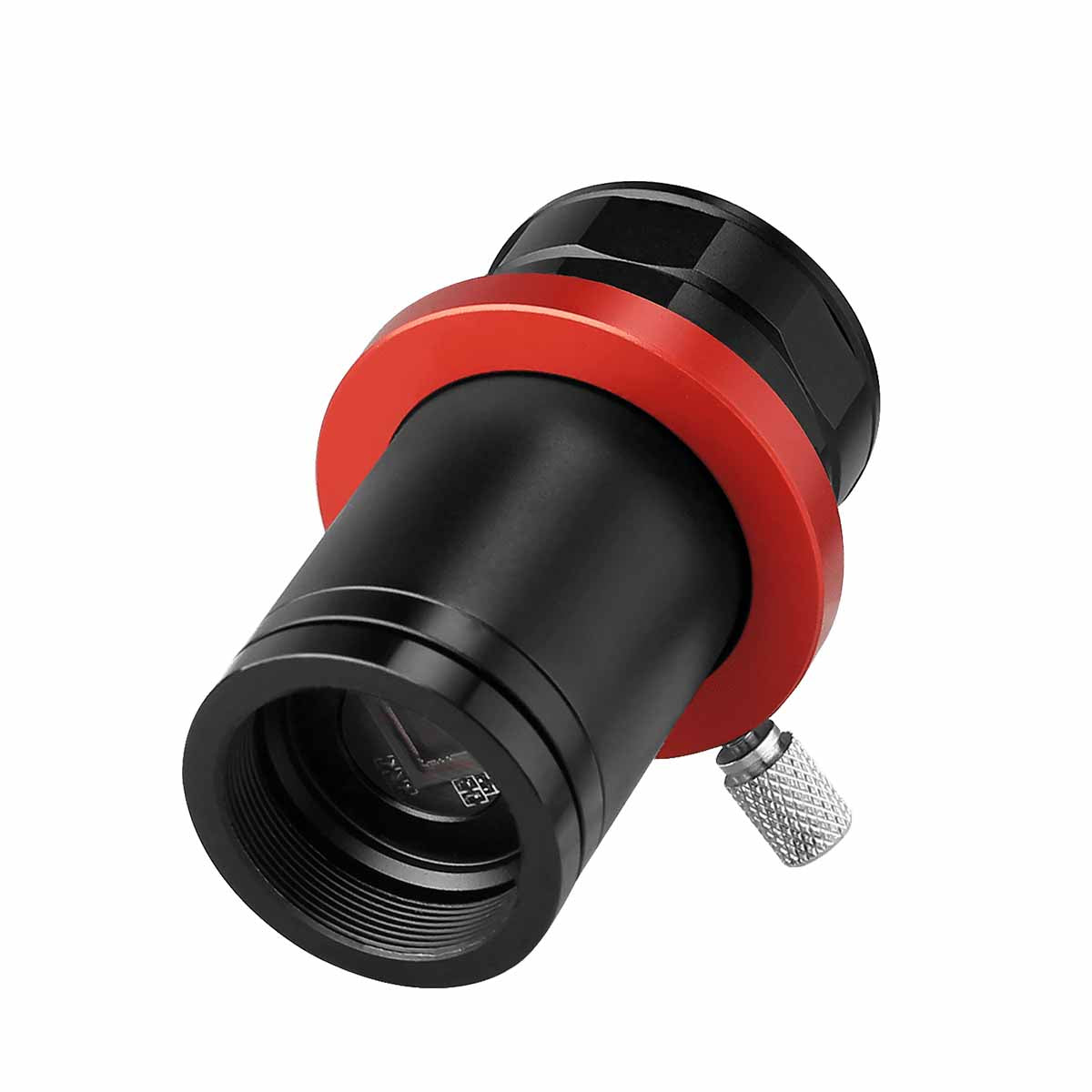

AR-coated protective window to maximize transmission and protect the sensor; includes M28.5X0.6 female thread for astronomy filters
Svbony SV905G Color Guide Camera Specifications
| Model | SV905C |
| Sensor | SONY IMX225 |
| USB Type | TypeC USB2.0 |
| Pixel Size | 3.75µmx3.75µm |
| Image Area | 4.8mm×3.6mm |
| Total pixels | 1.2M pixel |
| Diagonal | 6mm |
| Maximum Resolution | 1280×960 |
| Exposure Time | 64us~20s |
| Gain | 0-500 |
| Maximum Frame Rate | 39 FPS |
| Read noise | 4.0 e |
| QE peak | 80% |
| Shutter type | Rolling Shutter |
| Full well charge | 13ke |
| ADC | 12 bit |
| ROI function | Yes |
| Bin | 1x1 2x2 |
| Digital noise reduction | HCG mode |
| Video format | AVI mode |
| Communication interface | DirectShow interface |
| Application software | Windows OS: Sharpcap, Firecapture,PHD2 ASCOM platform Linux OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX Capture |
| Compatible system | Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS |
| Working temperature | - 5℃～45℃ |
| Storage temperature | - 20℃～60℃ |
| Working humidity | 20% RH-80% RH |
| Storage humidity | 20% RH-95% RH |
| Power consumption | <0.5W |
| Back intercept | 8.5mm/12.5mm |
| Protective glass | AR Coating |
.

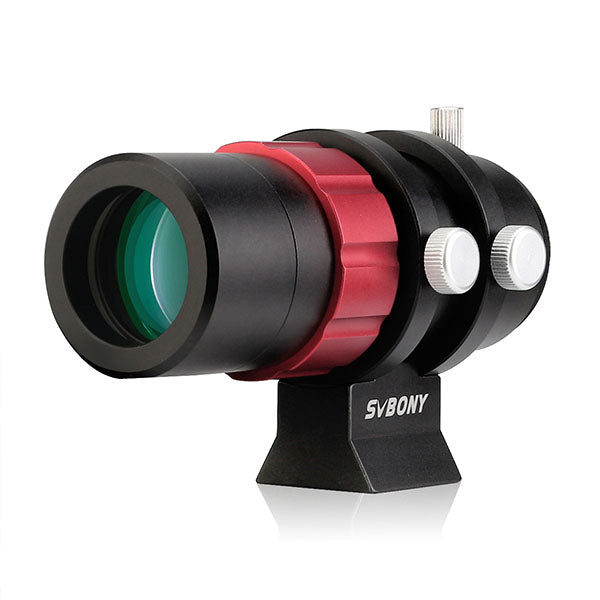

The Svbony SV165 Mini Guider is a great choice for pairing with the SV305 cameras as well as cameras from ZWO, QHY, Orion, and more! It is thoughtfully made, with large adjustment knobs that are easy to use even when you have gloves on!
The SV165 has an aperture of 30 mm, a focal length of 120 mm, and a focal ratio of f/4. The doublet optics are broadband fully multi-coated for clarity and brightness. Back focus length is 26 mm.
The camera end of the guider has 1.25" & M42*0.75 threads, making it compatible with a wide range of cameras.
The helical focuser has a 45mm focus stroke, allowing for easy and precise adjustments, and with fast f/4 optics, you'll have a nice wide field of view to help you center targets quickly. To focus, simple rotate the red lock ring to loosen the objective section in front of it. Now focus by rotating the objective, then rotate the red lock ring back into position to secure.
The mounting ring has nylon-tipped screws to keep the mini guider body scratch-free. Just loosen the knobs to rotate the guider as you wish. A mounting foot with a UNC 1/4-20 screw hole is included. Most scopes come standard with a finderscope shoe, making it easy to just slide the foot into the shoe and tighten it down.
