iOptron Photron RC8 - 8 inch Ritchey-Chrétien Astrograph Telescope OTA
Introducing the new iOptron Photron 200 mm (8") Ritchey-Chretien (RC) Astrograph! iOptron has long been recognized for producing solid, stable, accurate tracking telescope mounts, and now they have added three new RC Astrograph telescopes to their well-known line. This Astrograph is the model 6112, having an aperture of 200 mm (8 in) and a focal ratio of f/8 for a focal length of 1624 mm.
The iOptron® Photron Ritchey-Chrétien design telescopes feature low thermal expansion quartz primary and secondary mirrors with ninety-nine percent reflective dietetic coatings. The RC optical design delivers coma, spherical and chromatic aberration free results, perfect for color or monochrome imaging.
A fixed-position primary mirror cleverly eliminates image shift that occurs from focusing with other telescope designs. The iOptron RC8 200 mm Astrograph comes with a 2" dual-speed linear-bearing Crayford focuser. Three focuser extension rings are provided for a “flex-free” solid extension as a means to take up any unneeded back focus. Its steel tube is equipped with 10 knife edge baffles to diminish contrast reducing stray light, improving the instrument in both visual and imaging uses. This iOptron Photron 200 mm Ritchey-Chretien (RC) RC8 Astrograph model comes with a top and a bottom dovetail plate adding rigidity to the tube while providing attachment points for the mount and other accessories you may wish to use.
- Ritchey-Chrétien optical design
- Coma free, chromatic aberration-free, spherical aberration-free optics
- 200 mm (8") optical aperture
- 1624 mm focal length
- f/8 focal ratio
- Fixed primary mirror
- Low thermal expansion quartz mirrors
- Multiple (10) knife-edge baffle system
- 2" dual-speed Crayford focuser
- Finder scope base and two dovetail bars
- Optional finder scope
- Optional diagonal
- Optional 1.25" eyepiece
- Optional iOptron Electric Focuser

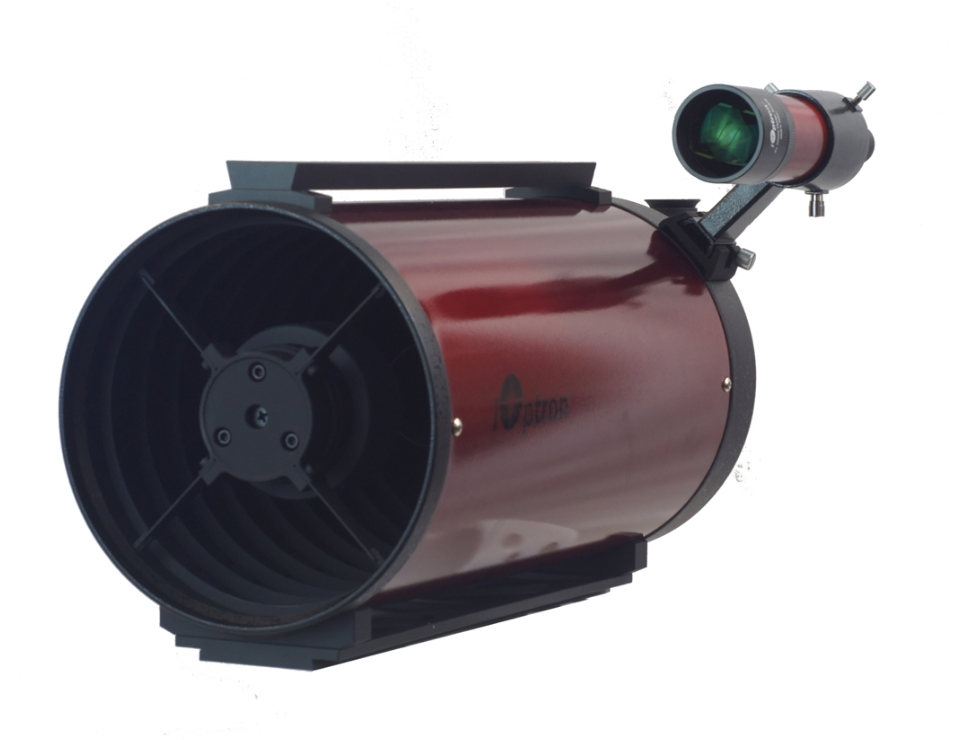

NOTE: Finderscope, star diagonal, and eyepiece shown in photo are for illustration purposes only, the finderscope, star diagonal, and eyepiece are NOT included with this OTA product.
What's In The Box:
#6112 8" RC OTA only w/2" dual speed Crayford focuser
- 2X25 mm, 1 X 50 mm focus extention
- 1.25" accessory adapter
- Top Vixen-style mounting bar and bottom Losmandy-style dovetail bar
|Highest Useful Magnification:
|Secondary Mirror Size:
||10:1 Crayford dual-speed
||Losmandy-style plus 1 Vixen-style
||2” to 1.25” compression ring adapter; 1" long extension tube X2; 2" long extension tube X1
||One year limited
