Product details
- SKU IOP-3360
iOptron iGuider Auto-Guiding System for Mounts
- Complete Opto-Electonic guiding system for mounts
- Compact Autoguider System, portable, easy to use
- System includes Mini-Scope, and Camera
- 30 mm Aperture Scope
- 1.2 MPixel Camera with 1/3" Sensor Chip
- 1280x960 Pixel Array size
- Mates with CEM26 or GEM28 iOptron mounts
- Includes standard finder scope dovetail for other scopes
This is the new iOptron compact iGuider Auto-Guiding System (for Mounts). It is a complete, ready to use portable mini guiding telescope and a coupled iGuider electronic sensor camera. When used as a coupled system on an iOptron mount or other telescopes, this iGuider Auto-Guiding System from iOptron functions as a complete electronic guiding system. The resolution of the autoguider is 6.44 arcsecond per pixel, which is a "plate scale" which is highly suited to guiding for short- to medium-length telescopes.

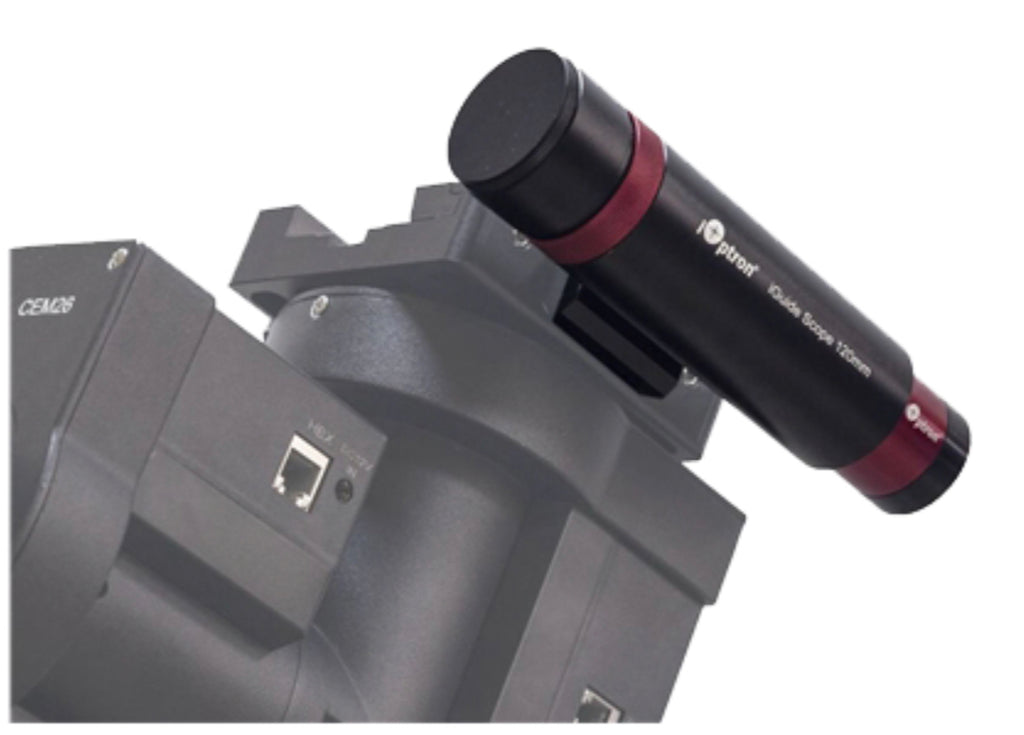

The telescope has a 30 mm aperture dielectric AR-coated achromatic lens with a focal length of 120 mm, and f/number of f/4. It is a sharp imaging telescope and provides high quality opto-electronic guiding with the included digital camera. This system will easily mate with the iOptron CEM26 or the GEM 28 mounts without needing any adapters. It includes a standard finder scope dovetail, so that you can use this guider system with another telescope which has a standard finder scope slot.

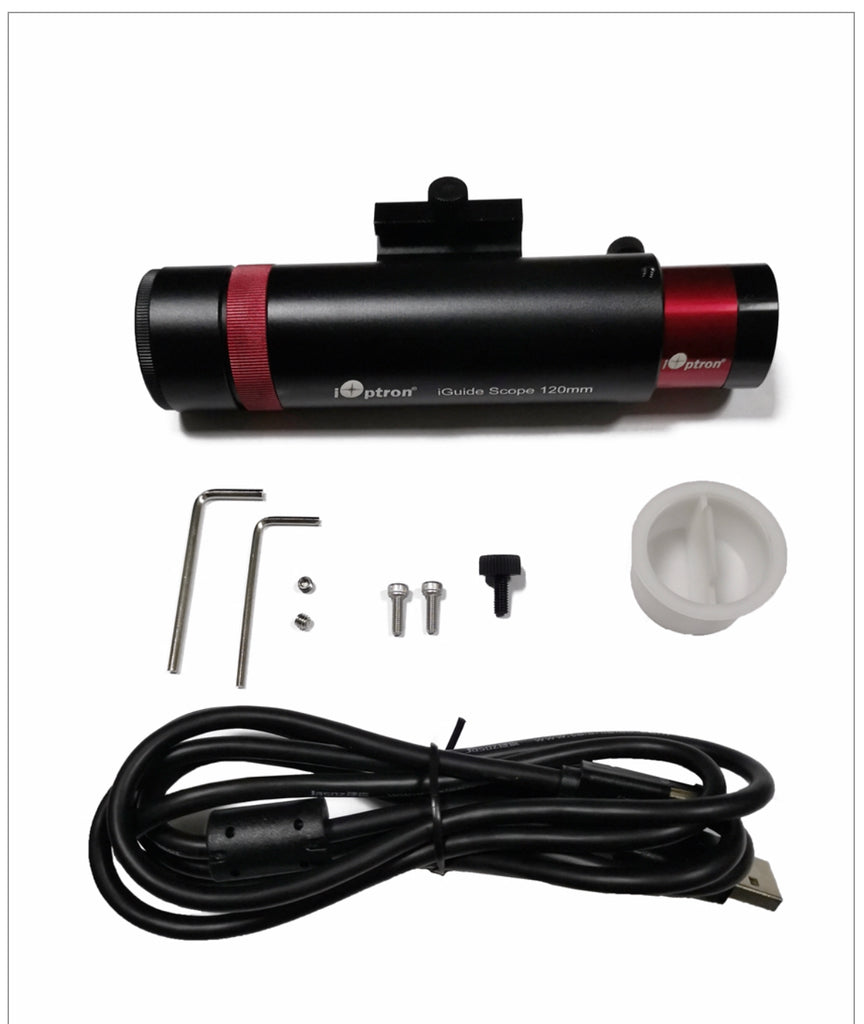

This complete system (#3360) includes the Part #3361 iOptron Mini Guide Scope, plus the Part #3362 iOptron iGuider Camera, plus a USB-type cable, and includes the finder scope dovetail, hardware, two hex wrenches, and dust caps for the front and rear of the scope.
Specifications:
Manufacturer: | iOptron |
SKU: | 3360 |
Function: | Opto-Electonic guiding system, Compact |
Scope Aperture: | 30 mm |
Scope Focal Length: | 120 mm |
Focal Ratio: | f/4 |
Camera Pixel Array: | 1280x960 |
Pixel Size: | 3.75 micrometer |
Pixel Content: | 1.2 MegaPixels |
Sensor Chip: | 1/3" Type Size |
Resolution: | 6.44 arcsecond/pixel effective with scope |
Weight: | 200 g (Guide Scope & Camera) |
Guider Method: | Supports Pulse Guiding (ASCOM) |
ST-4 Guiding? | No, ST-4 Guiding is Not supported |
System Components: | Mini Guide Telescope, Electronic Sensor Camera, Mounting plate |
System Includes: | finder scope dovetail, USB cable, hardware, 2 x hex wrenches, dust cap |
