iOptron CEM70EC2N Center Balanced Mount with RA/DEC High Res Encoders - NUC Ready - C706AN0

Out of stock
Regular price $8,489.00 CAD

Product details

  • SKU IOP-C706AN0

iOptron CEM70EC2N Center Balanced Mount
with Dual-Axis High Res Encoders - NUC Ready

  • Center Balanced mount with innovative features & amazing precision!
  • This model is NUC-ready (user supplied)
  • Mates seamlessly with an Intel NUC model with 38 mm thickness
  • Ideal for both visual observation and astrophotography
  • Maximum payload of 70 lb (31.8 kg) with the mount weight of 30 lb (13.6 kg)
  • Includes High-Resolution Optical Encoders on RA & Dec axis!
  • Easy to use quick-lock gear clutches
  • Periodic encoder error less than ±0.3 arcsecond RMS
  • Permanent periodic error correction (PPEC)
  • Precision stepper motor for precise GOTO and accurate tracking
  • Go2Nova 8407+ controller with Advanced GOTONOVA GOTO Technology and built-in heater
  • Integrated ST-4 autoguiding port
  • 32-channel Global Positioning System (GPS)
  • USB 2.0 communication port
  • Cable management system
  • 8" Losmandy D and Vixen style universal saddle
  • All metal, CNC machined with black anodized finish

The iOptron CEM70EC2N Center Balanced Mount Head proves that iOptron has done it again! Using ideas and engineering applied to a time tested design, the iOptron CEM70EC2N brings you the next generation Center Balanced Equatorial mount. An elegant CNC body is the first indicator the CEM70EC2N is a top quality mount; you will find this is true in both its form and its function. Utilizing clever engineering, they were able to provide the iOptron CEM70EC2N Center Balanced Mount with an incredible 2.33 payload-to-mount weight ratio. This heavy-duty mount can precisely GO-TO an object and track it with up to 70 lb of gear on-board, but while the Head weighs only 30 lb. An amazing feat. This is the "EC2" model, which incorporates dual-axis High-Resolution optical encoders. It provides a Periodic encoder error less than ±0.3 arcsecond RMS.

The concept of the "NUC" (stands for "Next Unit of Computing") was designed and introduced by Intel Corporation; first launched in early 2013. The NUC has since developed over ten generations. The NUC motherboard usually measures approximately 4" by 4" (10.16 cm by 10.16 cm), which tends to promote a small sized package. NUC is a line of small-form-factor barebone computer kits or custom-configured computer modules which can be structured in various ways, to satisfy a customer's specific needs. Various versions of a NUC computer are now available for purchase via the internet.

A true barebone NUC kit consist of the board, in a plastic case with a fan, an external power supply, and a VESA mounting plate. Intel will sell just the NUC motherboards, which have a built-in CPU. The user can configure the rest per their need. This does require some detailed computer knowledge. Third-party cases for NUC boards are also available.

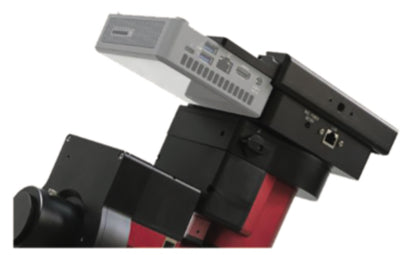

The iOptron NUC mounts feature a bracket located at the lower front position of the saddle which will securely hold the NUC mini-computer in place. They have provisions for the mount control connections (LAN and USB) and power (19 Volts or optional 12 Volts DC) located next to the NUC computer.

NOTE: This Mount does NOT include a NUC mini-computer! The user must provide and install a NUC mini-computer.

The iOptron CEM70EC2N (C706AN0) Center Balanced Mount delivers a Periodic Error of less than ±0.3 arcsecond RMS. This will give you the precision tracking you need for the best possible astro-imaging results, along with a great payload capacity and easy operation. The superb mechanical construction and choice of premium drive components for this mount provides the tracking and slewing performance you expect from iOptron. Retaining the inherent properties of the center balance design, this relatively compact medium payload mount delivers what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking (PE < ±0.3 arcsecond RMS) the CEM70EC2N is a solid tracking mount for both observers and imagers.

Large levers are included on the quick-lock drive engagement system. These levers make it easy to snap its drive gears into place even when wearing gloves. There is little chance of your cables getting snagged with the CEM70EC2's internal advanced cable management system. This iOptron CEM70EC2N Center Balanced Mount Head is the ideal, easy-to-use Center Balanced GoTo mount system for heavier telescopes or imaging systems, in the up-to 70 lb range, which will satisfy all your observing and astro-imaging needs for years to come.

A new, patent-pending Universal Self-Centering Saddle (USCS) accommodates both the Losmandy and Vixen style dovetail plates. CEM70 mounts utilize reliable stepper motor drive systems for accurate pointing and tracking. These motors have a low power-consumption technology. A 212,000+ object library with star identification, GPS, a few of the desirable features standard on a CEM70 mount.

NOTE: This product is the mount head plus one each 20 pound Counterweight, plus a Hard Case. NOTE: NO tripod or pier is included with this Head.

What's In The Boxes:

  • iOptron CEM70EC2N Equatorial Mount
  • Go2Nova 8407+ Hand Controller
  • 212,000+ Object Library with Star Identification
  • Stainless steel counterweight shaft
  • One 20 lb (9.5 kg) counterweight
  • CEM70 GPS module
  • AC adapter (100 V - 240 V) AC to DC power adapter
  • 2 coiled control Cables (6P6C RJ11 to RJ11, straight wired)
  • Serial cable (RS232 to RJ9)
  • USB cable
  • Quick Start Guide
  • Hard Case
  • iOptron subsidized "TheSky Imaging Edition"
  • NOTE: NO Tripod or Pier is included


Mount Center-balanced Equatorial Mount (CEM)
Payload* 31.8kg (70 lbs), exclude counterweight
Mount weight 13.6kg (30 lbs)
Payload/Mount weight ratio 2.33
Material All metal
Latitude adjustment range 0°~ 65°
Azimuth adjustment range ± 4°
PE (by encoders)** < 0.3 arcsec rms**
Worm period 348 sec
PEC Real-time PEC(RPEC)
Right Ascension worm wheel Φ151mm, 248 teeth
Declination worm wheel Φ151mm, 248 teeth
Worm Φ21.2mm
Right Ascension axle Φ55mm, steel
Declination axle Φ55mm, steel
Right Ascension bearings Φ80mm
Declination bearings Φ80mm
Counterweight shaft Φ28x 415 mm (SS, 1.9kg)
Counterweight 9.5 kg (20 lbs) x1
Mount base size Φ152mm
Motor drive Precision stepper motor w/128 micro-step
Resolution 0.07 arc seconds
Slew speed 3.75°/sec (900x) max.
Hand Controller Go2Nova® 8407+, 8 line 21 character LCD
Power requirement*** DC 12V, 5A (5.5mm/2.5mm plug)
Power consumption 0.6A(Tracking),0.8A(GOTO)
Polar Scope Internal electronic polar scope, iPolar
Meridian treatment Stop (0-10° pass), auto flip
Zero position Automatic zero search
Park position Horizontal, vertical, current, alt/azi input
Level indicator YES
Dovetail saddle 8" Losmandy D & Vixen
Guiding port ST-4
Communication port USB3.0
Cable management
Operation temperature range -10°C ~ +40°C
Hard case Yes
Pier/Tripod Optional LiteRoc tripod (8023ACC) or pier
Warranty Two year limited
* OTA size and length dependent.
** Measured with encoder on the bench, 348 seconds
*** Included AC adapter is for indoor use only
