iOptron CEM120EC Center Balanced Equatorial Mount With Extra High-Resolution RA-Axis Encoder
The iOptron CEM120EC Center Balanced Equatorial Mount was created by iOptron as a result of the growing demand for an accurate and stable equatorial mount with the versatility to carry larger instruments and more complex imaging arrays, with very high-performance specifications.
It offers the benefits of iOptron's revolutionary “center balanced” design: stability, accuracy, and smooth mechanical operation, while capable of carrying a payload up to 115 lb (52 kg). The “center balance” design’s natural stability is due to its focusing the mount along with any payload's weight directly over the center of the pier or tripod. The CEM120EC performance is demonstrated by its low periodic tracking error of < 0.15 arcsecond RMS for this EC model.
Along with stability, the CEM120EC Center Balanced Equatorial Mount features an advanced cable management system consisting of more ports in more locations, preventing cable tangles and reducing the chance of fractured cables. It also adds some new features to the CEM family like Wi-Fi and LAN for remote operation and easy to use, reliable clutches on both axes. This product is the CEM120EC High-Resolution mount, with a Hi-Res. Encoder on the Right Ascension (RA) axis (but not on the Dec axis).
This product's number is IOP-7301.
iOptron CEM120EC Center Balanced Equatorial Mount Features:
- A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability and advanced operating specs
- Observatory astrophotography mount ideal for both visual observation and astrophotography applications
- Payload of 115 lb (52 kg) with the mount weight of 57 lb (26 kg)
- Easy to use and reliable gear clutches
- Adjustable counterweight shaft for 0º latitude operation
- Precision altitude and azimuth adjustment
- Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
- Polar alignment routine for those who can't see the Pole Star
- Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology with built in heater
- High-Resolution Encoder on the RA Axis (only)
- Real time PEC (RPEC) for the CEM120EC High Resolution model
- Built-in 32-channel Global Positioning System (GPS)
- Built-in Wi-Fi and LAN for remote operation
- Integrated ST-4 auto guiding port

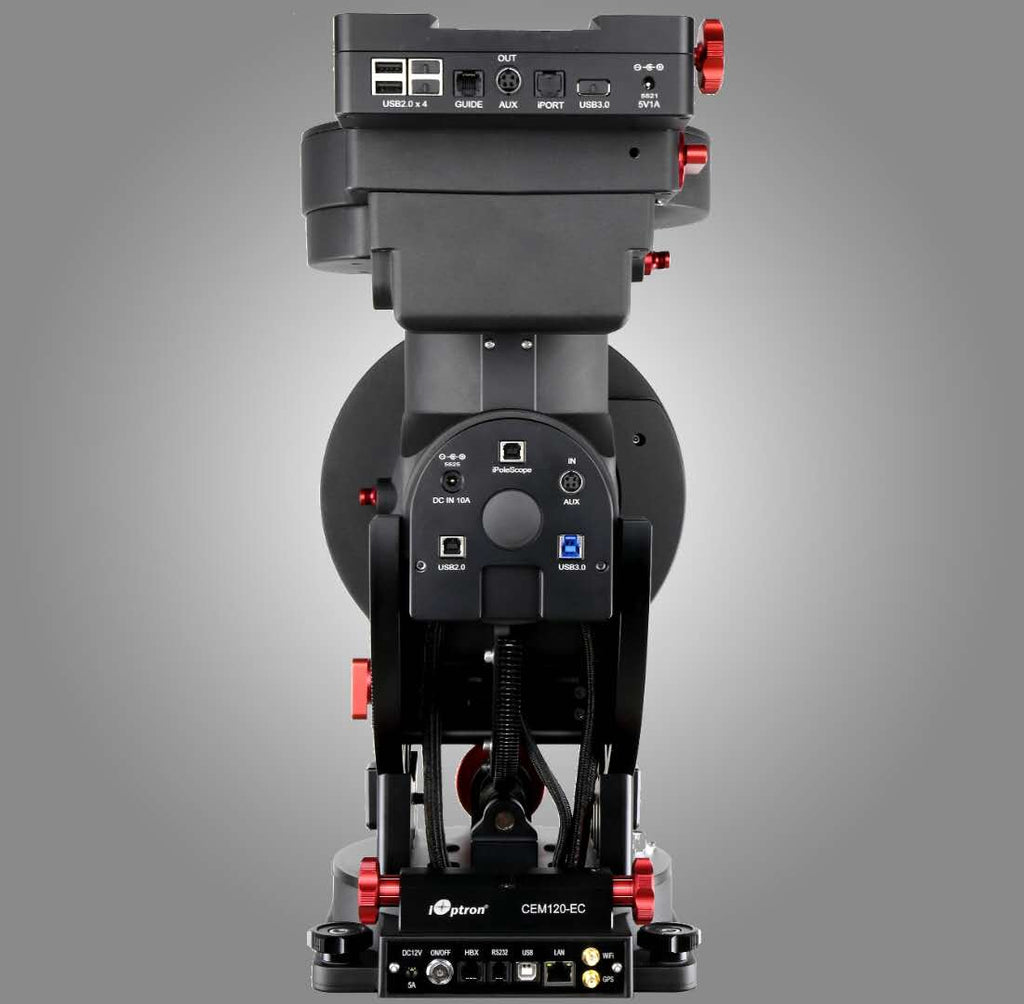

- Advanced cable management system with more choices
- Mount includes 2 counterweights (10 kg each)
- Spring loaded, individually-adjustable Losmandy-style Saddle
Specifications:
| Model: | CEM120EC |
| Mount Type: | CEM (Center balanced EQ Mount) |
| Payload (excluding CW): | 52 kg（115 lb) |
| Mount Weight: | 26 kg (57 lb) |
| Payload per Mount Weight: | 2X |
| Latitude Adjustment Range: | 0～68° (0.5 arc min divisions) |
| Azimuth Adjustment Range: | ±5° (3 arc min division) |
| Tracking Accuracy (PE): | < 0.15 arcsec RMS (CEM120EC) |
| Period: | 240 sec |
| Right Ascension Worm Wheel: | 360 teeth, Diam. 216 mm, zero backlash |
| Declination Worm Wheel: | 360 teeth, Diam. 216 mm, zero backlash |
| Worm: | Diam. 26 mm |
| Right Ascension Axle: | Diam. 80 mm, steel |
| Declination Axle: | Diam. 80 mm, steel |
| Right Ascension Bearings: | Diam. 125 mm |
| Declination Bearings: | Diam. 125 mm |
| Counterweight Shaft: | Diam. 38.1 mm x 540 mm (SS, none slip, 4.5 kg) |
| Counterweight: | 10 kg (22 lb) x2 |
| Mounting Base Diam.eter: | 210 mm x 230 mm |
| Motor: | Precision Stepper Motor w/128 micro-step |
| Resolution: | 0.07 arcsec |
| Hand Controller: | Go2Nova 8407+; 8 line 21 character LCD |
| Power: | DC 12 Volts, 5 Amperes |
| Power Consumption: | 0.7A (tracking), 1.8A (GOTO) |
| Polar Scope: | Optional internal electronic polar scope |
| Meridian treatment: | Stop (0-14° pass), flip |
| Zero position: | Automatic zero search |
| Park position: | horizontal, vertical, current, alt/azi input |
| Dovetail saddle: | Losmandy D, 17.2" (437 mm) |
| Level Indicator: | YES |
| Slew speed: | 4°/sec (960x) max. |
| PEC: | Real time PEC (for CEM120EC) |
| Guiding Port: | ST-4 |
| Serial Port: | RS232, USB, LAN, WIFI |
| GPS: | YES |
| Cable Management: | 2xDC12V (1A), DC5V(1A), 2xDC (5A), ST4, 6P6C, 4xUSB2.0, USB3.0 (powered), USB for PS, AUX |
| Pier/Tripod: | Optional Pier Available from iOptron |
