Celestron CGX-L Equatorial Mounted 925 Schmidt-Cassegrain Telescope - 12070

Celestron   ——   SKU: CEL-12070
$5,979.00 CAD
Add to cart
Product Info
Shipping

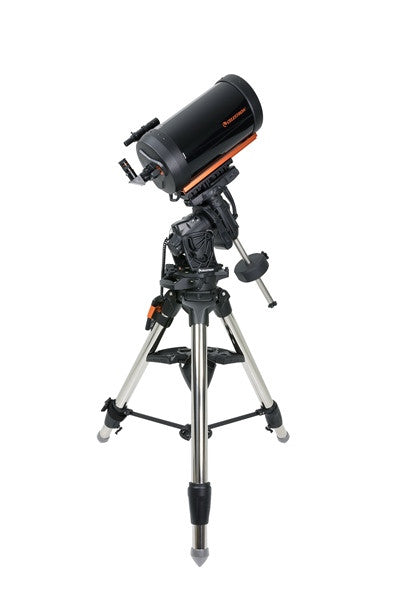

Celestron CGX-L Equatorial Mounted 925 Schmidt-Cassegrain Telescope

  • 9.25" Schmidt-Cassegrain Optical Tube Assembly
  • Aluminum Optical Tube
  • Celestron's premium StarBright XLT coatings
  • 2350mm focal length (f/10)
  • 25mm eyepiece included (94x)
  • Visual back allows for use with 1.25" accessories
  • 6x30 finderscope to help accurately find objects
  • Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
  • Includes dovetail rail compatible with CGE mount
  • Features the CGX-L Equatorial Go-To Mount and Tripod

Telescope Specifications:

Optical Design Schmidt-Cassegrain
Aperture (mm) 234.95 mm (9.25 in)
Focal Length 2350 mm (93 in)
Focal Ratio 10
Focal Length of Eyepiece 1 (mm) 25 mm (0.98 in)
Magnification of Eyepiece 1 94x
Finderscope 6x30
Star Diagonal 1.25
Optical Tube Aluminum
Highest Useful Magnification 555x
Lowest Useful Magnification 34x
Limiting Stellar Magnitude 14.4
Resolution (Rayleigh) 0.59 arc seconds
Resolution (Dawes) 0.49 arc seconds
Light Gathering Power (Compared to human eye) 1127x
Secondary Mirror Obstruction 3.35 in (85 mm)
Secondary Mirror Obstruction by Diameter 36%
Optical Coatings StarBright XLT
Optical Tube Length 22 in (559 mm)
Optical Tube Weight 20 lb (9.07 kg)
Dovetail Compatibility CGE Mount



Here are some of the new features Celestron incorporated into this mount:

  • Increased 75lb load capacity offers exceptional load capacity-to-weight ratio
  • Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
  • Larger 144mm diameter worm wheels to better and more accurately drive heavier loads
  • Longer 270mm dovetail saddle to better support larger optical tubes
  • Massive 70mm stainless steel tripod legs with a wider stance for improved stability under heavy loads
  • New accessory tray holds three 1.25” and two 2” eyepieces with an upright stand for holding your smartphone or tablet
  • Heavy duty, 31.5mm stainless steel counterweight shaft to support additional counterweights
  • Optional add-on polar axis finderscope custom designed for CGX and CGX-L
  • Supports WiFi and wireless operation (optional) accessories such as StarSense AutoAlign and SkyPortal WiFi Module (these items are sold separately)
  • Compact, lower profile equatorial head provides improved stability and portability. Sturdy and more rigid, with quicker dampening time
  • Improved motors provide more torque, better slewing and tracking under heavy loads
  • Heavy duty belt-drive system minimizes backlash while providing smooth motor operation at full capacity
  • Clear windows built into motor covers so pulleys and belts can be monitored
  • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear meshing
  • Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags
  • Internal hard stops for both axes prevent cable tension and tripod strike
  • Internal optical sensors on both axes for simple and safe remote operation
  • Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
  • Limit sensors automatically shut off slewing or tracking before reaching the hard stops (fail safe)
  • Includes Celestron's new PWI telescope control software, co-developed by PlaneWave Instruments. Software features multi-point mount modeling for extremely precise pointing accuracy
  • Software Polar Align: “All-Star Polar Alignment” allows quick and very precise polar alignment. Align on any bright named star without extra polar alignment accessories, apps, or other assistance

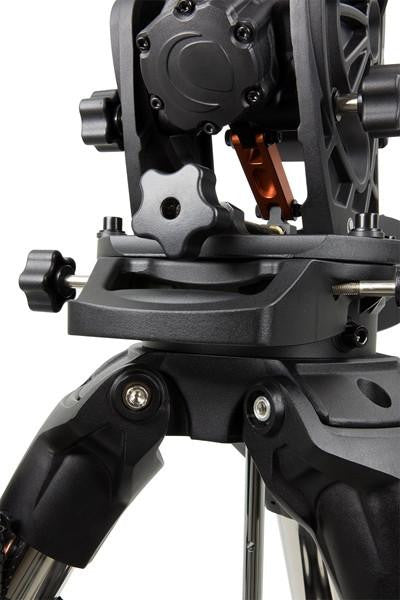

  • Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3º-65º latitude range
  • Dual-fit Vixen/CG-5 and Losmandy/CGE dovetail saddle
  • +20º of additional tracking past the meridian on either side
  • Redesigned tripod has a widened stance for added stability. The minimum tripod height has also been lowered; Tripod legs can be collapsed with accessory tray installed for faster setup and transport
  • Integrated handles for easy transport and portability
  • All-new ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads. Stationary latitude knob with a newly-designed linkage system greatly reduces the amount of friction when polar aligning the mount. Redesigned azimuth adjustment with low-friction Teflon bearings to make adjustments easy under full load. No more binding or rough adjustments!
  • Includes an easy-to-read latitude scale

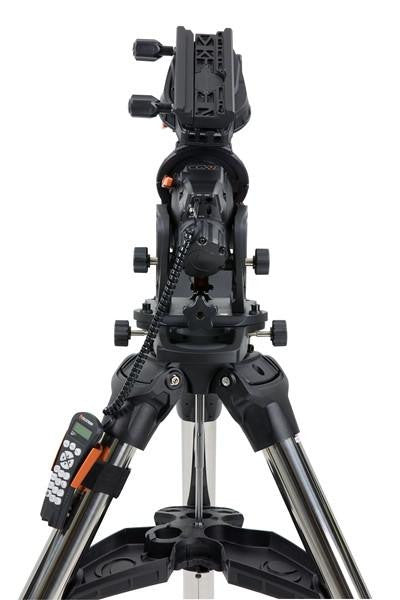

Celestron's newly designed CGX-L Computerized Equatorial mount is the latest addition to their fully computerized equatorial mount series. Capable of carrying Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

Key design goals included larger 144mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition, mechanical and ergonomic improvements throughout make the mount sturdier, easier to use, and easier to transport. This new mount is COMPACT. ERGONOMIC. and highly INNOVATIVE.

ELECTRONICS:

  • NexStar+ hand control with USB port
  • USB 2.0 port used to connect directly to PC with PWI Software
  • 2 available autoguider ports for optimum cable management
  • PEC sensor and PPEC ready
  • Threaded 12VDC power input barrel connector
  • Internal Real Time Clock (keeps time and site information saved)
  • On/Off rocker switch with red LED

Mount Specifications:

Mount German Equatorial
Instrument load capacity 75 lb
Tripod height adjustment range 35.75” to 52.75”
Tripod leg diameter 2.75"
Latitude adjustment range 3º-65º
Tripod Weight 46.2 lb
EQ Head Weight w/o Counterweight Shaft 47 lb
Total EQ Head Weight 52.6 lb
Max Slew Speed 4º/second (3º/second is default)
Tracking Rates Sidereal, Solar and Lunar
Number of Auxiliary ports (for hand control and accessories) 4
Autoguide port Yes
USB Port Yes
Software PWI Telescope Control Software
Included Items:
CGX-L Equatorial Head
CGX-L Tripod
Accessory Tray
1 x 22 lb Counterweight
NexStar+ Hand Control
DC Power Cable (plugs into cigarette lighter socket)
8 mm Allen Wrench (contained in rear carry handle)
