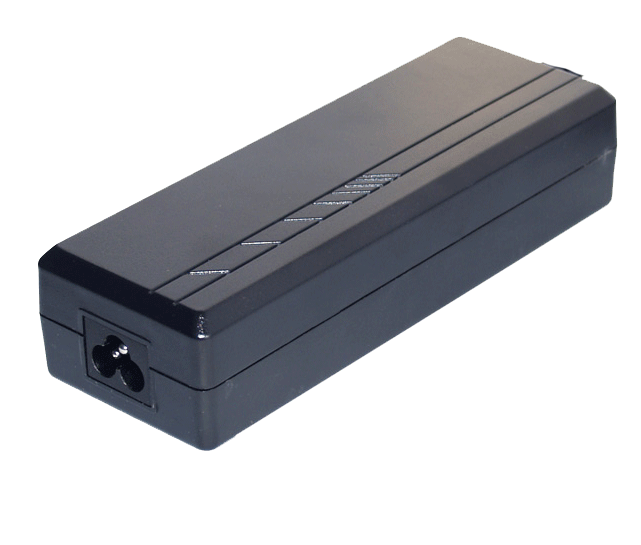

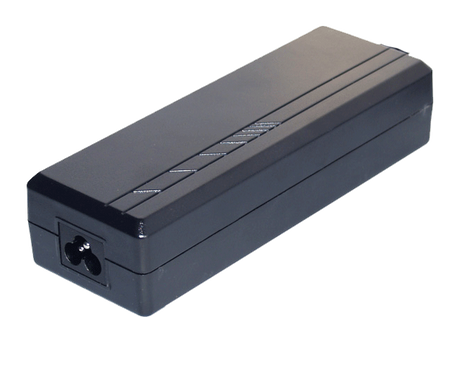

Pegasus XT60 12V 10A Power Supply Unit - PSU-XT60

The Pegasus Astro sealed and certified switching power supply unit with an XT60 connector is the perfect match for Pegasus Astro products, including the Ultimate Powerbox version 2 or 3. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a power cord (1.5m).

Safety Features

• Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
• Over Voltage: The power supply will be auto recovered when faults remove
• Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
• No Load protection: The power supply is provided with no load operation to prevent the power supply and system from damage.
• Protection class I, (ITU-T K.21 Surge 6KV on request)

Specifications

• Output Voltage:  12.5V
• Loading:  0-10 Amps
• Maximum Power:  120 Watts
• Input Voltage Range:  90-264V
• Frequency:  (47-83)Hz

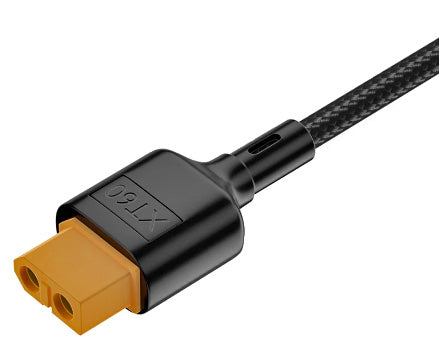

• Connector Size:  XT60

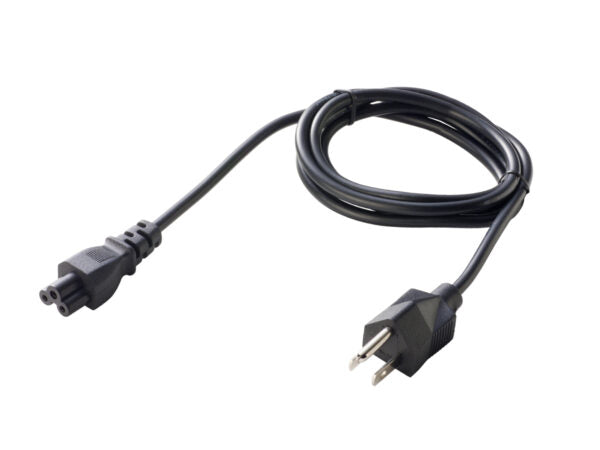

• Cord Length:  150cm (5 Feet)
• Sealed/Protected Enclosure:  Yes
• Efficiency Level (ErP):  VI
• Dimensions in mm:  169 x 61 x 39
