ZWO M54 Filter Drawer for 2" Mounted Filter - Gen II - FD-M54-II

Product Description

The Gen II M54 Filter Drawer with 20mm ring design is independently developed by ZWO and specifically made to match with the full-frame cooled camera ZWO ASI6200, ASI2400 or ASI2600MC Duo.

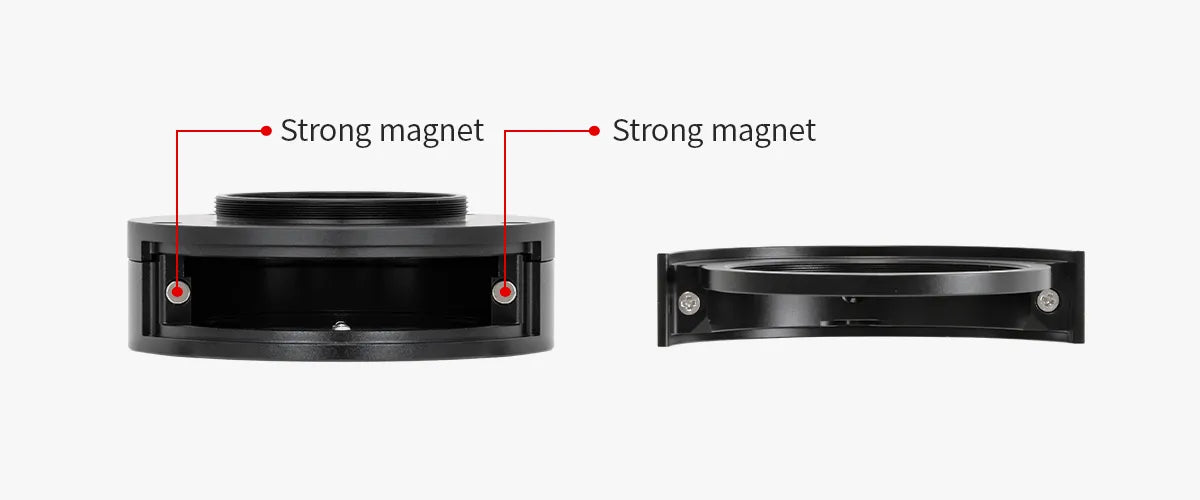

With the ability of double strong magnetic absorption, it is more convenient and much easier to install or pull out the filter. There is a lock screw on the side of the M54 filter Drawer. The locking function is helpful on adjusting the tension to eliminate the gap, which is a double insurance for users.

• Diameter 70mm * Thickness 20mm
• M54 * 0.75 male (external) thread (camera side)
• M48 * 0.75 female (internal) thread (filter end)
• M54 * 0.75 female (internal) thread (telescope side)
• Suitable for 2-inch astronomical filters and full frame cameras, such as ASI2600MC Duo, ASI6200 and ASI2400 series.

Please Note:  This is the second generation rendition of the M54 Filter Drawer for 2" Filters.  It is not compatible with the old filter holders, and the old filter holders are not compatible with the new filter drawers.  The proper filter holder for this product is the F-HLDR.
