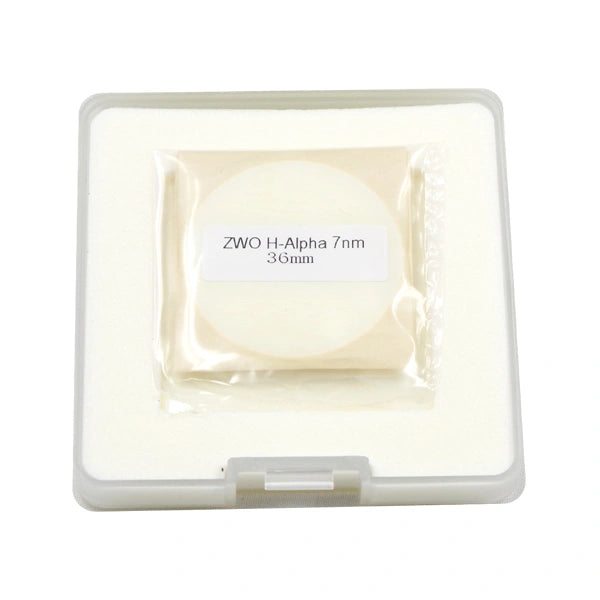

ZWO 36 mm H-Alpha 7nm Narrowband Filter - Ha7nmD36

Out of stock
SKU: ZWO-HA7NMD36
Regular price $228.00 CAD

Product details

  • SKU ZWO-HA7NMD36

The ZWO H-Alpha filter has a bandpass of 7nm and passes light at the 656nm wavelength, with a light transmission rate of up to 80%. This is the best choice for a narrowband H-alpha astrophotography filter if you are doing high-contrast imaging and want to reveal rich details of the nebula even in areas with strong light pollution.

This ZWO Ha 7nm Filter has a diameter of 36 mm and comes unmounted.  You can use it in 36 mm filter wheels.

Do not use this filter for viewing or photographing that Sun; eye and/or equipment damage could occur.

How to Use the ZWO Hydrogen-Alpha (Ha) 7nm 36 mm Filter...

  • A Hubble look can be made by the combination of H-alpha, OIII-CCD and SII-CCD, such as the famous “Pillars of Creation” (M16 Eagle Nebula)
  • Narrowband imaging with SHO set (H-alpha, OIII-CCD and SII-CCD) can be done with the moon in the sky so your equipment is not sitting dormant until the next new moon.
  • An H-alpha filter is the first narrowband addition to an LRGB set for most imagers who want to blend a black-and-white Ha image into RGB data to enhance structural detail while maintaining natural look.

Specifications

  • Size: 36 mm Diameter
  • Thickness: 2 mm
  • Mounted: No, comes unmounted
  • FWHM:7±0.5nm
  • Fine-optically polished to ensure accurate 1/4 wavefront over the both surfaces
  • About 90% transmission at H-alpha line 656nm
  • Infrared wavelength 700-1100nm cut-off
  • <0.1% transmission of off-band, OD3 (Optical Density)
