Wanderer Cover V4-EC IR Motorized Flat Panel & Dust Cover with IR Remote Controller - 125 mm - WMFP4-125IR

In Stock
SKU: WAN-WAN-WMFP-125IR
$535.00 CAD

Product details

  • SKU WAN-WAN-WMFP-125IR
Description

* In addition to ASCOM and INDI compatibility, WANDERER COVERS also supports control via ZWO ASIAIR PLUS and any device capable of supporting a DC switch!

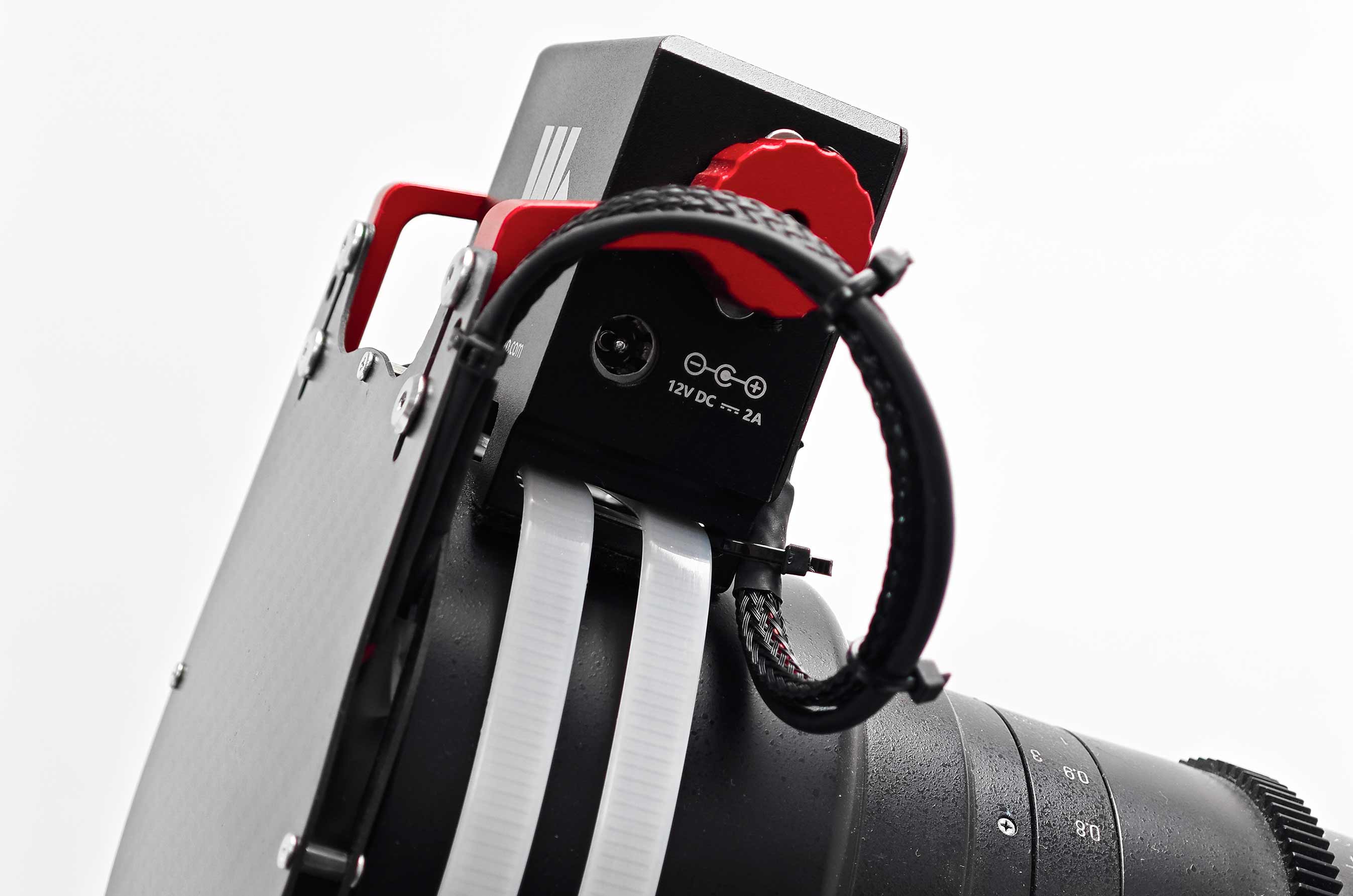

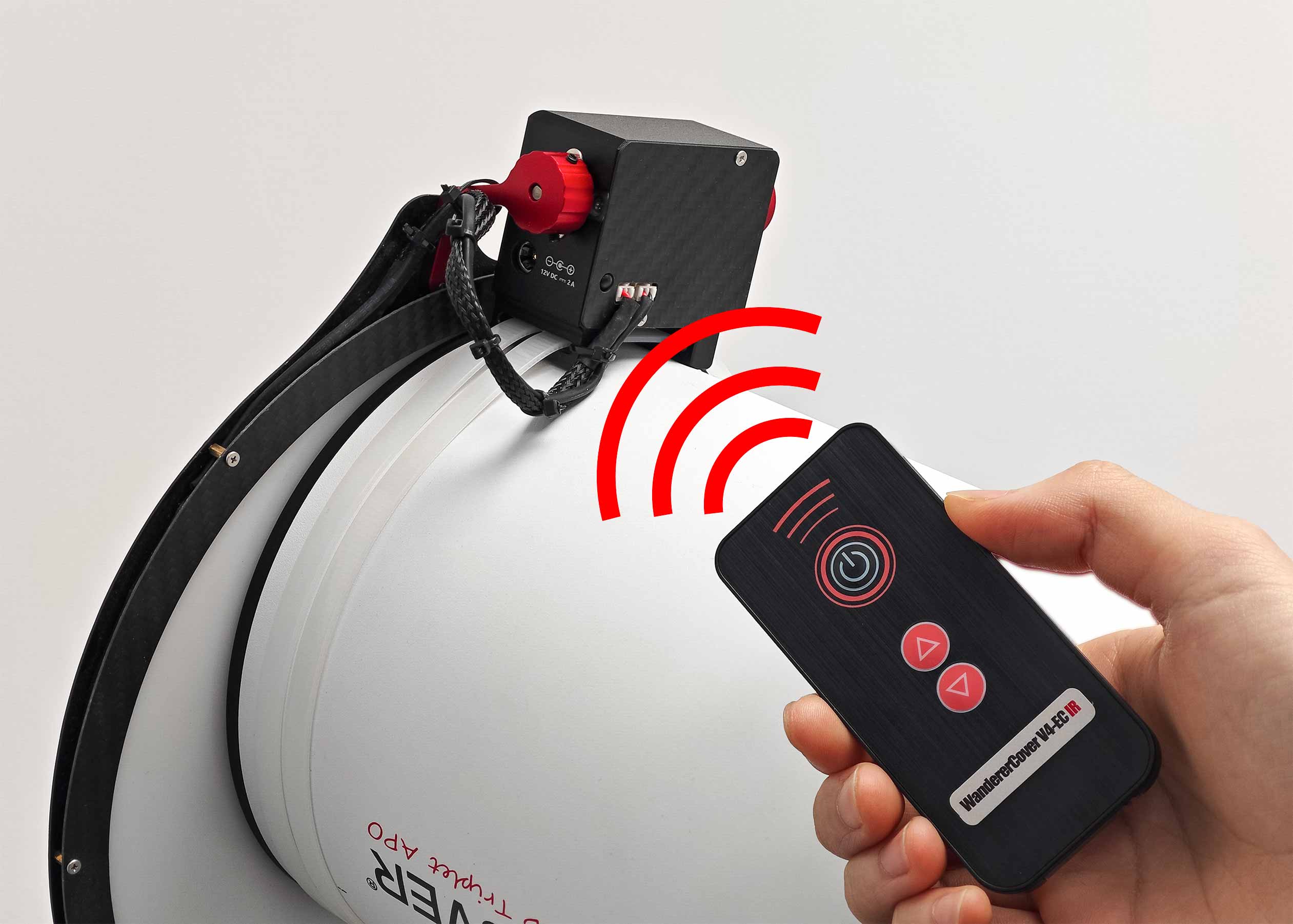

The EC-IR version of the 125 mm Wanderer Astro Motorized Flat Panel & Cover is only different from the EC (non-IR) version in that it includes an infrared remote control.  This IR remote allows you to control your WandererCover without touching the motor box, and is perfect for field or ASIAIR use.   Only a single 12V power cable is required—no need to connect a USB cable if not controlling it using ASCOM, simplifying your field setup.

The video below is a great primer on the motorized flat panel.  Just remember that if you buy the IR model, you will also get the remote controller, which is not shown on this video.

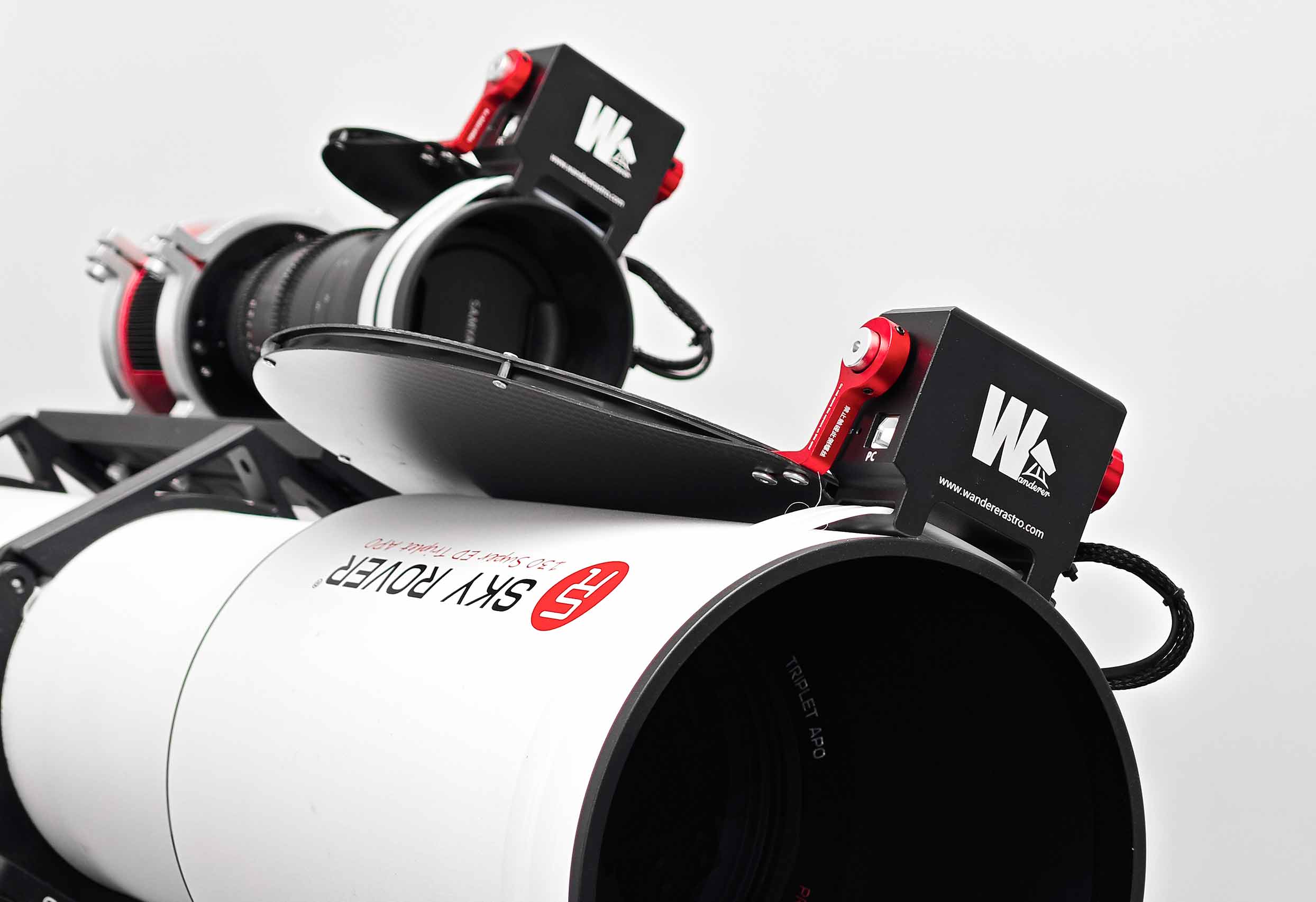

Wanderer Astro Motorized 125 mm Flat Panel & Cover Highlights

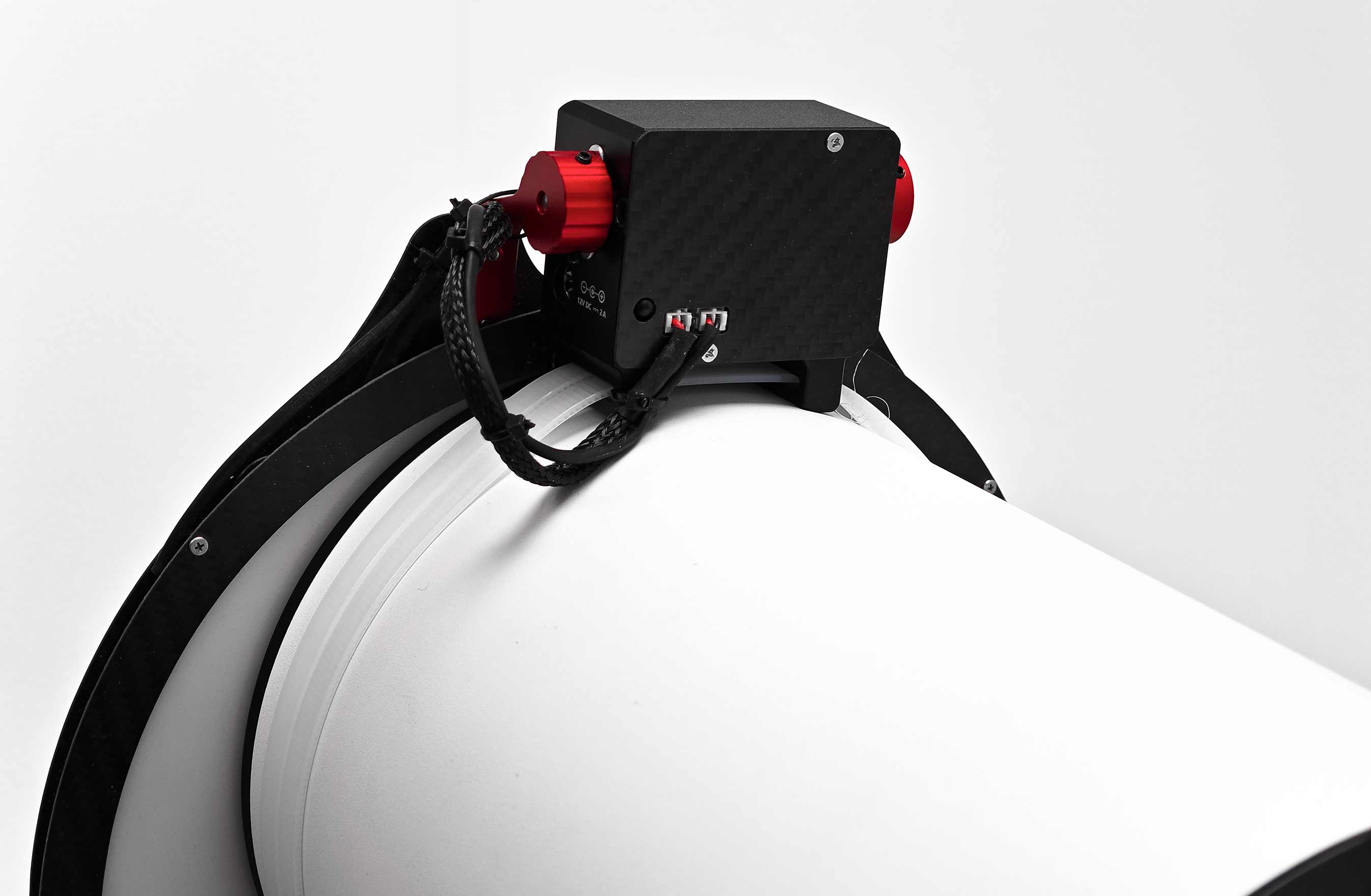

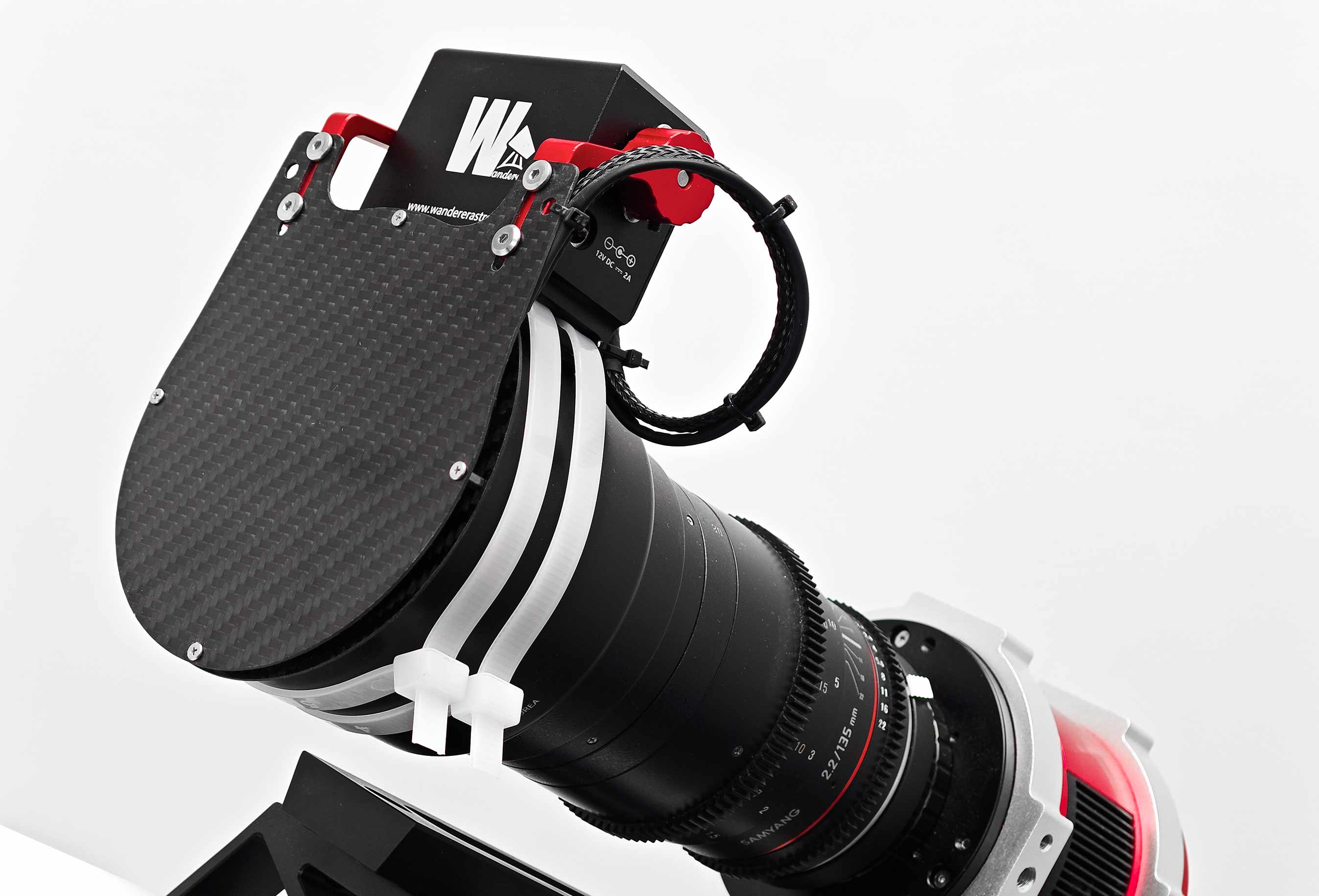

Exclusive cable management solution prevents damage to power cables during operation; Soft cushioning pads protect your telescope from scratches, and the kit includes cable ties for universal installation.

A built-in micro-encoder provides real-time, accurate feedback on the position of the cover, allowing users to remotely check the angle status without opening the monitoring camera. Repeat positioning accuracy of up to ±0.25 degrees ensures precise open/close operations every time. Customizable opening/closing at any angle.

Version 4 of the Wanderer EC-IR Flat Panel & Cover features a motor with over 50% increased load capacity, ensuring durability and preventing gear box failure. Designed to withstand low temperatures, it operates reliably even in winter conditions as low as -20°C! The life of WandererCover V4-EC exceeds 3,000 opening and closing cycles.

 In humid areas, dew will occur on the flat panel at night. If the dew does not evaporate before the cover is closed, it will can make the inside of the telescope damp and possibly encourage mold growth, and of course no one wants that!

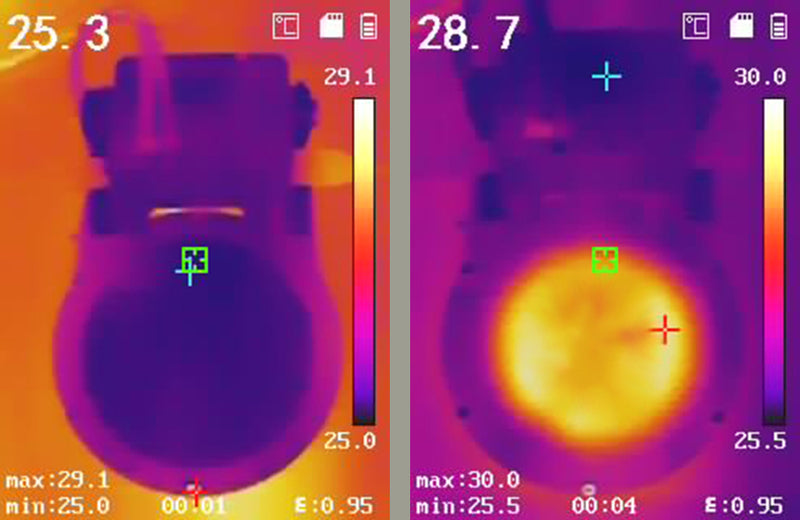

To solve this potential problem, the V4-EC has built-in heating elements to keep the cover dry all night or quickly evaporate dew in the morning. The dew heater can be controlled in NINA advanced sequence using the plugin "Device Actions and Commands".  The user manual discusses this more fully.

Thanks to the encoder, V4-EC provides automatic detection of the open and closed position. While it is always best to get a visual on the position of your panel, especially when shutting down for the night, if your device is not nearby and manual setting is not possible, the WandererCover can automatically detect obstacles and set the open and closed position.

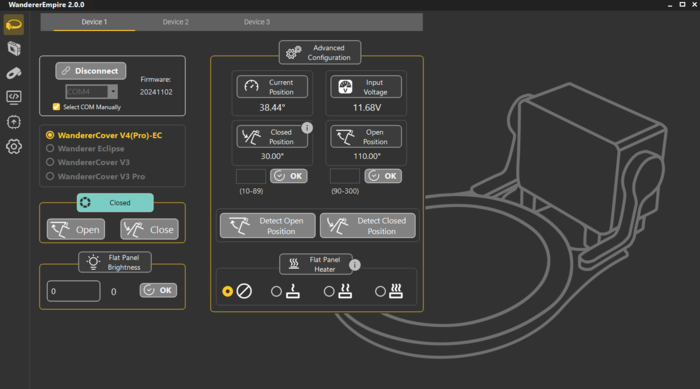

The ASCOM driver supports automatic or manual port selection and the connection of up to 6 devices simultaneously.

The dimming controller boosts PWM dimming frequency by 100%, effectively reducing the occurrence of banding and ensuring no banding during exposures of 0.1 seconds or longer. 255-level dimming meets the flat-field shooting needs, from color cameras to narrowband imaging. At maximum brightness, capturing 3nm narrowband only takes around 1 second!

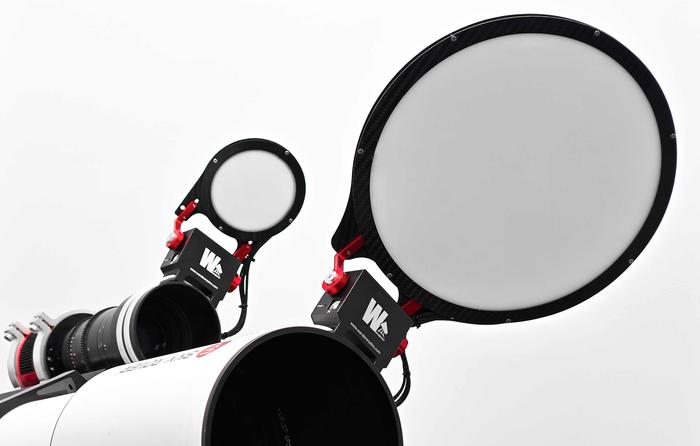

Keep in mind that the luminous panel diameter should be equal or greater than the outer diameter of the telescope's dew shield or optical tube, if no dew shield will be used. Â
