Wanderer Box Pro V3 Multi-Functional Power Distributor & USB3.1 Controller - WBX3-PRO

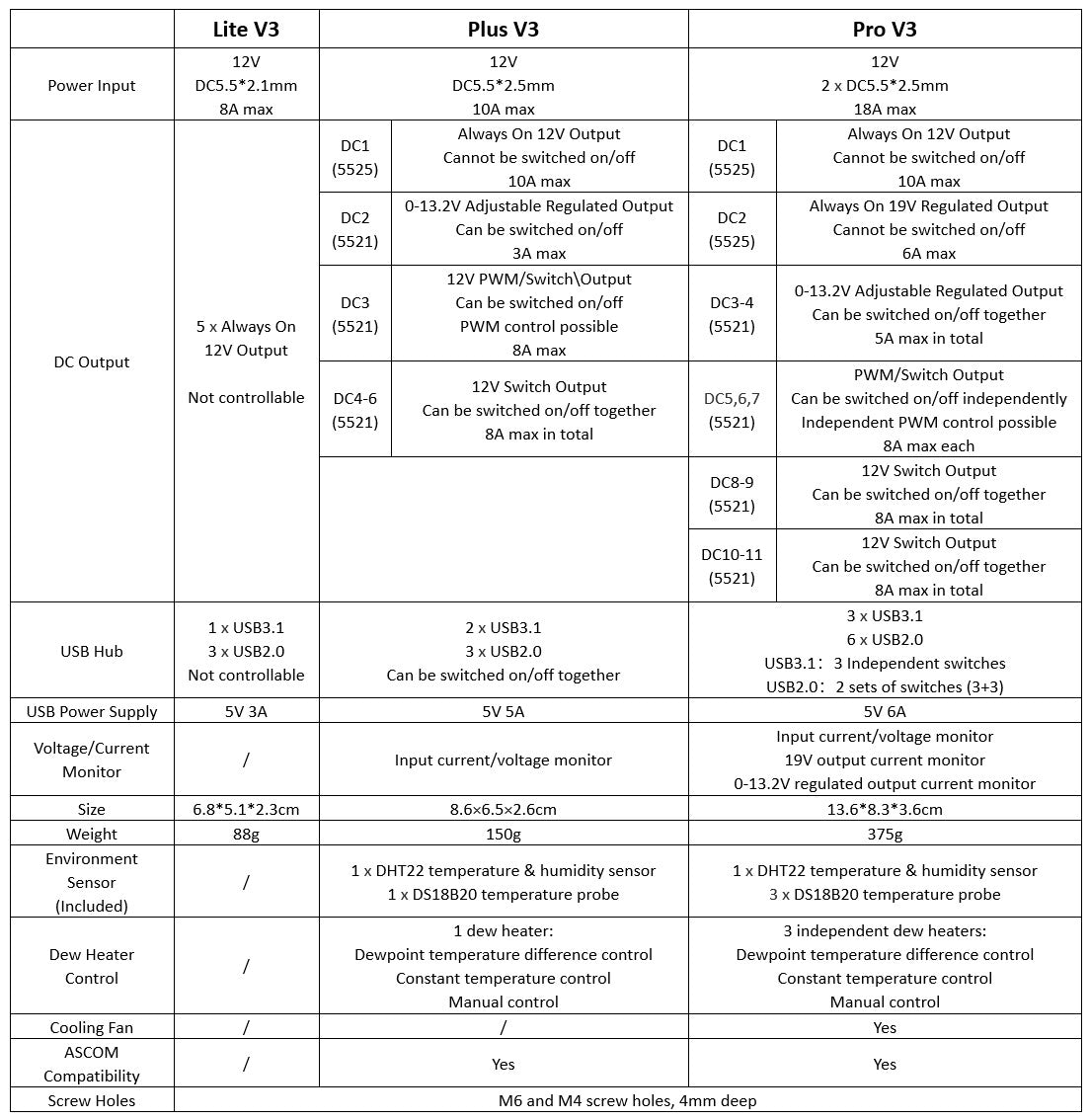

The WandererBox Pro V3 Multi-Functional Power Box & USB3.1 Controller is quite a step up from its little brothers, the the Lite V3 & Plus V3! Here is a list of the ports & other features on this  functionality-filled power box, with some extra info on each:

• Input: 12V DC 5.5*2.5mm, 18A max

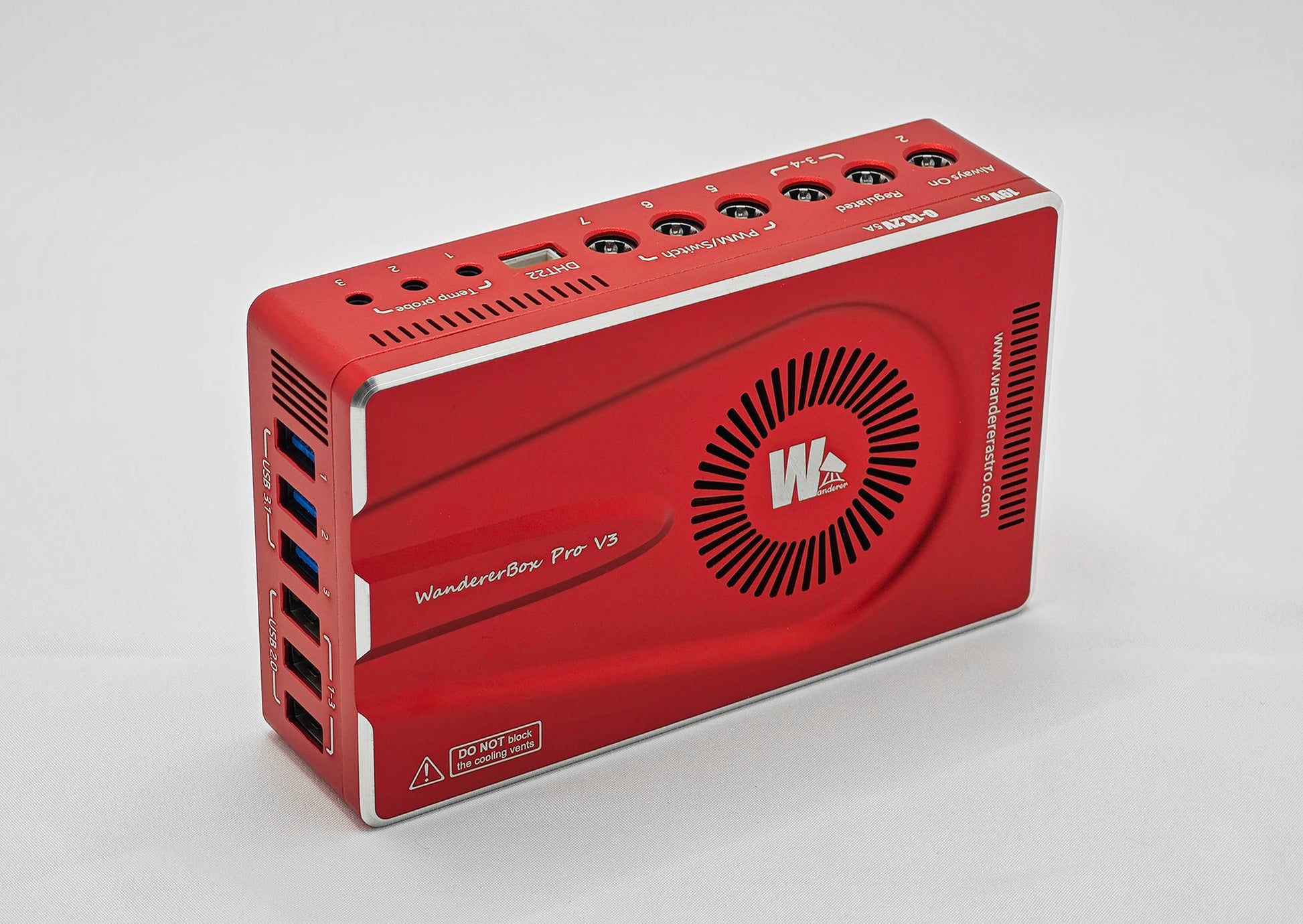

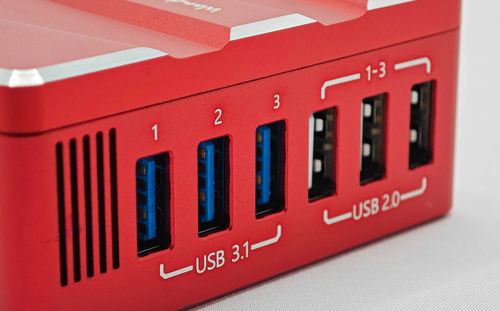

• Output: Three independent USB3.1 switches that can be used to connect a camera for high-speed readout

• Output:  Six USB2.0 ports (two sets of 3 switches) that can be used to connect other devices, such as equatorial mounts, WandererCovers, etc.

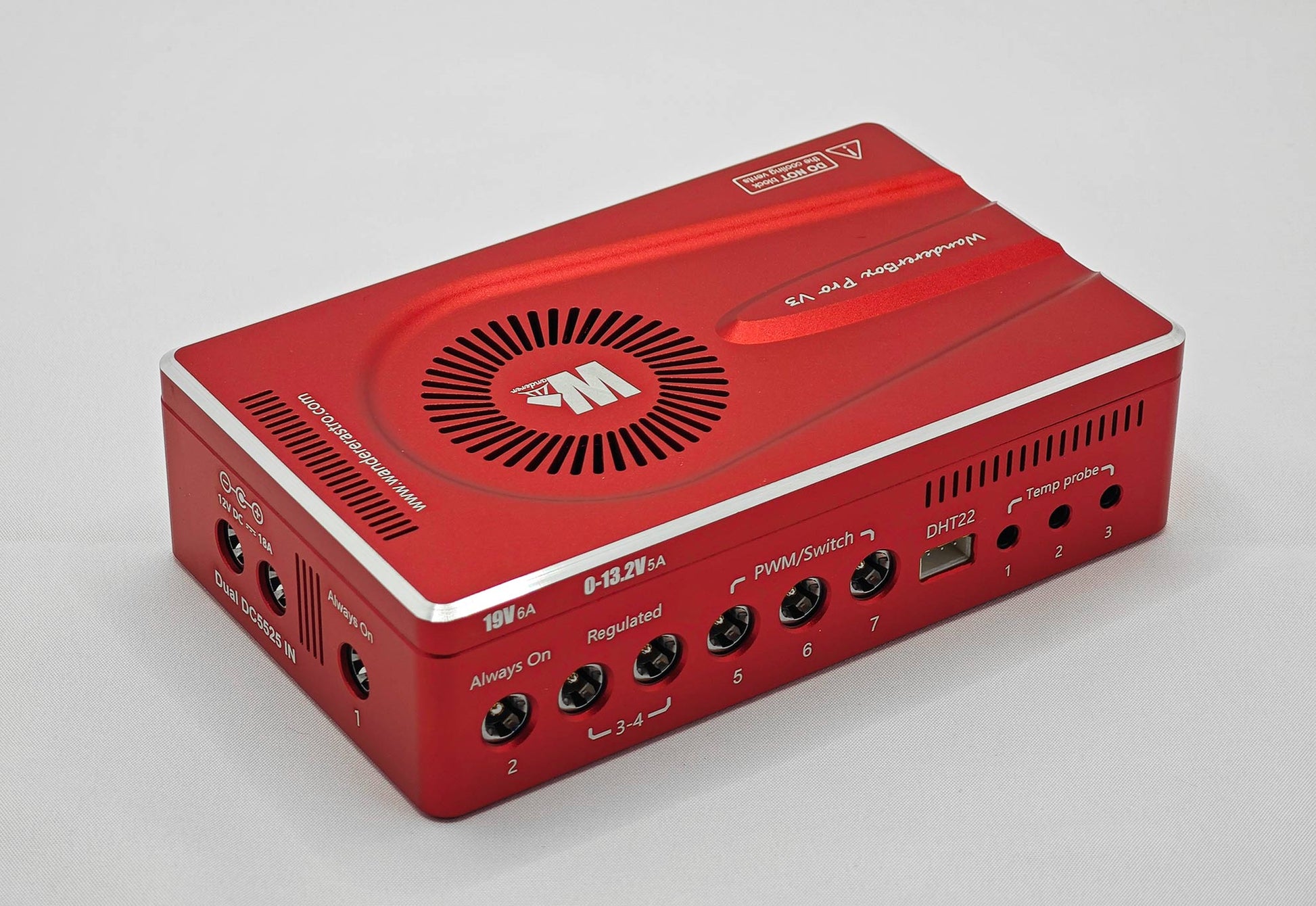

• DC Output 1 (5525) - Always on 12V, cannot be switched on/off, 10A max

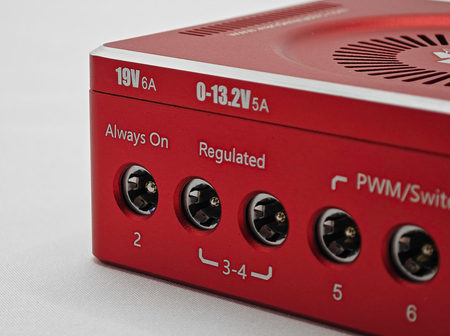

• DC Output 2 (5525) - Always on 19V regulated output.  Cannot be switched on/off.  6A max

• DC Output 3, 4 (5521) - 0-13.2V Adjustable Regulated Output.  Can be switched on/o0ff together.  5A max in total

• DC Output 5, 6 & 7 (5521) - PWM/Switch Output. Can be switched on/off independently.  PWM control possible. 8A max each

• DC Output 8 & 9 (5521) - 12V Switch Output.  Can be switched on/off together.  8A max in total

• USB Power Supply - 5V, 6A

• Voltage/Current Monitor:  Input current/voltage monitor, 19V output current monitor & 0-13.2V regulated output current monitor

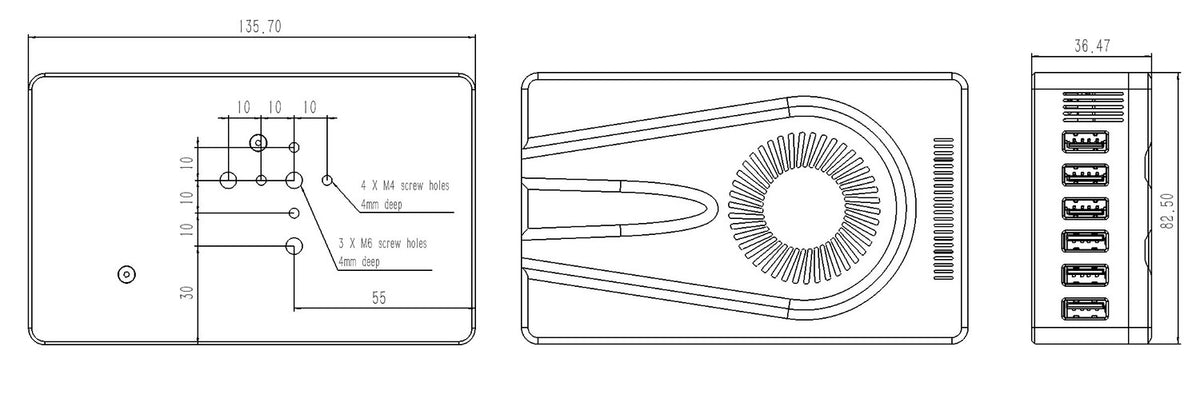

• Size: 13.6 x 8.3 x 3.6 cm

• Weight: 375g

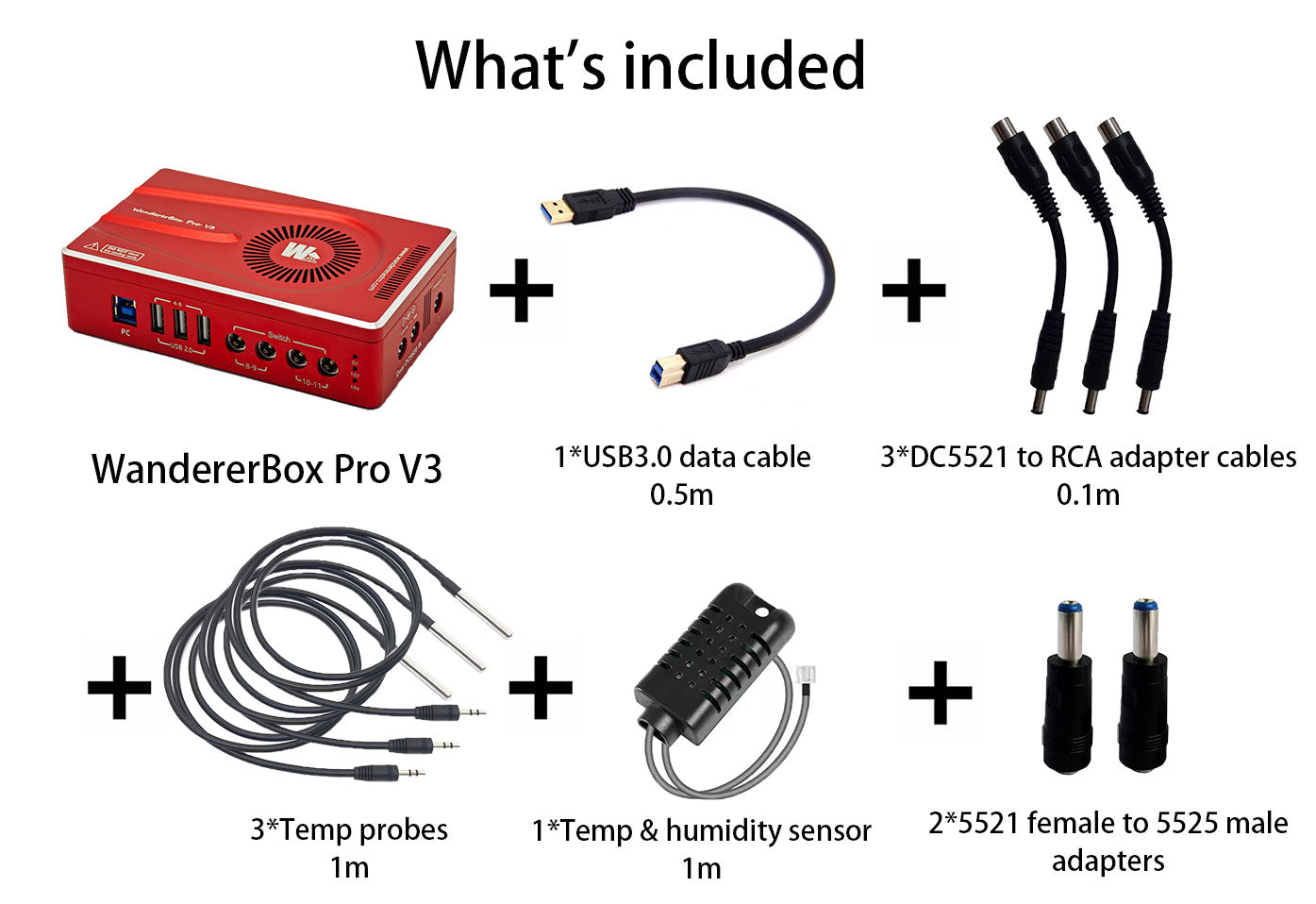

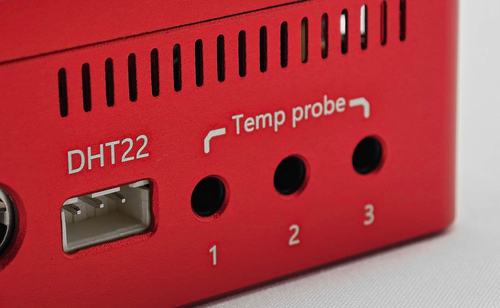

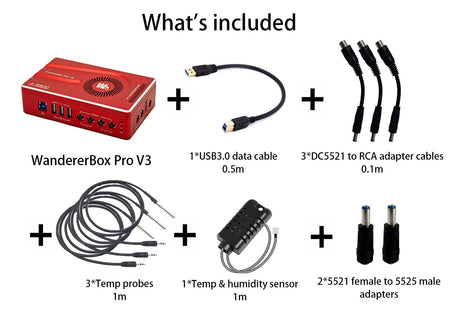

• Environmental Sensors (Included): 1 x DHT22 Temperature & Humidity Sensor, 3 x DS18820 Temperature Probe

• Dew Heater Controller: Controls 3 independent dew heaters. Chose between dewpoint temperature control, constant temperature control and manual control

• Indicator Light:  19V, 12V & 5V

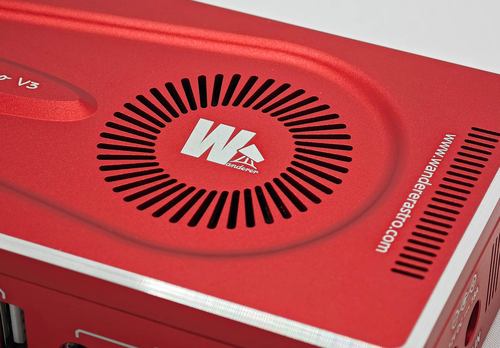

• Cooling Fan: Yes. Magnetic levitation fan.  Will only run when 19V or 5-13.2V port is under high load.

• ASCOM Compatibility: Yes

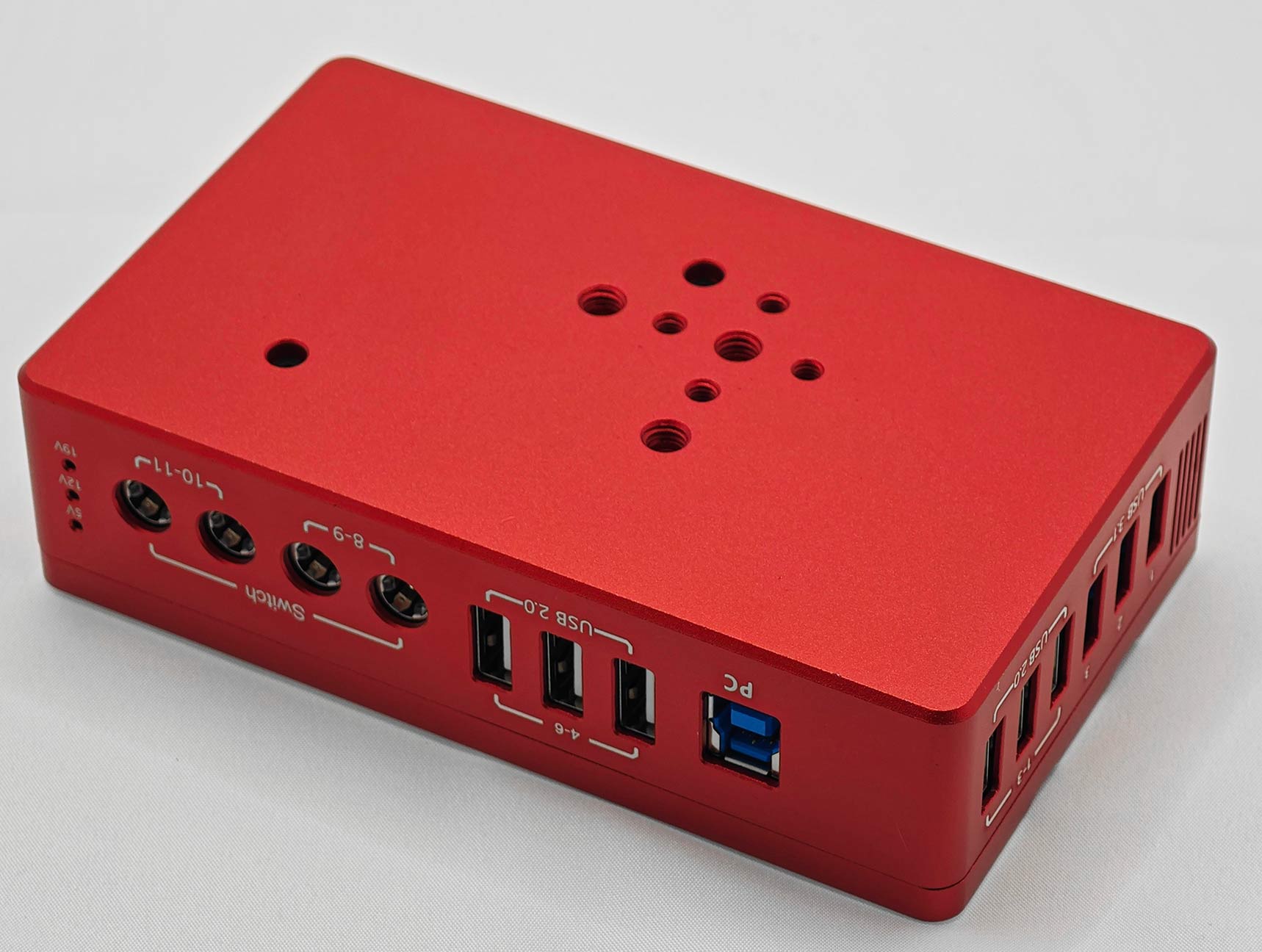

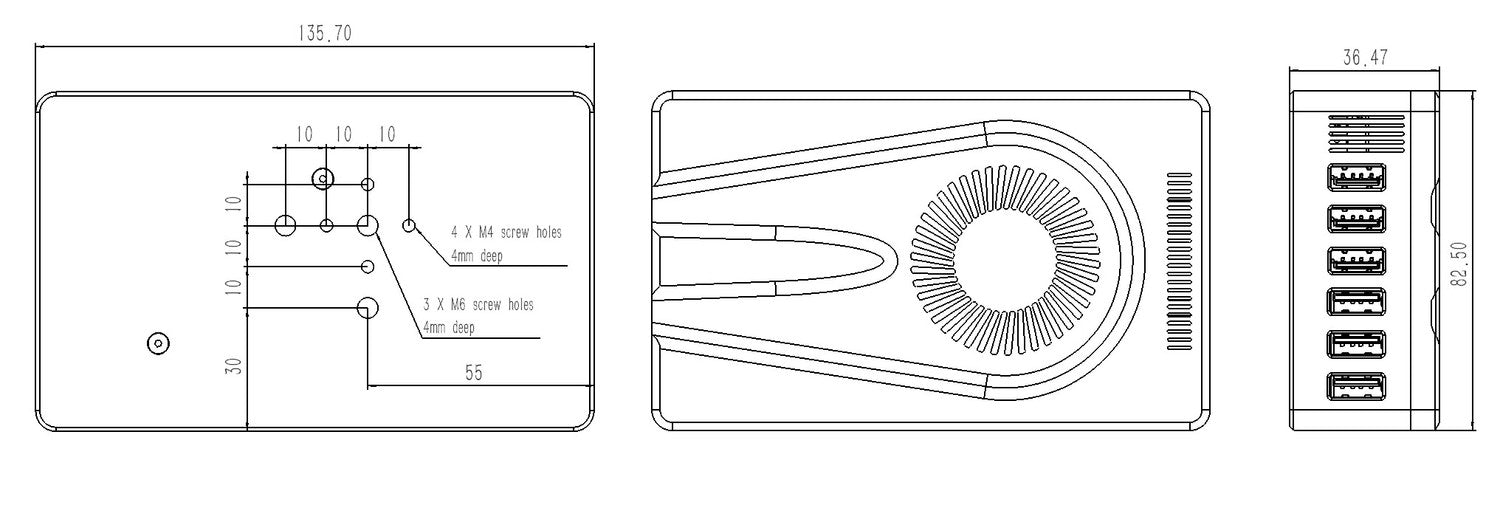

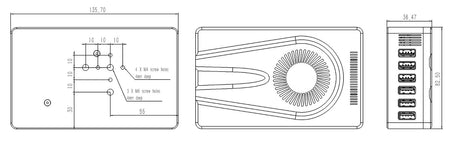

• Screw Holes: M6 x 3 & M4 x 4, 4mm deep

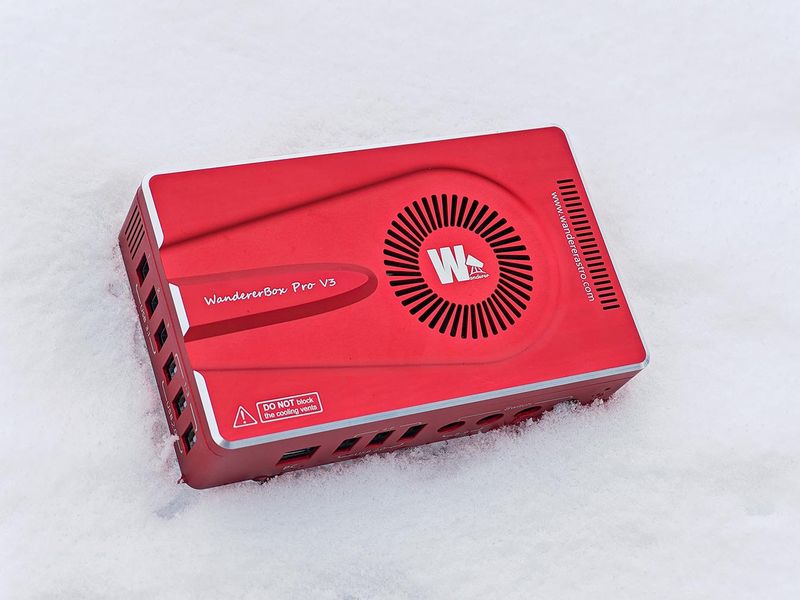

• Low temperature resistance to -25ºC

• Electrophoresis protection

• Short circuit protection

• Overcurrent protection

• Electrostatic protection

**All USB output ports share a 5V 6A power supply capacity, which can power a USB dew heater.
