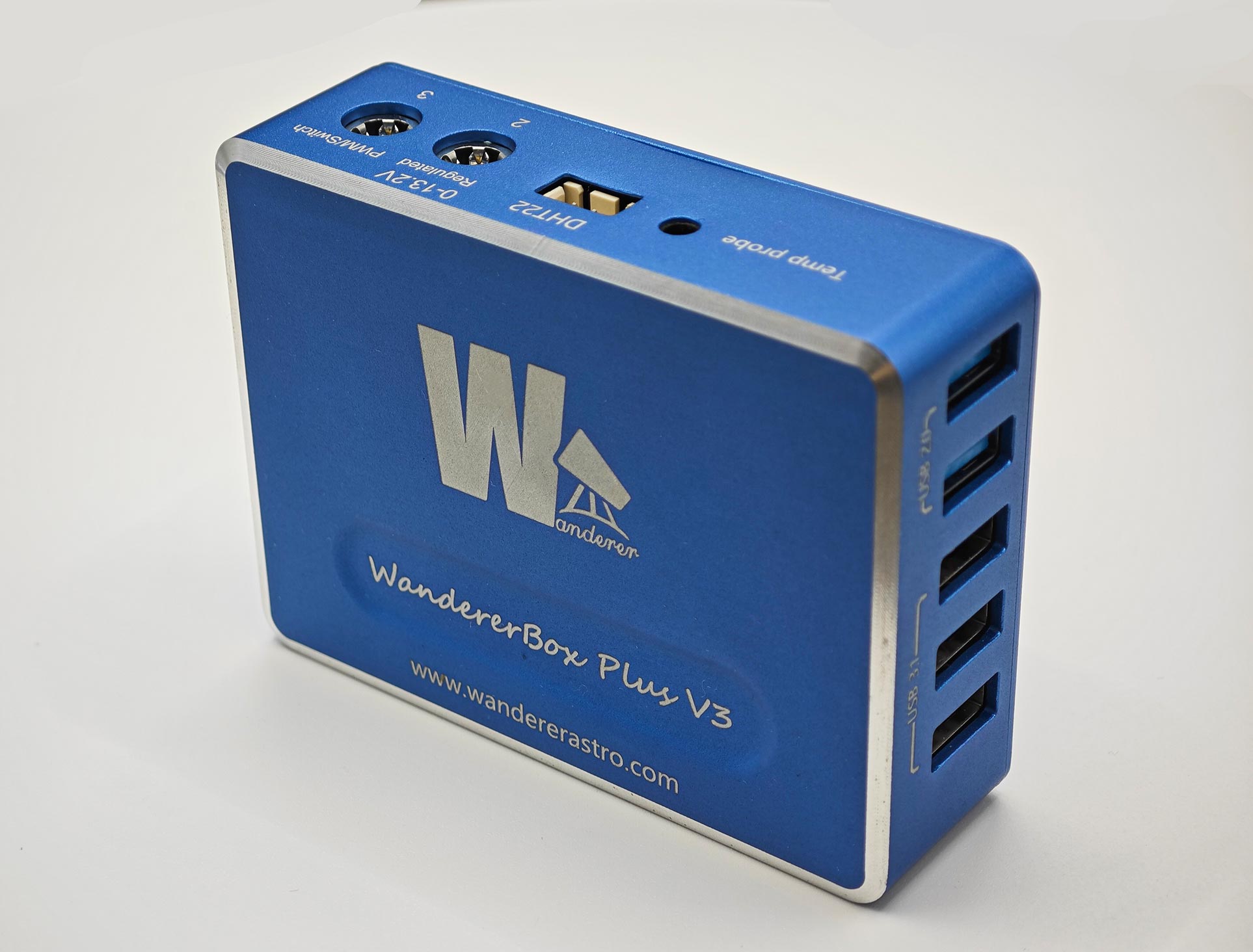

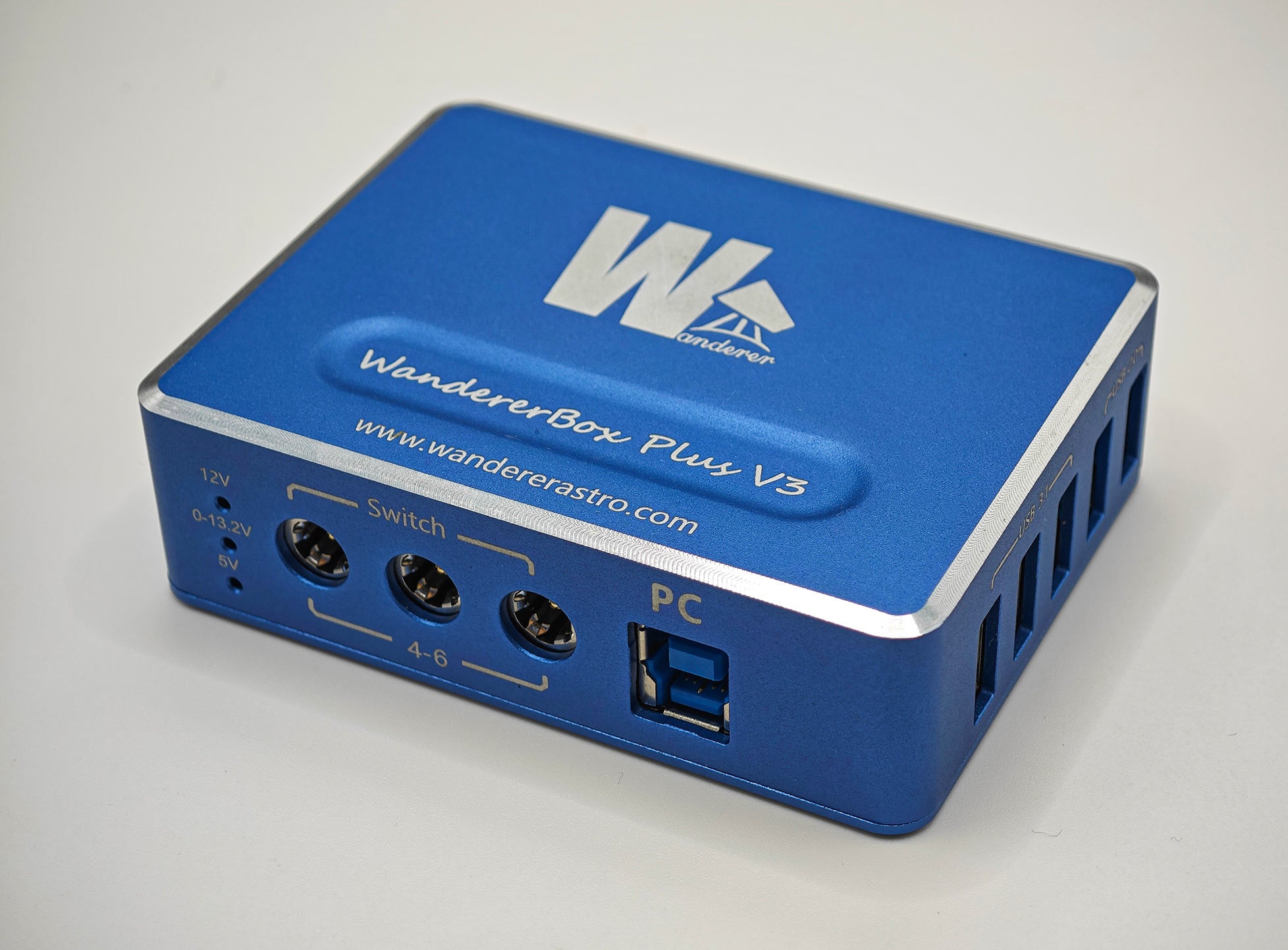

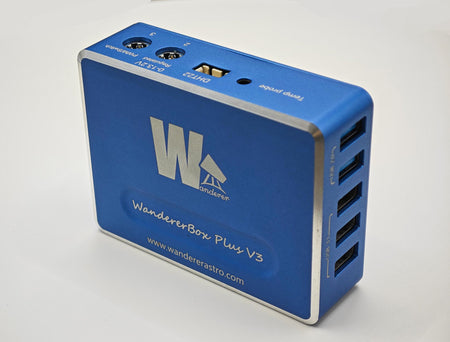

Wanderer Box Plus V3 Multi-Functional USB3.0+DC Controller - WBX3-PLUS

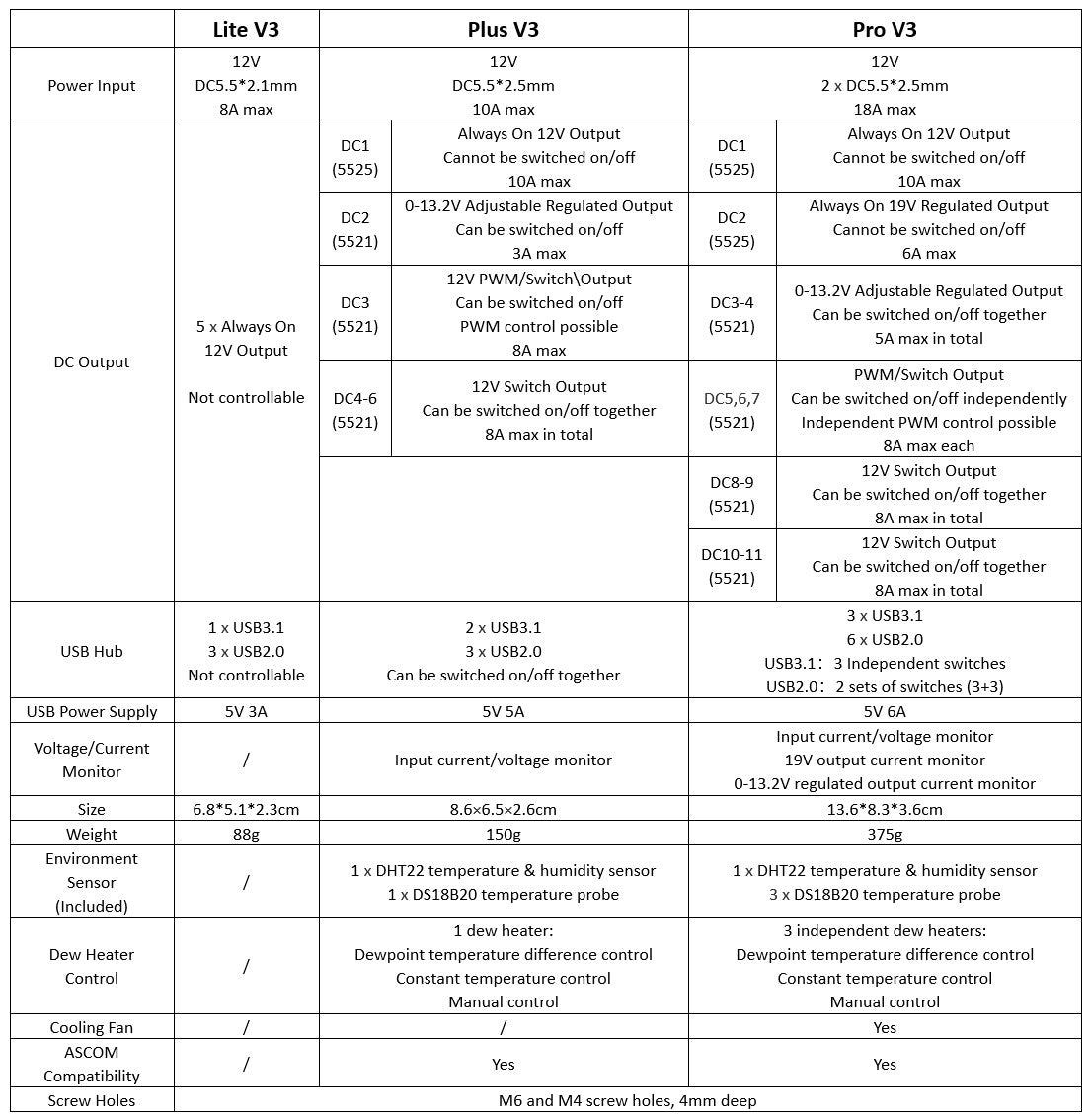

The WandererBox Plus V3 Multi-Functional Controller is quite a step up from the Lite V3! Here is a list of the ports on this portable little box, with some extra info on each:

• Input: 12V DC 5.5*2.5mm, 10A max

• Output: Two USB3.1 ports that can be used to connect a camera for high-speed readout

• Output:  Three USB2.0 ports that can be used to connect other devices, such as equatorial mounts, WandererCovers, etc.

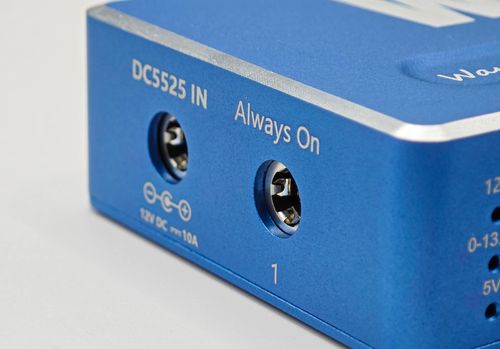

• DC Output 1 (5525) - Always on 12V, cannot be switched on/off, 10A max

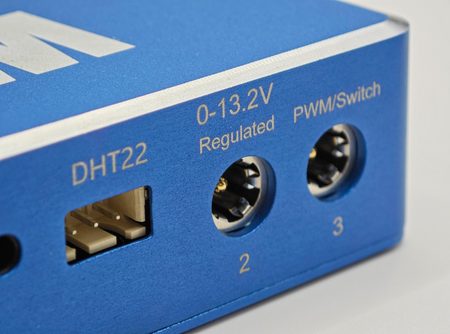

• DC Output 2 (5521) - 0-13.2V Adjustable Regulated, can be switched on/off. 3A max

• DC Output 3 (5521) - 12V PWM/Switch/Output. Can be switched on and off. PWM controll possible, 8A max

• DC Output 4, 5 & 6 (5521) - 12V Switch Output. Can be switched on/off together. 8A max in total

• USB Power Supply - 5V, 5A

• Input current/voltage monitor

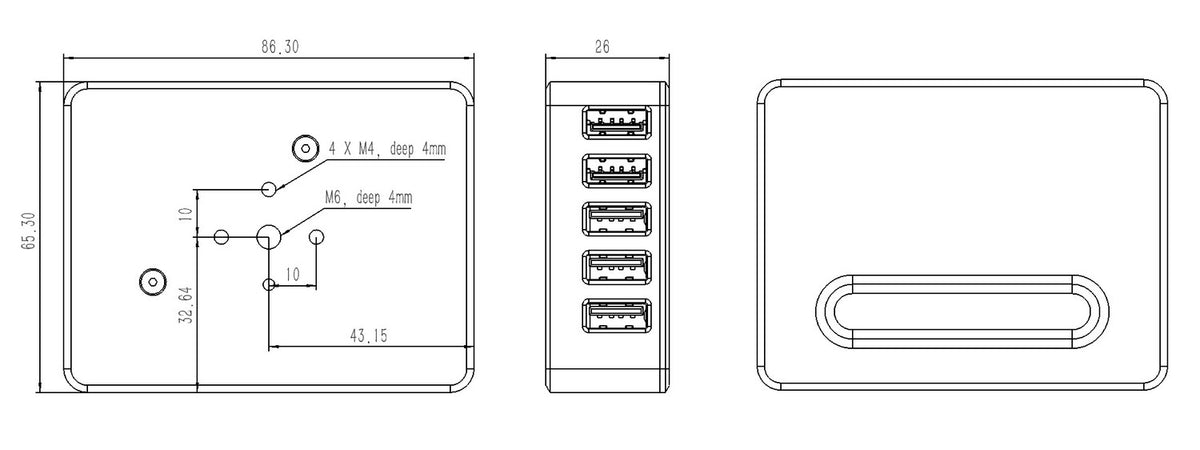

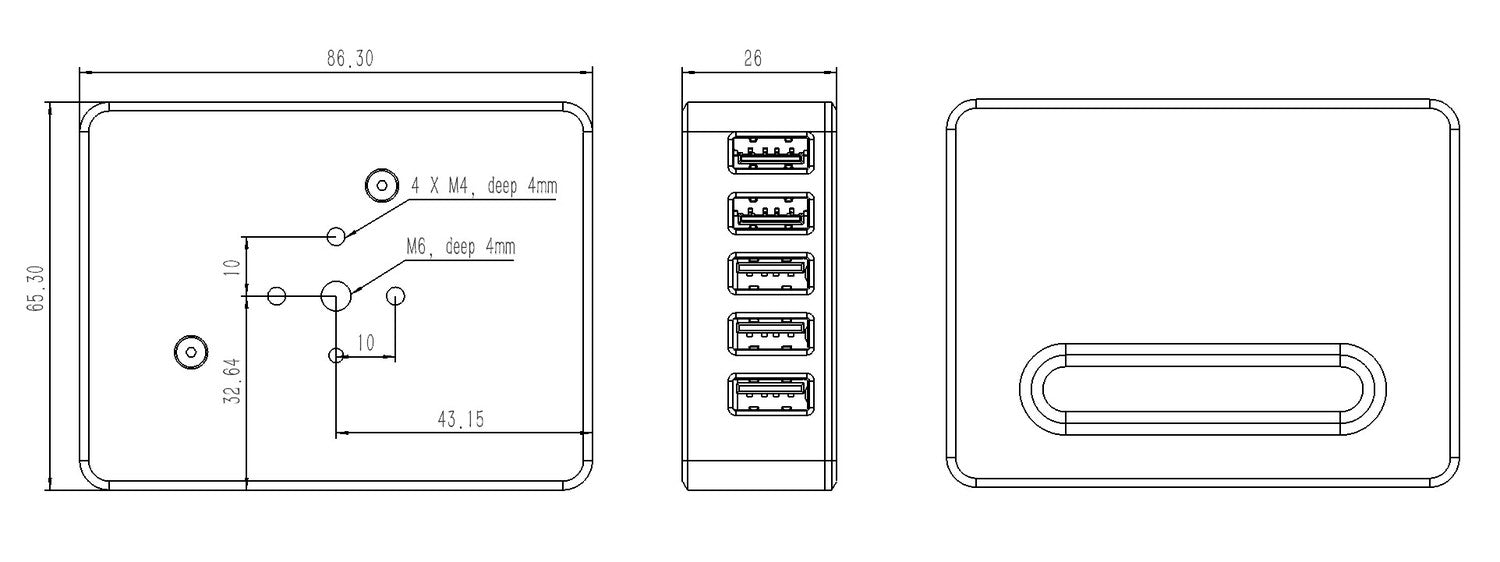

• Size: 8.6 x 6.5 x 2.6 cm

• Weight: 150g

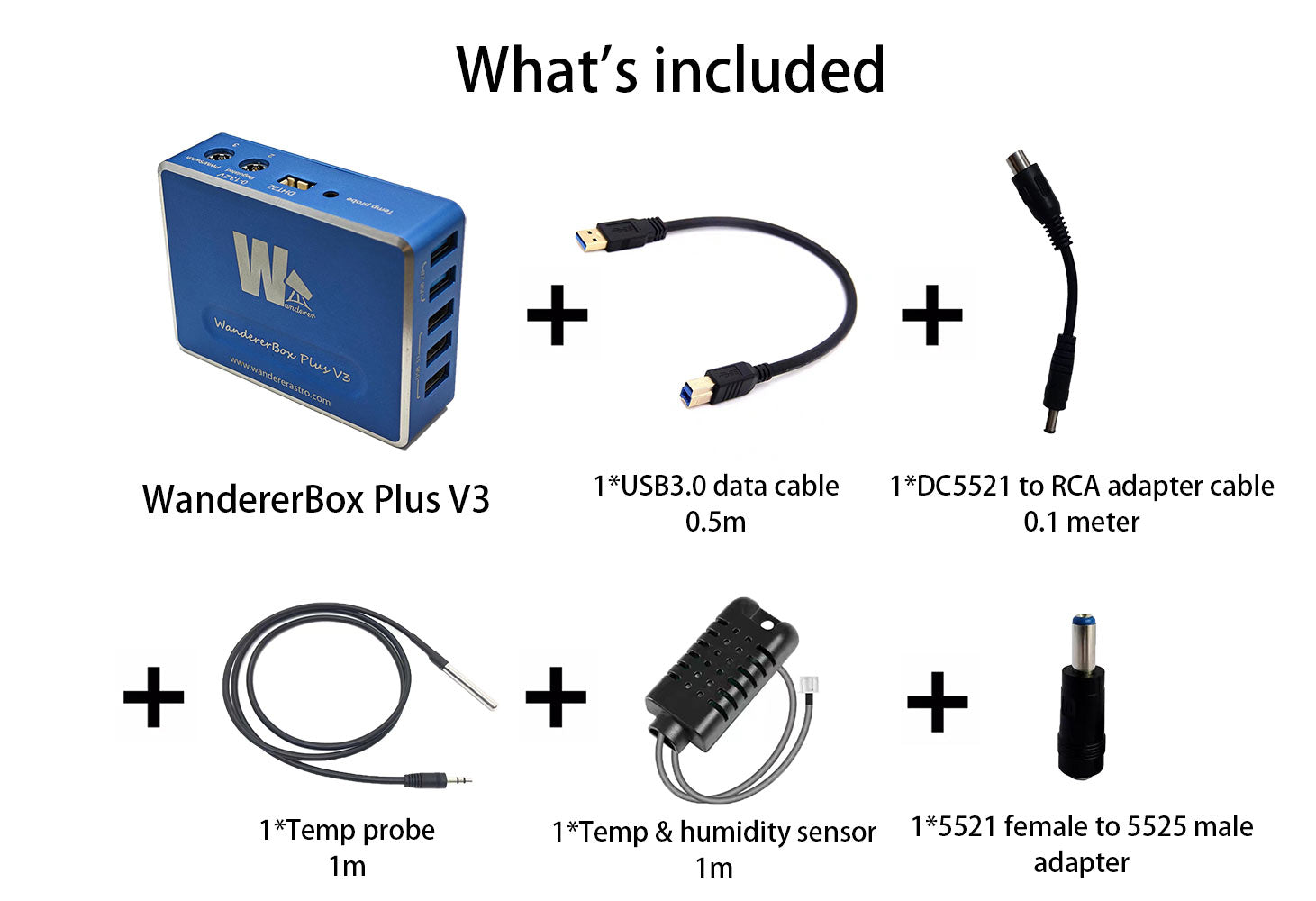

• Environmental Sensors (Included): 1 x DHT22 Temperature & Humidity Sensor, 1 x DS18820 Temperature Probe

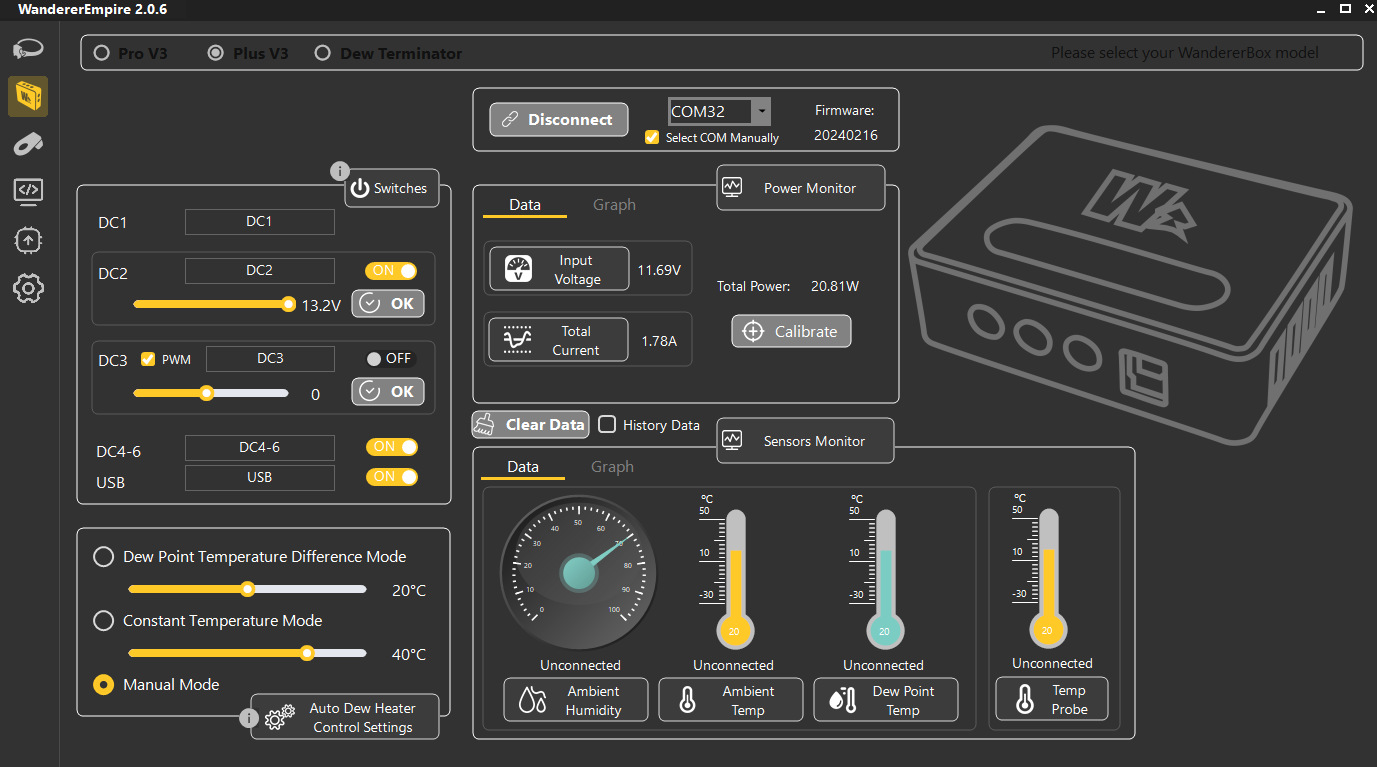

• Dew Heater Controller: Controls 1 dew heater. Chose between dewpoint temperature control, constant temperature control and manual control

• ASCOM Compatibility: Yes

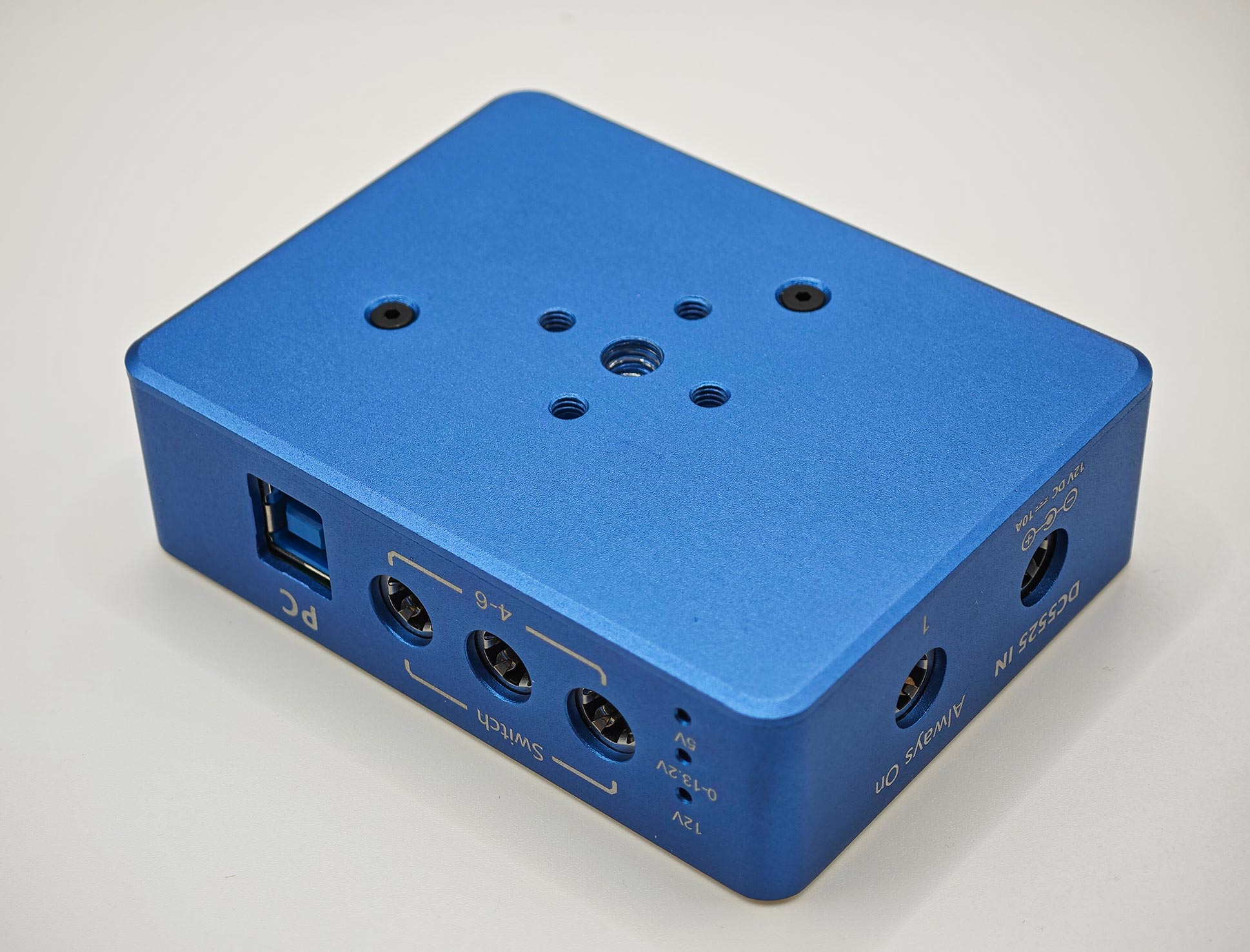

• Screw Holes: M6 x 1 & M4 x 4, 4mm deep

• Low temperature resistance to -25ºC

• Electrophoresis protection

• Short circuit protection

• Overcurrent protection

• Electrostatic protection

**All USB output ports share a 5V 5A power supply capacity, which can power a USB dew heater.
