StarField Tri-Pier 1000B - 180 lb. Capacity - SF-1000B

The Starfield Pier-1000B is a next-generation portable pier designed for astrophotographers and visual observers who want observatory-like stability in a field-ready platform. A redesigned internal leg deployment system and a rigid hex-core center column deliver smooth setup, excellent torsional stiffness, and confident tracking for German EQ, Alt/Az, and strainwave/harmonic drive mounts.

Key Features

Internal Slide Leg System

A fully enclosed internal slide mechanism keeps setup clean and fast—deploy and retract legs smoothly, then lock down securely, without exposed clamps or bulky hardware.

Hex-Core Center Column

The hexagonal column profile increases rigidity and reduces torsional flex, helping your mount stay locked in for steadier imaging and stable high-magnification observing.

Shipped with a 3/8 mount adapter to make attaching popular mounts like the ZWO AM5 or Skywatcher Wave series mount easy with no additional mounting adapters needed.

Vibration-Dampening, Quick-Adjust Feet

Industrial-grade feet help absorb vibration and make leveling easy on uneven ground. Locking collars provide quick visual confirmation that everything is secure.  The large Hex head knobs make leveling very easy, even with gloves on.

Built for Real Use

Constructed from laser-cut steel with precision welding and CNC-formed components, the Starfield Tri-Pier 1000B is designed for repeatable performance whether you're in the backyard, at a dark-sky site, or building a mobile setup.

Mount Compatibility

The Pier-1000B includes a 3/8" screw adapter plate for broad compatibility.

Mounts that Work with Included 3/8" Adapter:

• ZWO AM5 / AM3

• Takahashi EM200

• Rainbow Astro RST-135 / RST-135E

• Crux (3/8" compatible models)

• Skywatcher Wave mounts

Mounts that Require a Starfield Standard Model UniPlate Mount Adapter (Common Examples, sold separately):

• Celestron AVX, CGEM / CGEM II, CG-4, CG-5, CGEM-DX

• Pegasus NXY-101 (Adapter required from Pegasus Astro)

• iOptron: CEM40, GEM45, iEQ45, CEM28/GEM28*, HAE and HEM mounts*

• Skywatcher EQ6, EQ6-R/EQ6-R Pro, HEQ5/HEQ5 Pro, EQ5, EQ3-2 (also Orion Atlas)

• Explore Scientific EXOS/2 mount

• Meade LXD75 (confirm dimensions due to model variations)

• Vixen and Generic EQ5-style mounts (please contact us to confirm compatibility)

Specifications

• Material: High-grade laser-cut steel
• Construction: Welded frame, CNC precision bending
• Column design: Hexagonal profile
• Finish: Powder coated steel and anodized aluminum
• Leg deployment: Fully enclosed internal slide mechanism / bearing
• Feet: Quick-adjust vibration-dampening feet with locking collars
• Leveling range: 90mm (3.5") per foot
• Weight: 22 lb (10 kg)
• Payload capacity: 180 lb
• Included: Carry bag + built-in carry handle

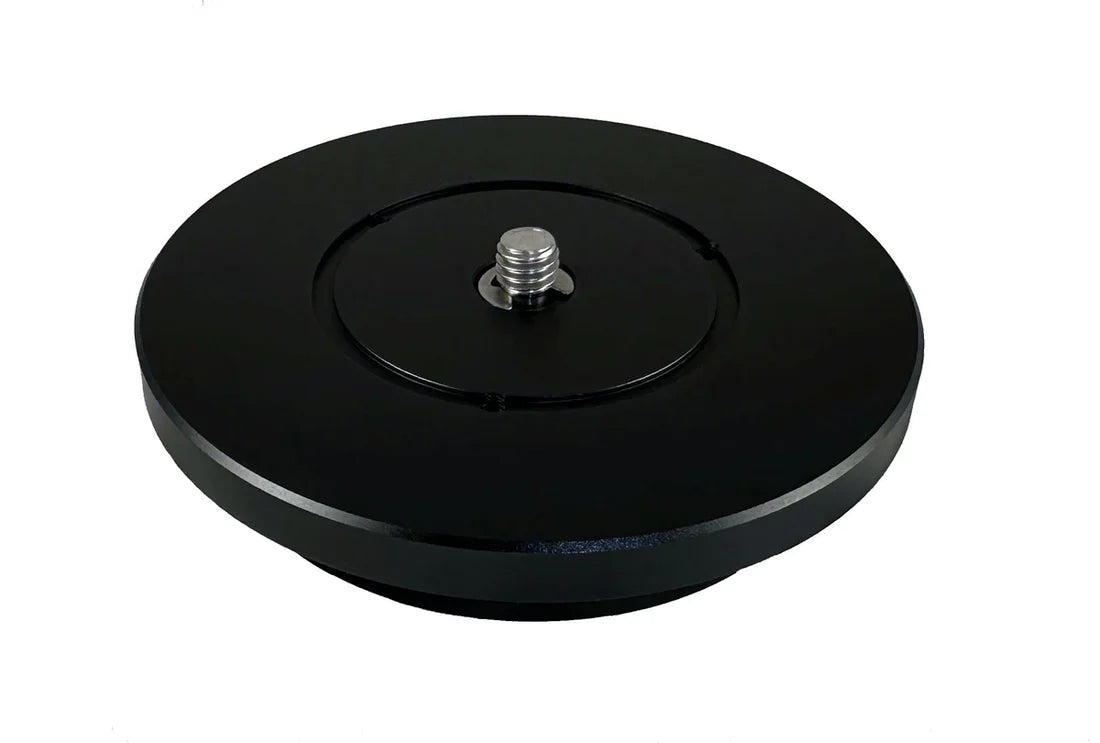

• Top plate: Universal top plate included with 3/8" bolt (see in included images)
