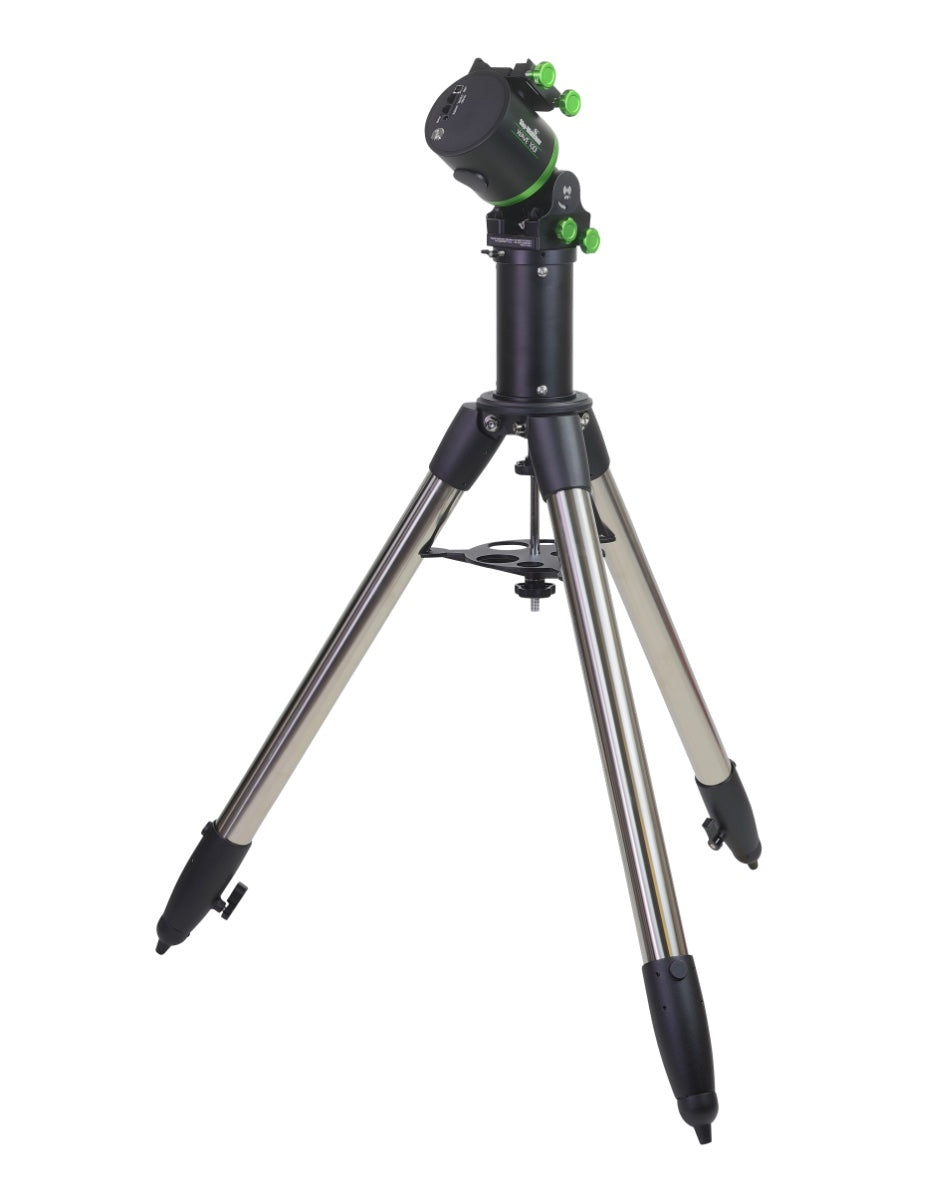

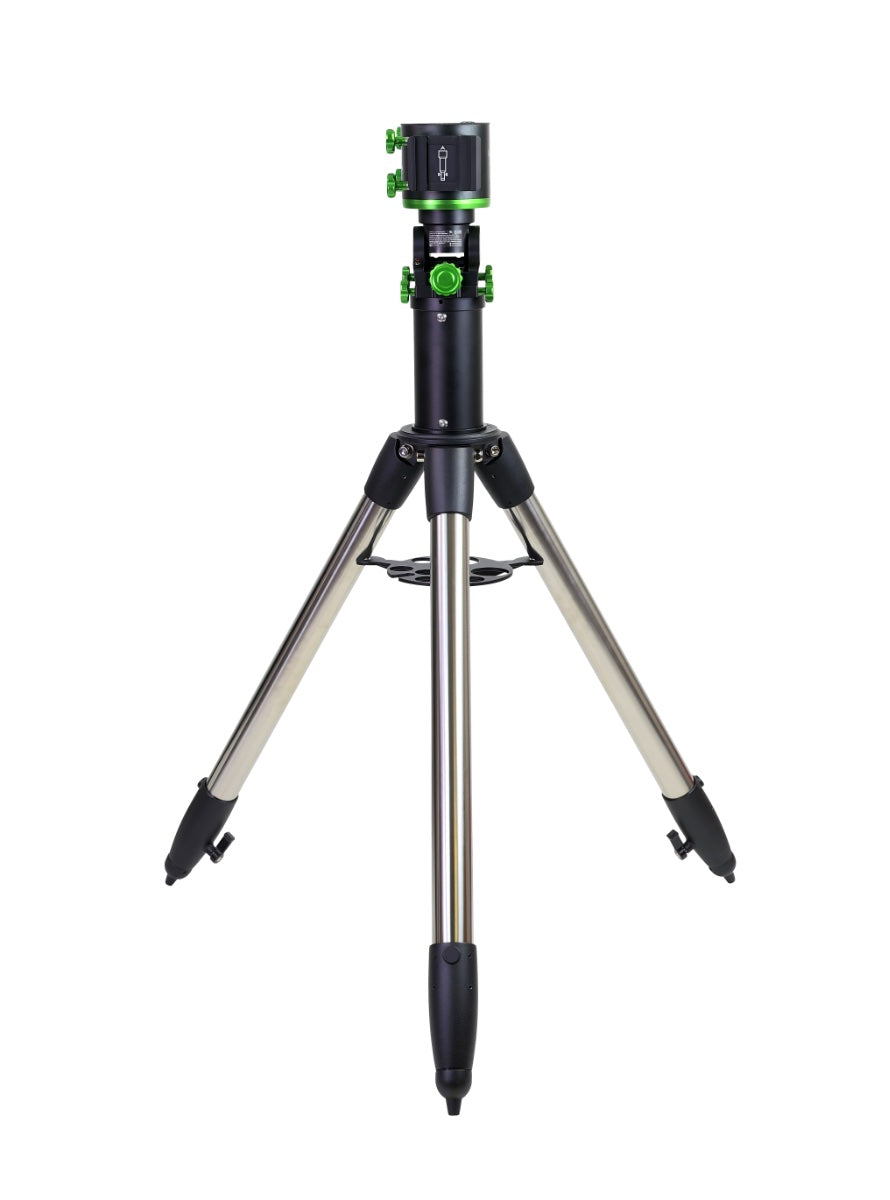

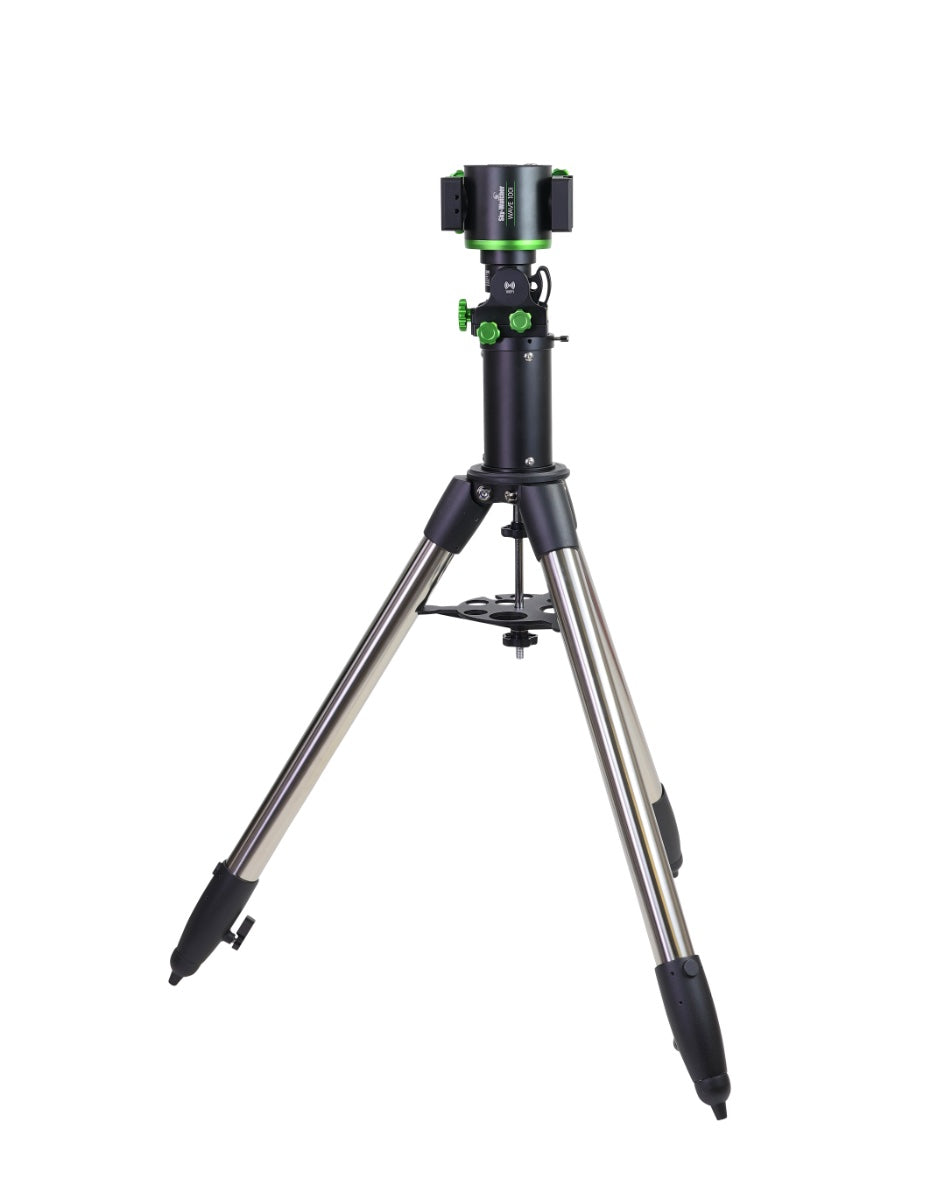

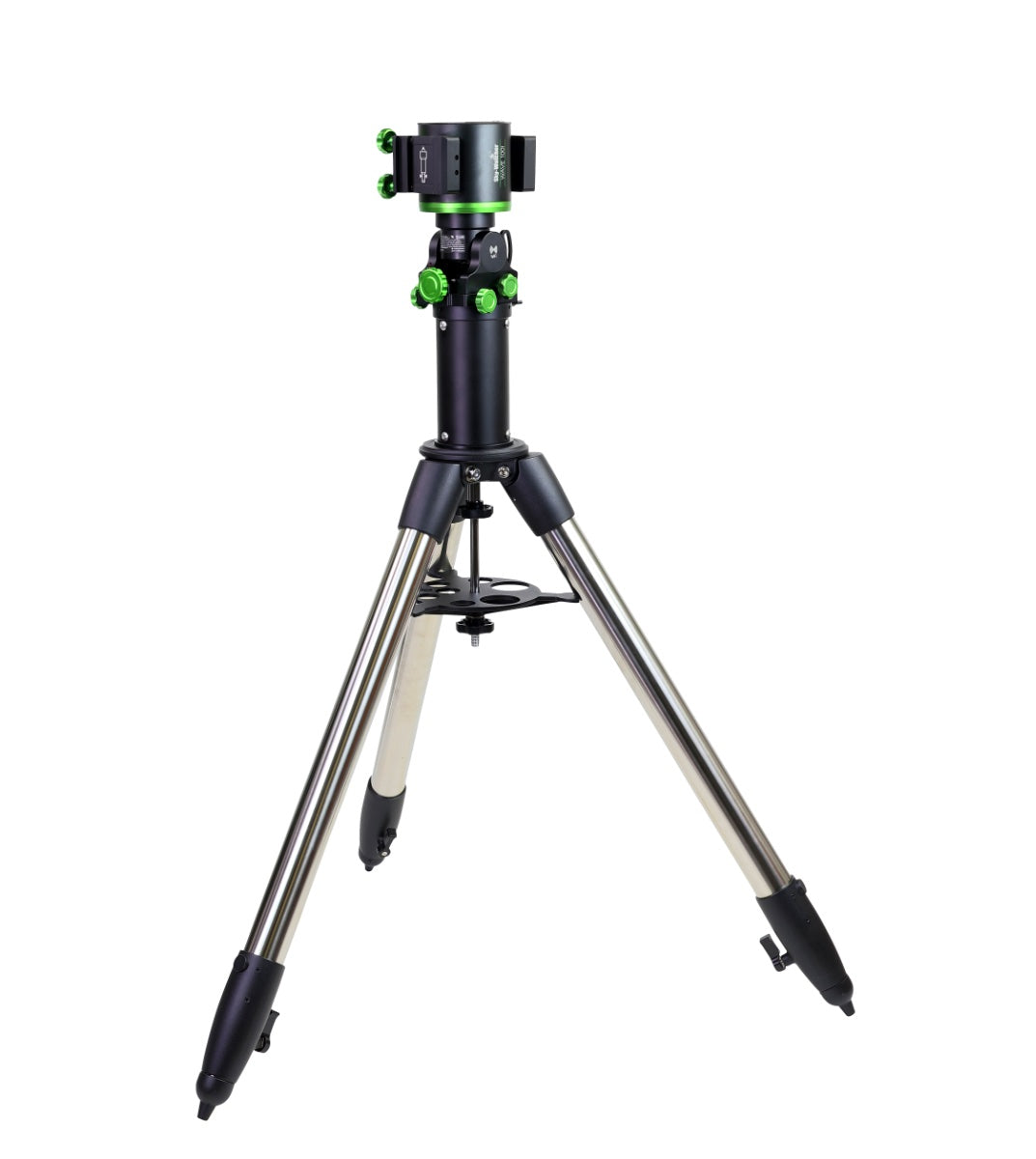

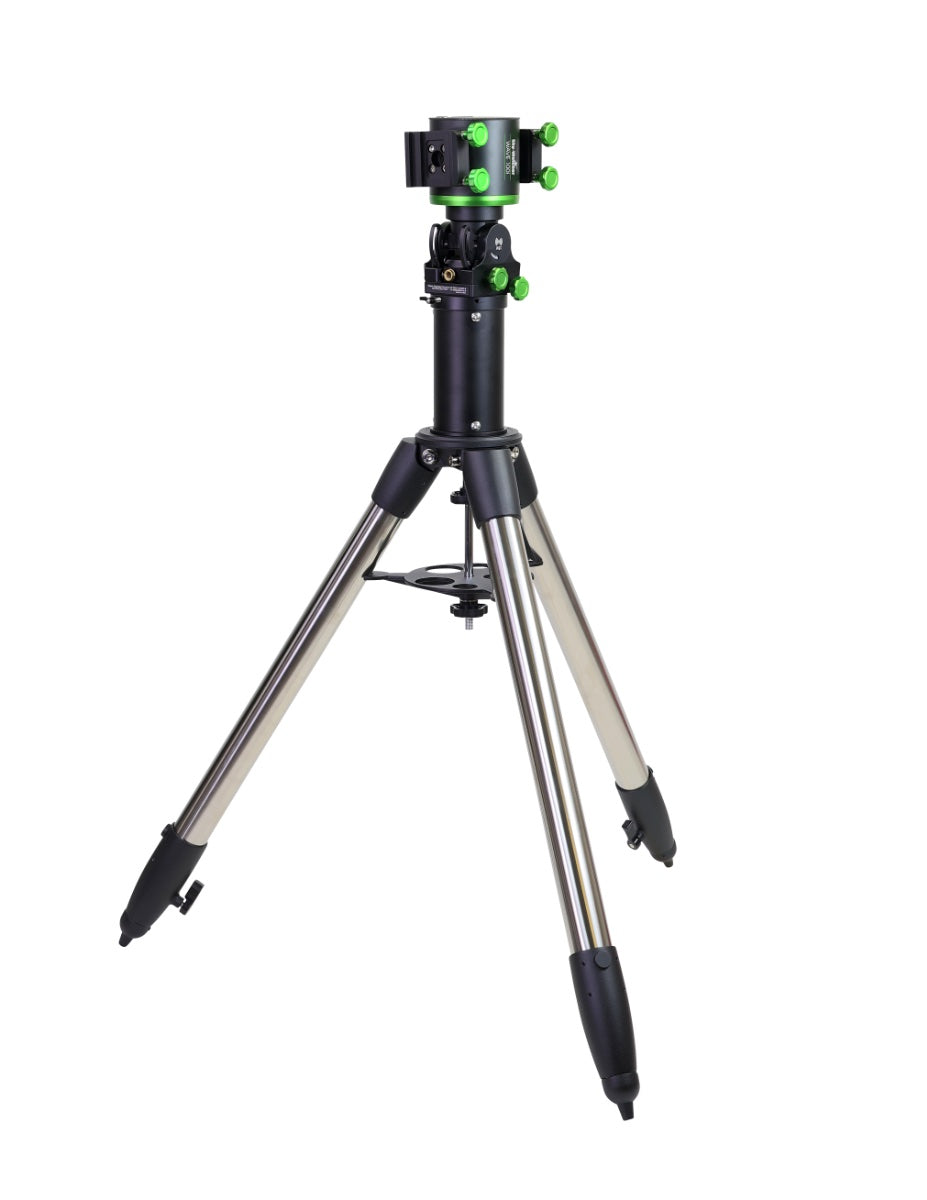

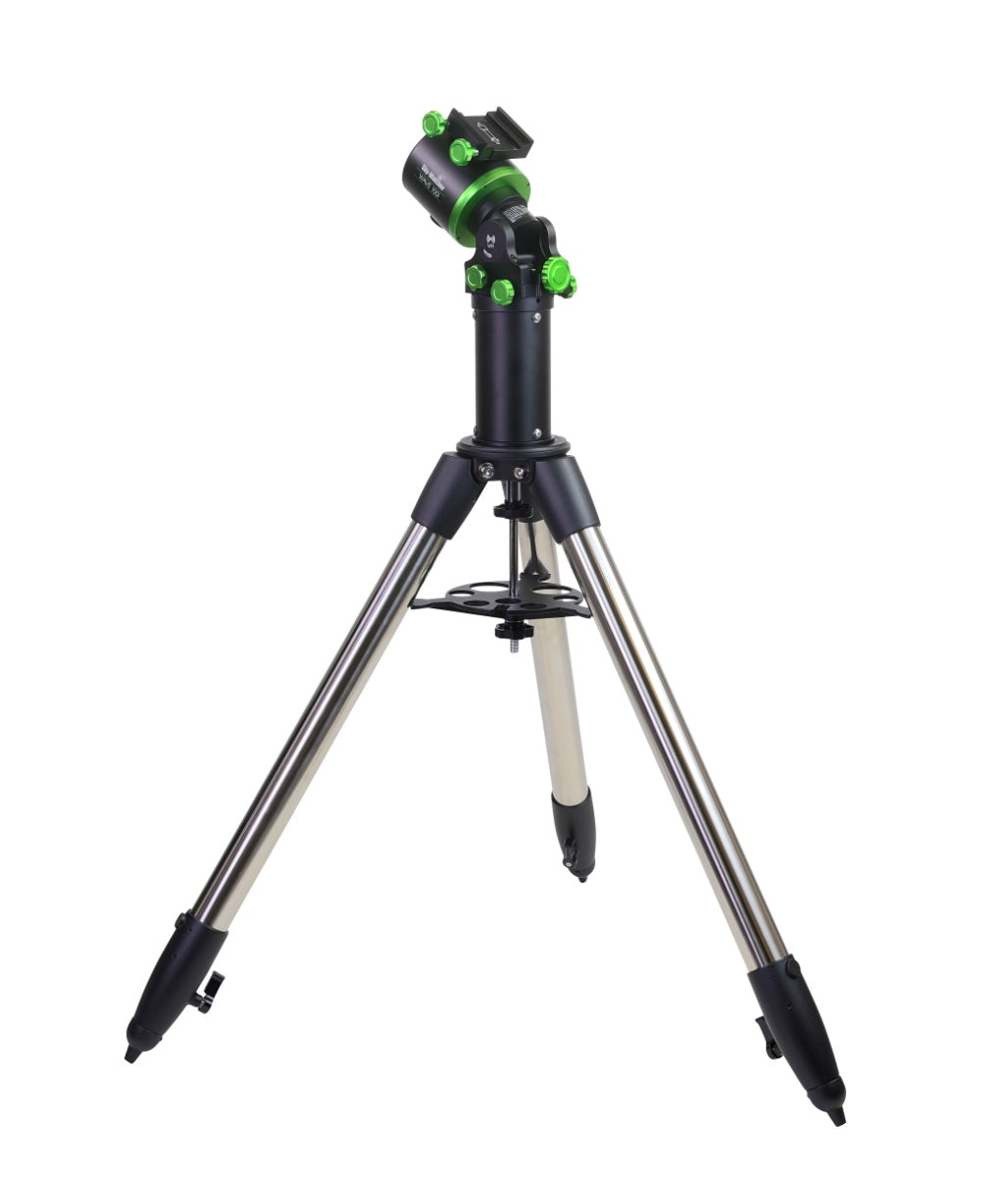

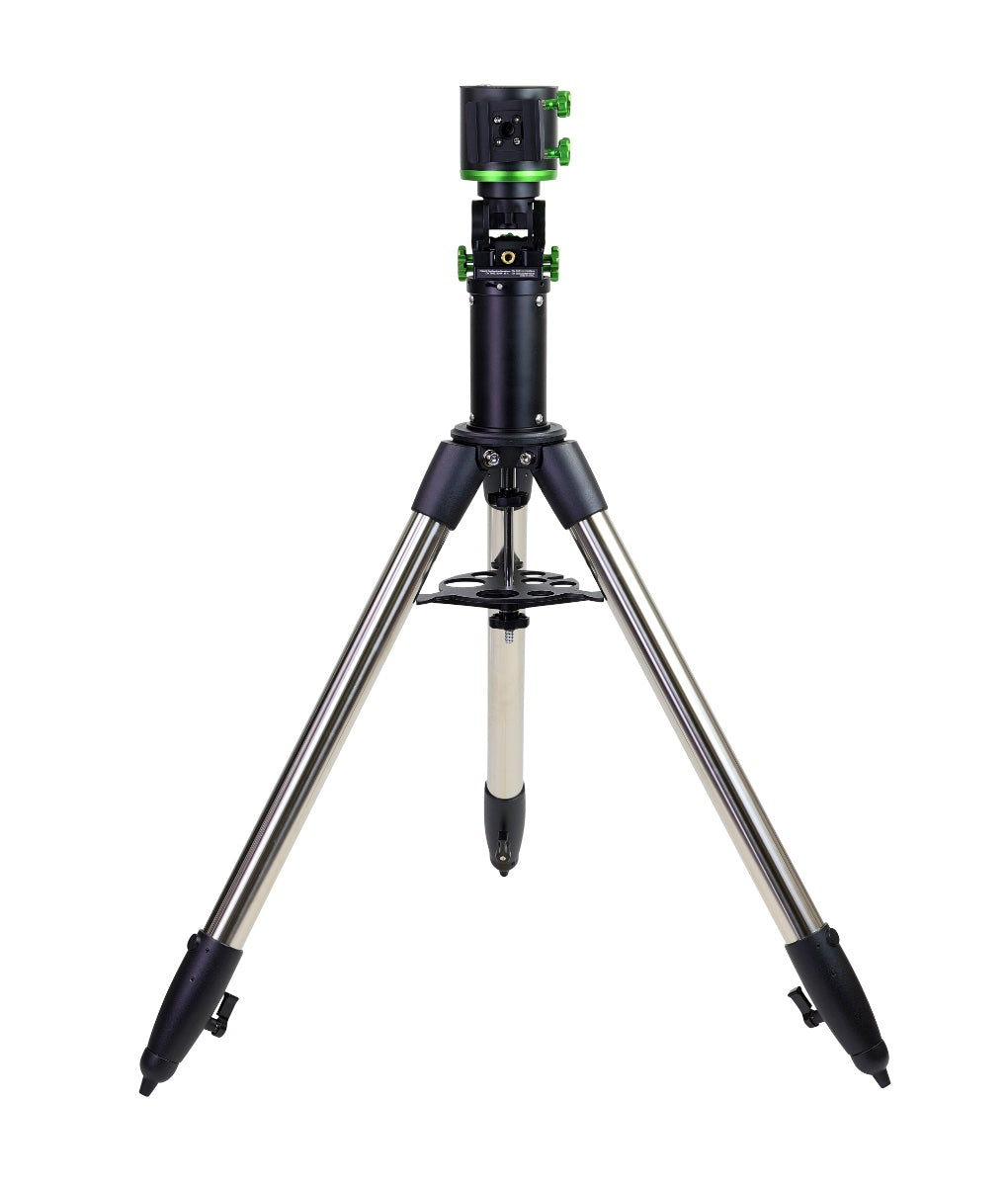

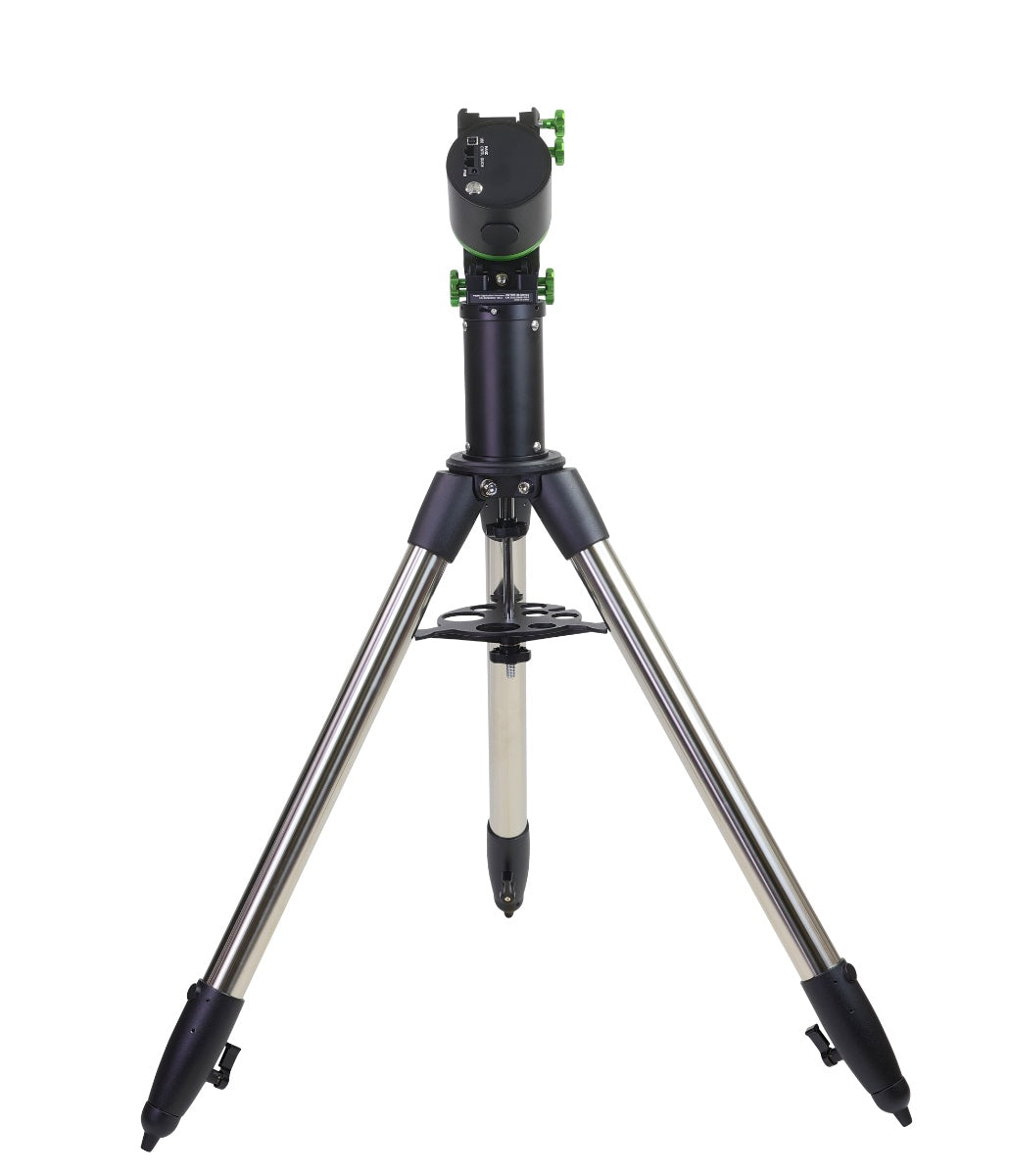

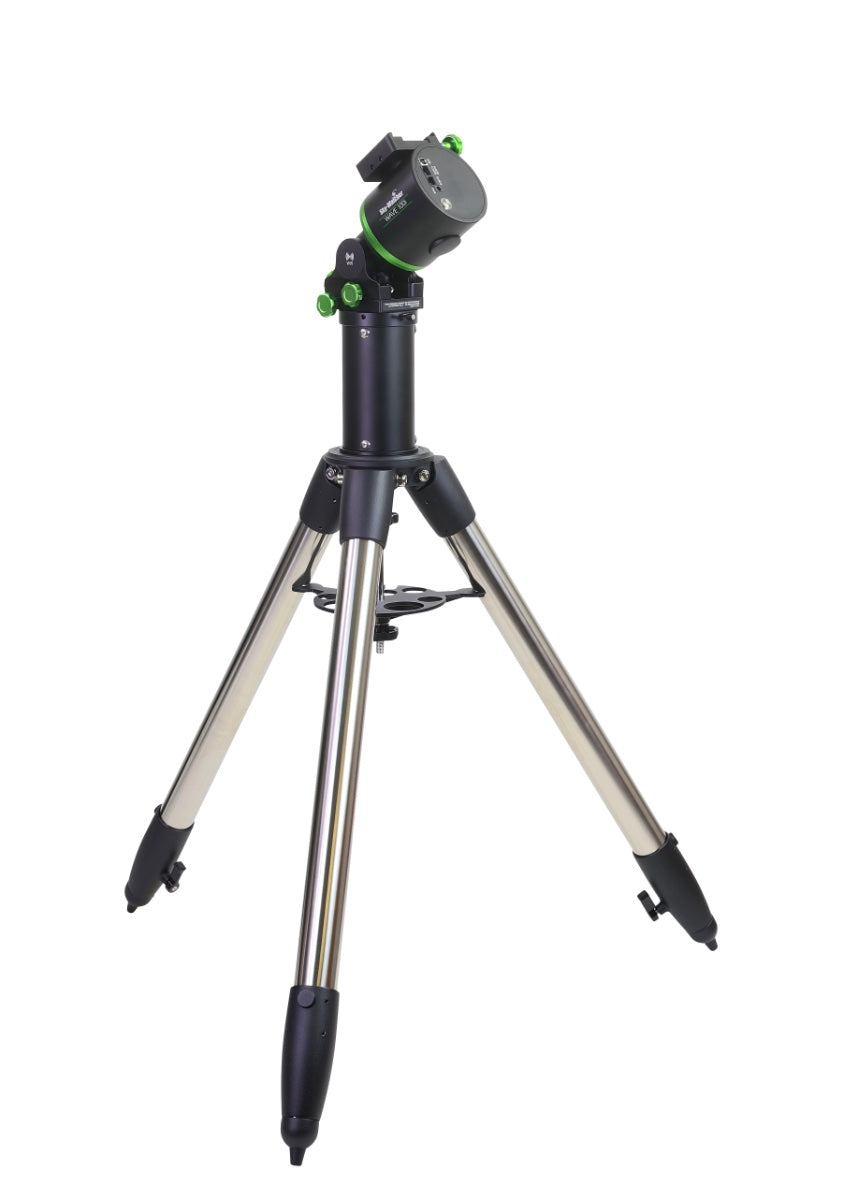

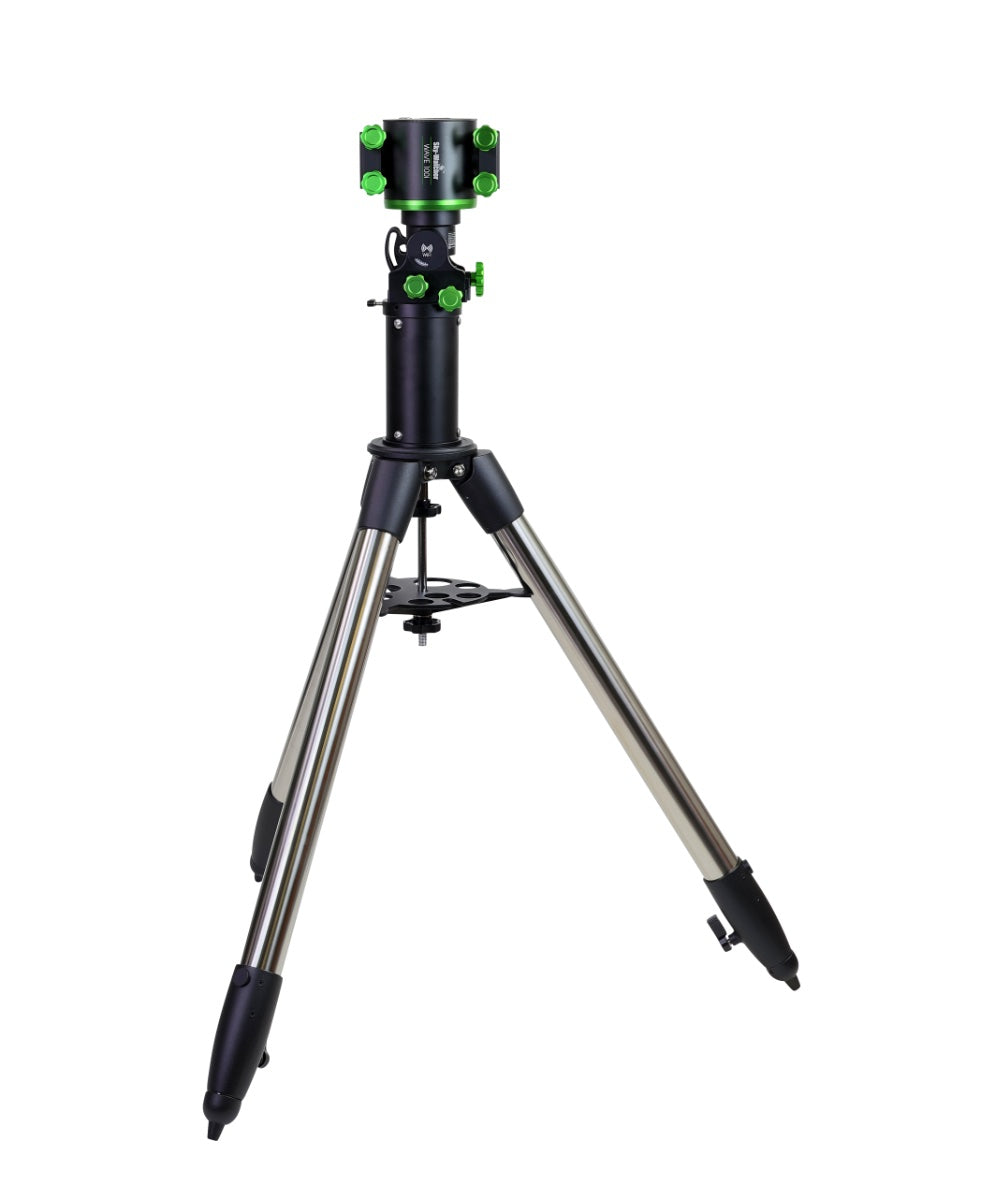

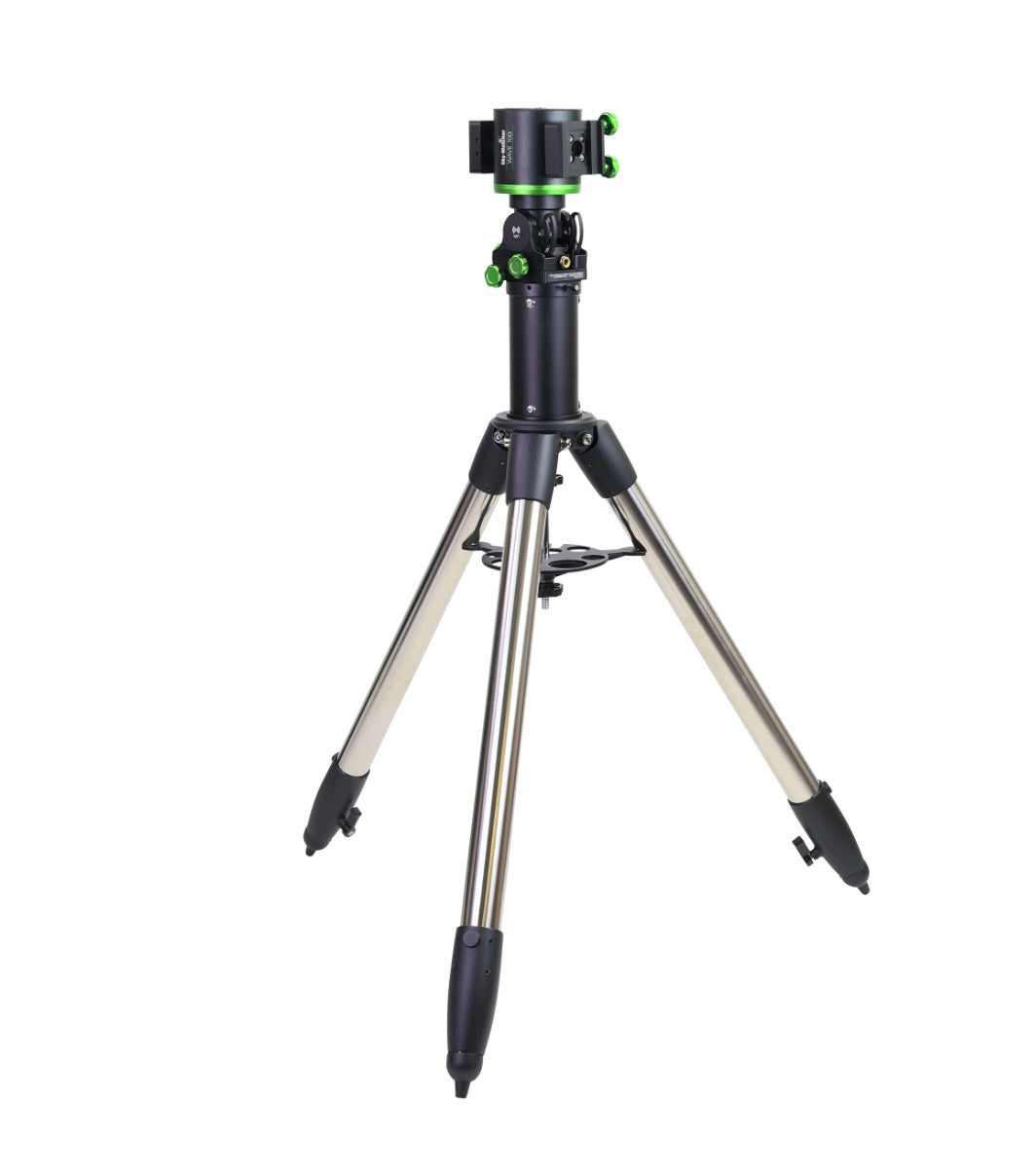

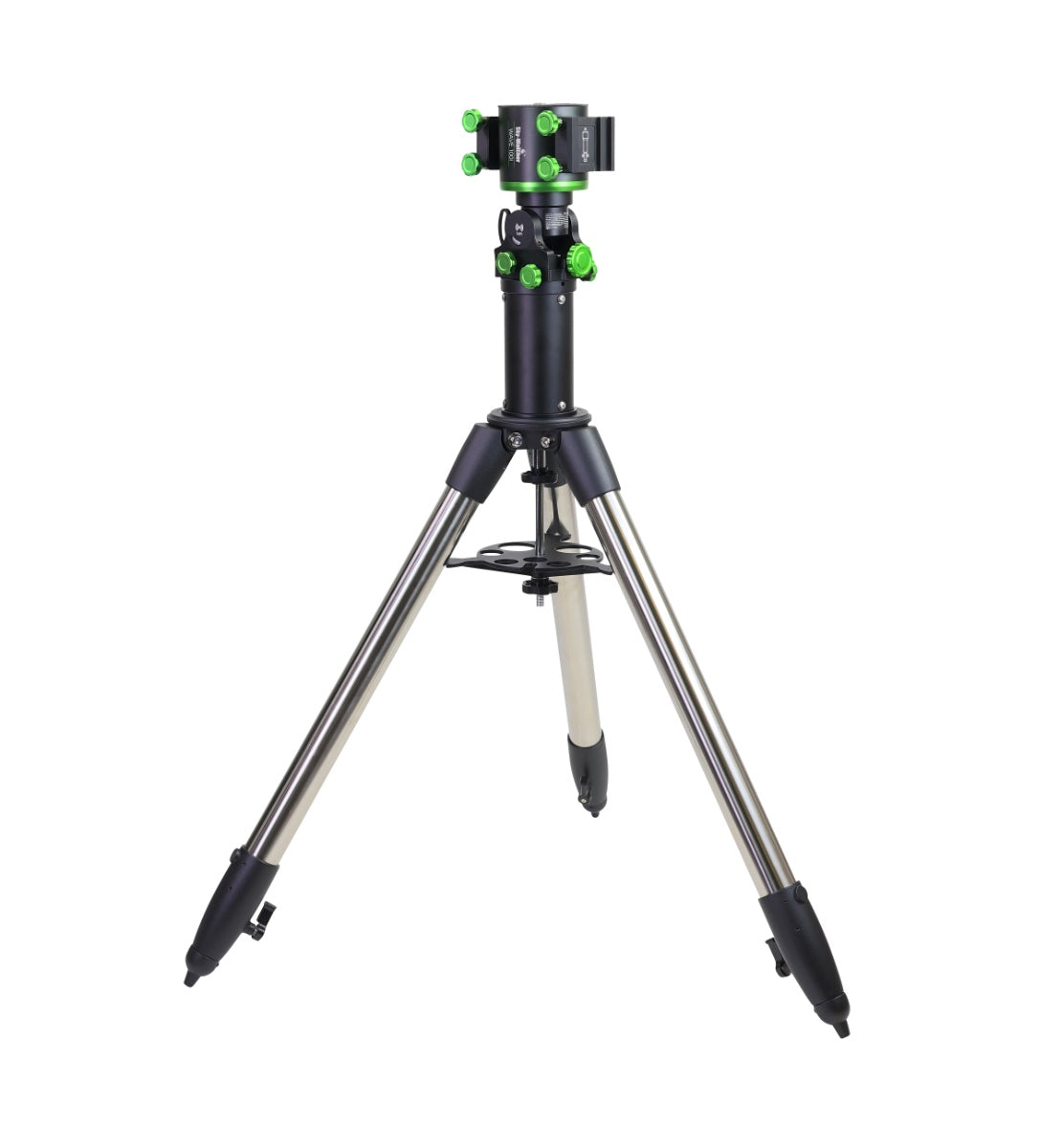

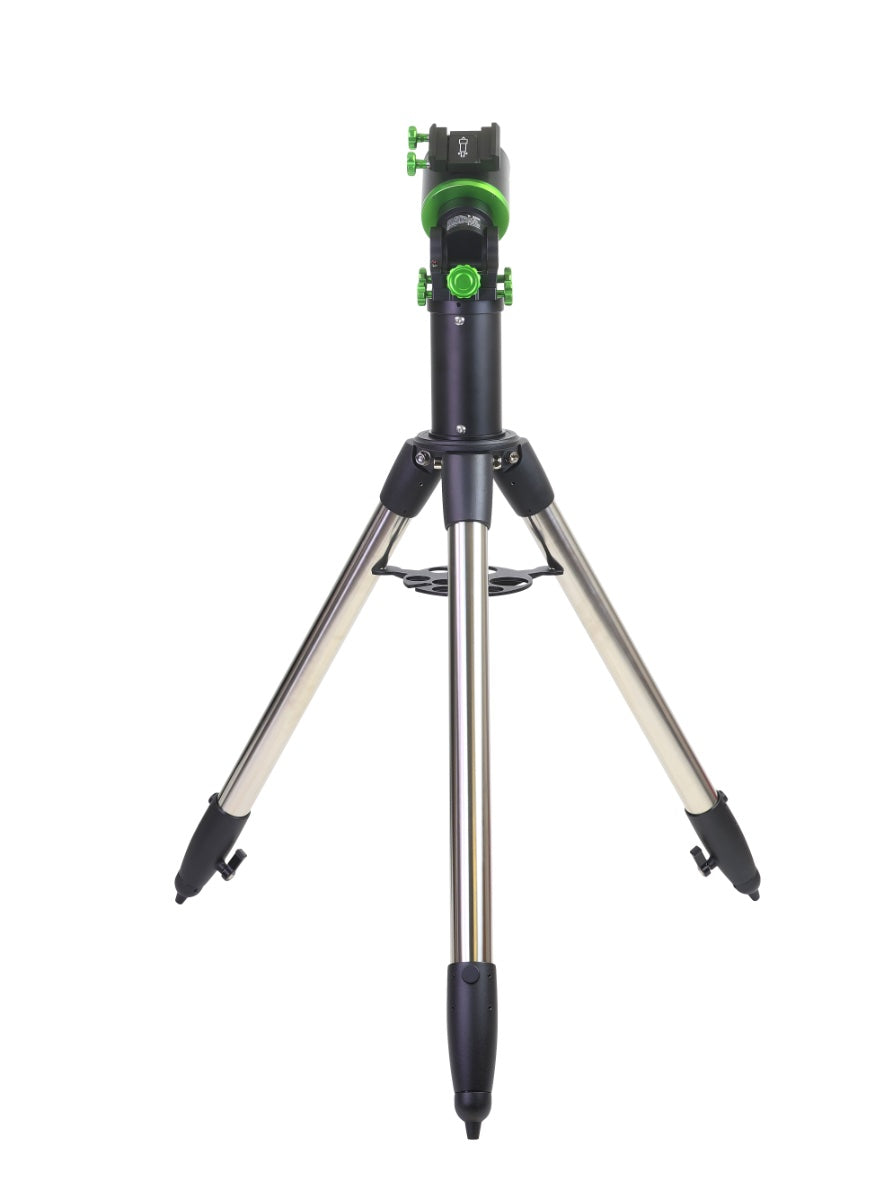

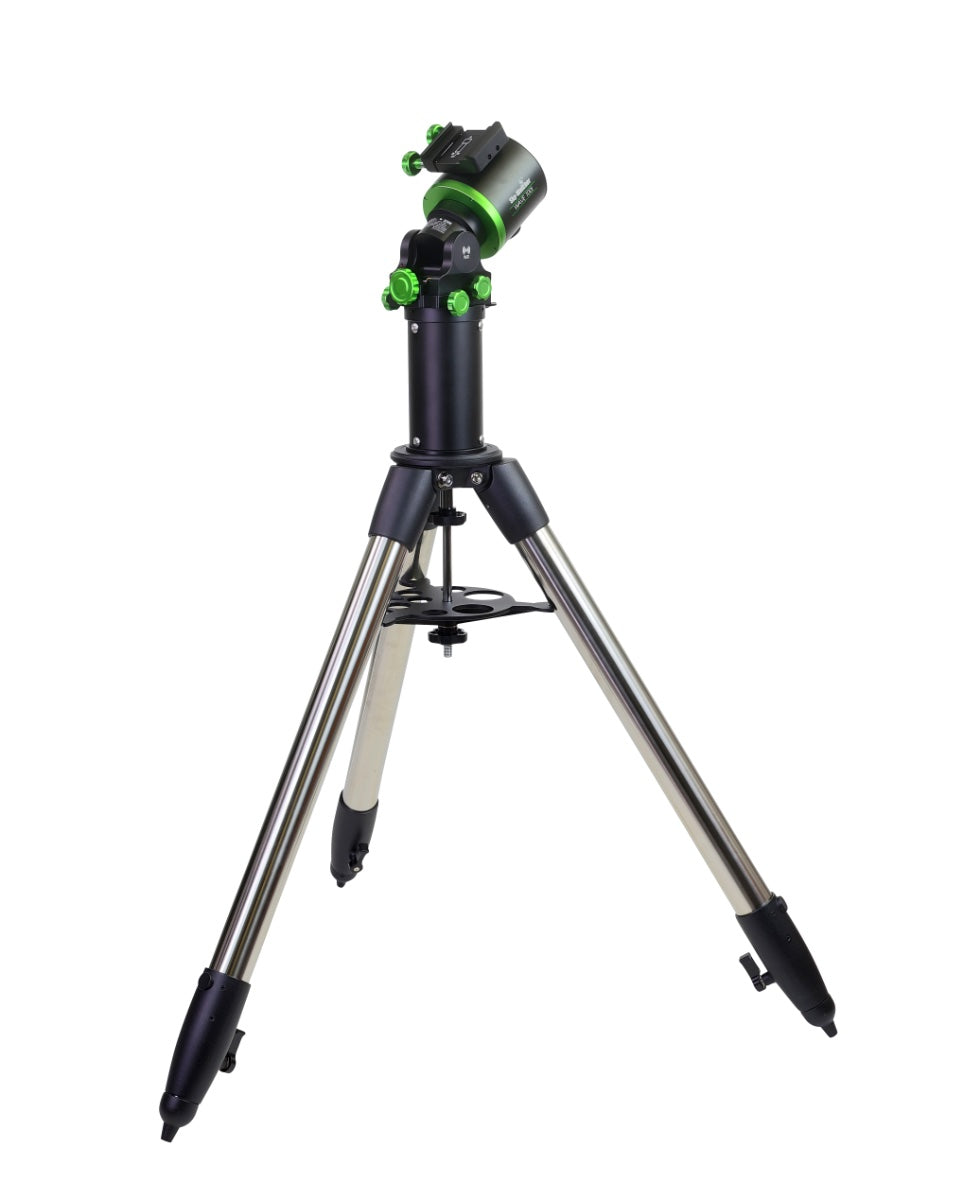

Sky-Watcher Wave 100i Strainwave Dual Mount with Steel Tripod & Extension - S40014

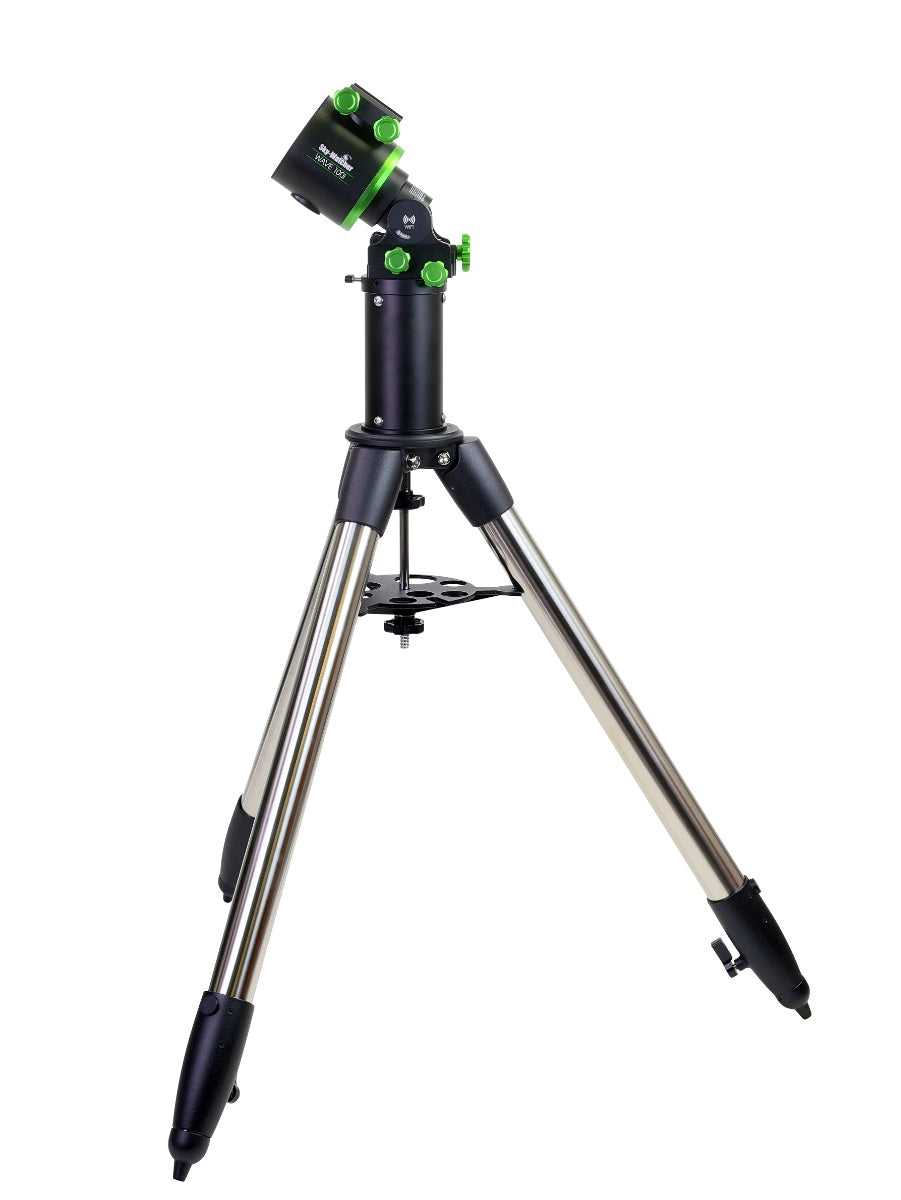

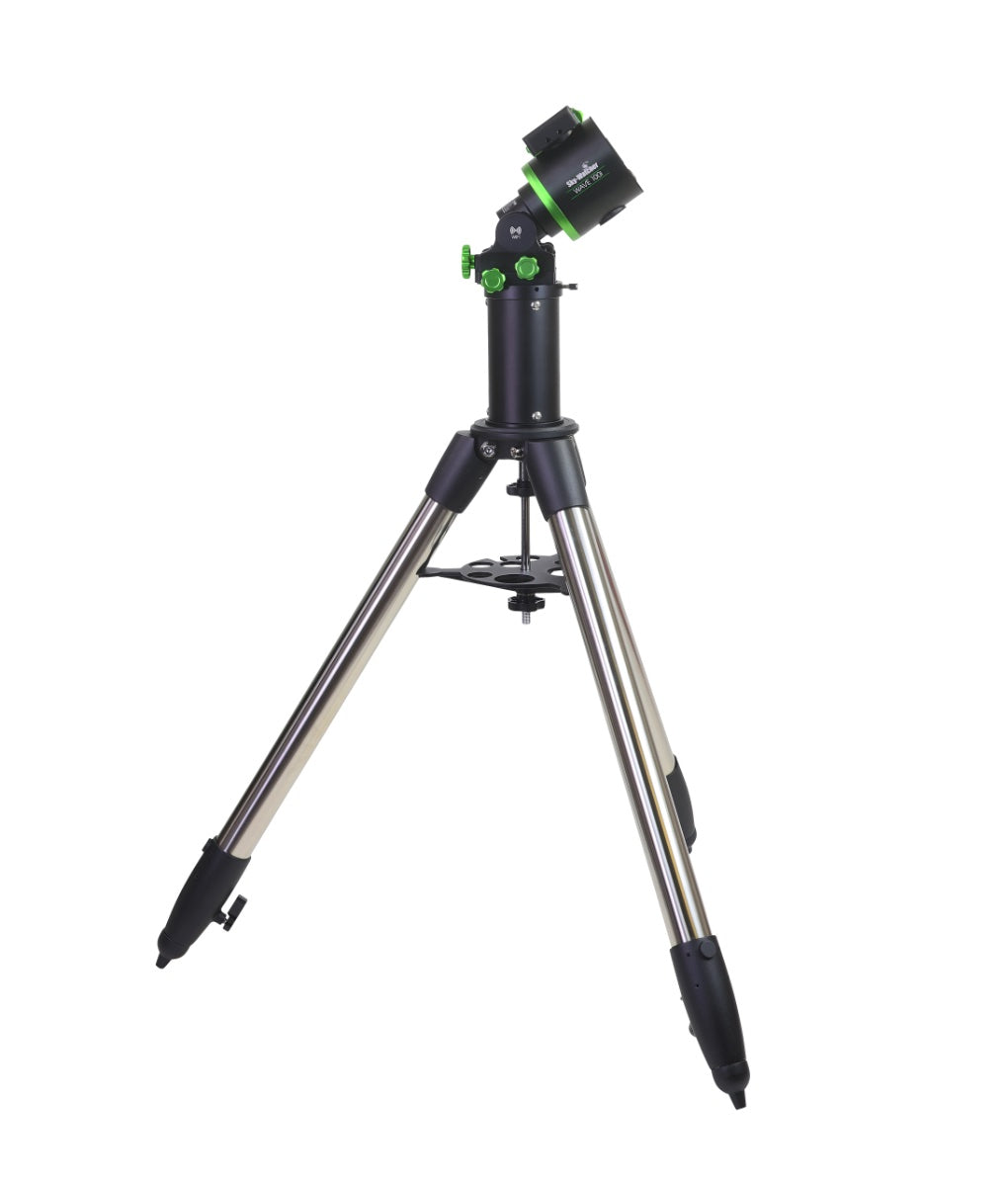

Sky-Watcher Wave 100i Mount
with Steel EQ6 Tripod & Tripod Extension

This special package deal from Sky-Watcher is available for a limited time and at a price you'll appreciate!  This package includes:

• Sky-Watcher Wave 100i Strainwave Mount - S30900

• Sky-Watcher EQ6 Steel Tripod - S30918

• Sky-Watcher Steel Tripod Extension - S30916

About the Sky-Watcher Wave 100i EQ/AZ Mount...

The Sky-Watcher 100i Strainwave Mount is particularly suitable for serious astronomers and astrophotographers who require precise control over their telescope’s movements but enjoy a small form factor.

Sky-Watcher ́s Wave mounts feature strainwave gearing that provides a lot of power in a little package. The strainwave configuration offers several advantages over traditional mount designs including low to zero backlash and high torque for handling larger OTAs.

Weighing only 9.5 pounds and carrying a 22-pound-per-saddle payload (33lb. in EQ mode with the optional counterweight kit), the Wave 100i is the perfect grab-and-go mount that can moonlight as a dual saddle astronomy outreach dynamo or an equatorial imaging mount. Featuring a whisper-quiet slew speed of 10 degrees per second, the Sky-Watcher 100i can even track satellites and space stations.

Wave 100i Highlights

• Wave 100i GoTo strainwave head
• EQ and AZ modes
• Weighs 9.5 pounds (4.3kg)
• 22-pound (10kg) payload capacity without optional counterweight
• 33-pound (15kg) payload capacity with optional counterweight
• Dual D/V hybrid saddles
• Included secondary saddle
• Latitude range from 0° to 90°
• Red LED for latitude scale and bubble level
• Wi-Fi and Bluetooth
• USB-B for PC control
• Slews up to 10º per second
• Internal homing sensors on both axes
• Compatible with optional SynScan hand controller
• RA power off braking function
• RA and DEC home position functions
• Requires 12V 2A power (not included)
• Optional counterweight kit not included
• Optical Tube not included

Exclusive Features

Dual Saddles: For solar imagers, eclipse chasers, and outreach enthusiasts the smaller Wave 100i comes standard with a secondary saddle that mounts over the counterweight port allowing users to mount up to 22 lbs. of equipment on each saddle in Alt-Az mode.

Fast Slewing: Track satellites and space stations with the Wave’s swift slew rate of 7.5 degrees per second and the downloadable Satellite Tracker Application for Windows PC found on Sky-Watcher’s International Support website.

Key Features

Strainwave Drive Technology: The Wave mount was built around advanced strain wave drive technology which delivers exceptionally smooth and precise tracking without the need of bulky counterweights, tripods, and mount heads. This approach allows users to capture stunning images of celestial objects on a more streamlined platform without sacrificing performance.

Robust Payload Capacity: Whether you’re mounting a small wide field refractor, a stocky Mak-Cassegrain, a massive astrograph, or a long, glass-heavy triplet, the Wave's adaptive payload capacity and slew of add-ons and accessories ensures compatibility with a wide range of optical tubes and tripods. This adaptability provides a stable platform for an entirely open ecosystem tailor-made by the user with an intuitive interface and a fit and finish that inspires confidence.

Seamless Connectivity: The Wave mount easily integrates with Sky-Watcher's SynScan hand controller or SynScan app allowing users to control their telescopes by hand or wirelessly via smartphone or tablet, as well as through third-party control platforms (ASIAir, Eagle, StellarMate, etc.) enabling access to advanced features like plate solving and automated imaging runs.

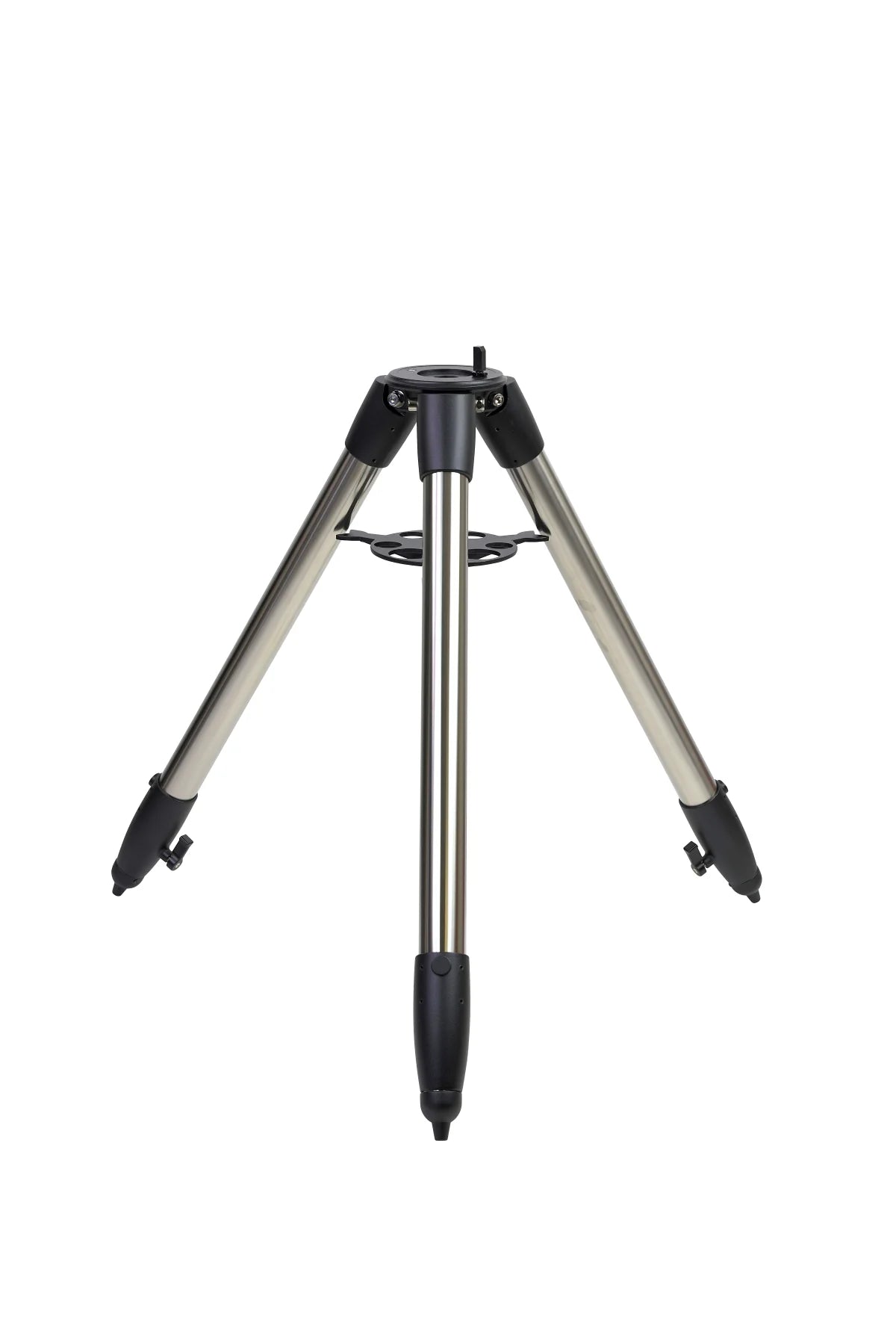

About the EQ6 Steel Tripod...

This heavy-duty EQ6 tripod is just the thing if you are going to use larger optical tube assemblies on your Wave mount.  The legs are made of steel and are 2" in diameter.  The black trim even matches the Wave!

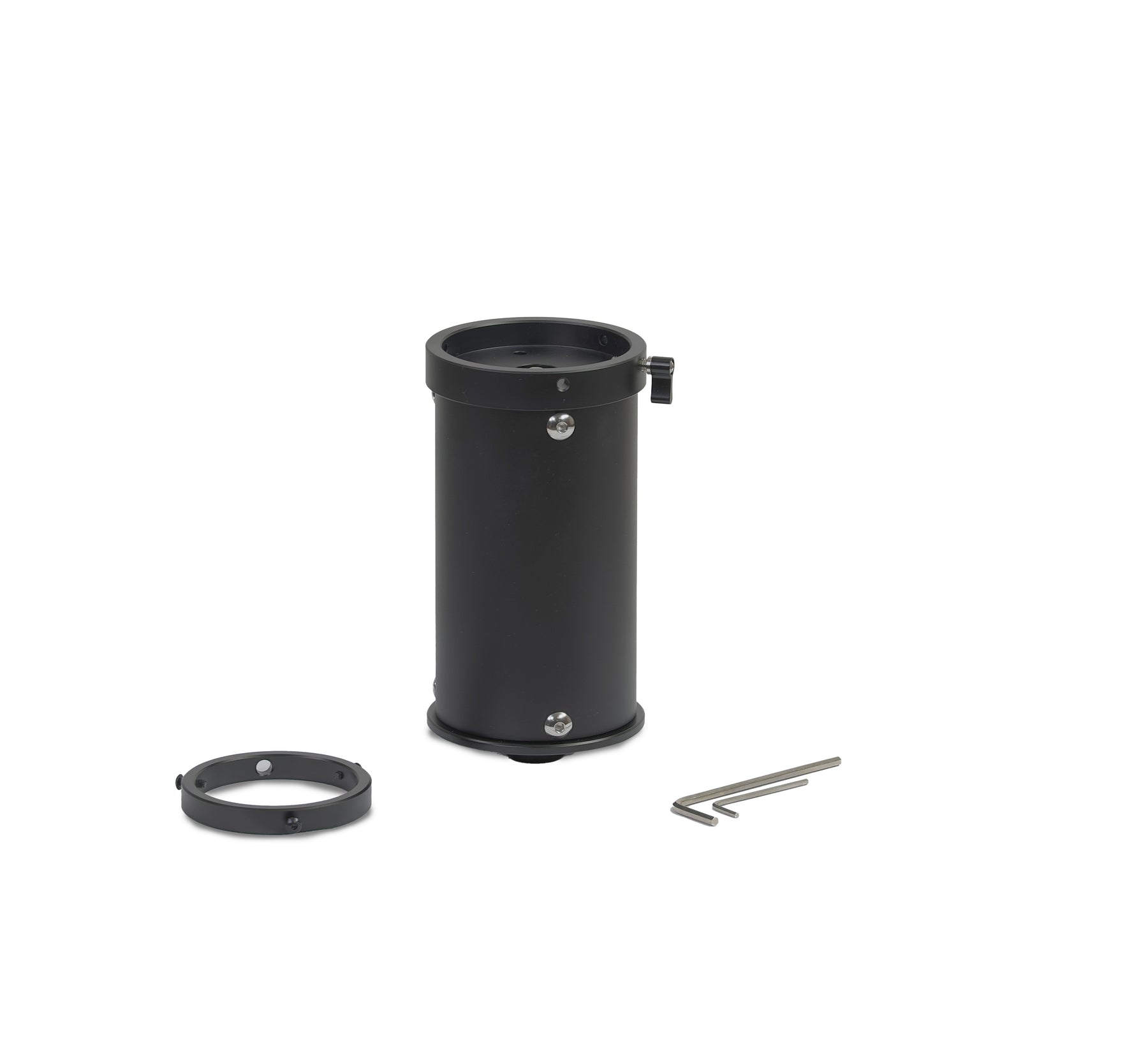

About the Tripod Extension & Adapter...

The Wave Mount to EQ6 Steel Tripod extension will raise the mount an extra 180 mm from the base of the tripod.  An adapter (included) goes between the two.  The extension tube is 180 mm long with a 100 mm radius.  The extension weighs 1.1kg.

Sky-Watcher Wave 100i Specifications...
