QHY 30mm f/4.3 MiniGuidescope - 100062
Regular price
$178.00 CAD
Couldn't load pickup availability
When the pixels of a guide camera becomes small and QE becomes high, you may not need a big guide scope; smaller pixels can detect the guide error in a shorter focal length. Furthermore, when the focal length is reduced, the FOV becomes larger, so it is easier to find bright guide stars.

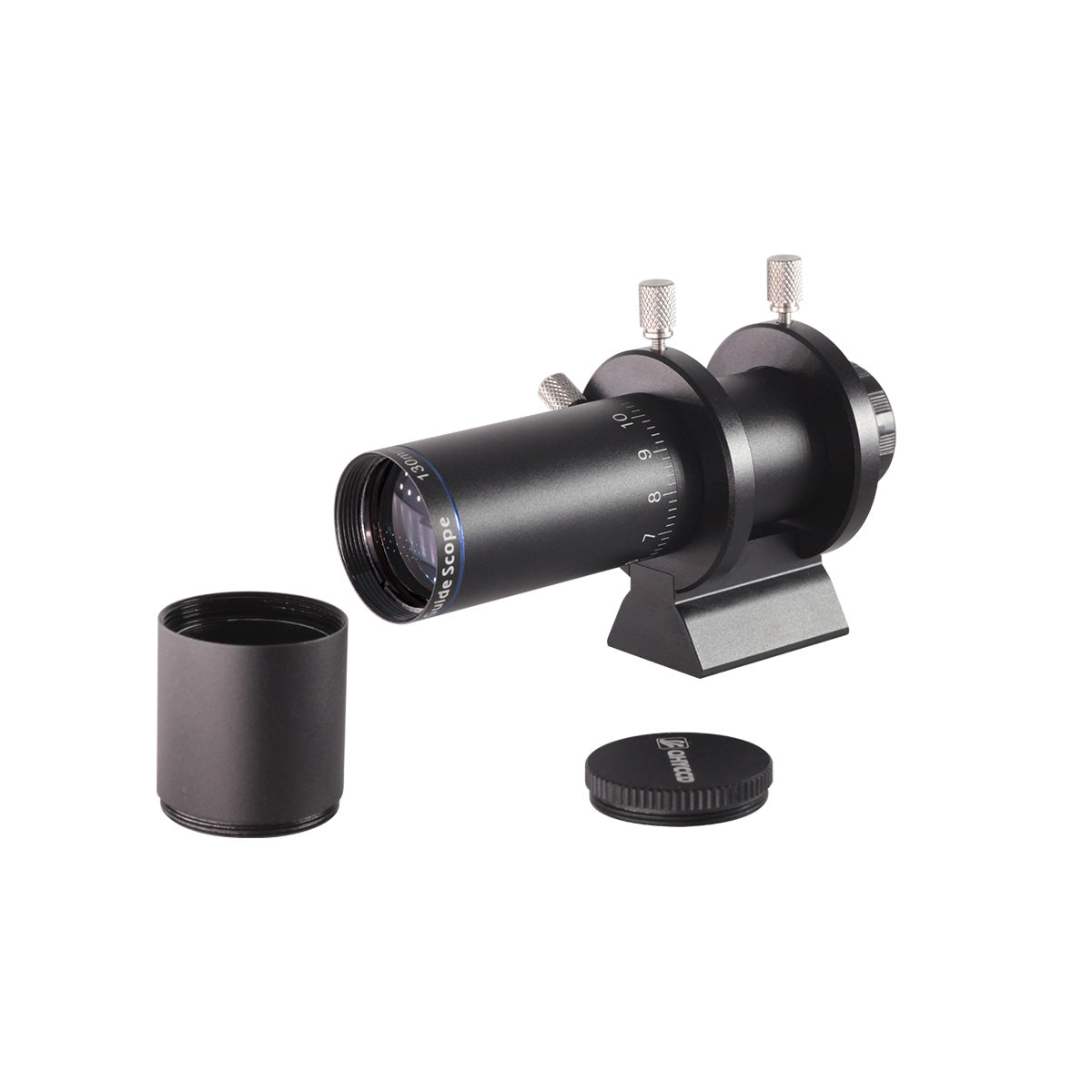

The QHYCCD miniGuideScope is based on just this idea. The miniGuideScope is a 30mm f/4.3 (130mm FL) ultra-small telescope. It has no complex focal adjust system. Just rotate the front of the OTA and it provides fine focal adjustment. Once focus is achieved, the tube can be locked into position and there is no need to focus again unless the system is moved.
The QHY miniGuideScope provides pin-point star images as sharp as any lens in the industry.
Specifications
|
Model
|
miniGuideScope |
|
Diameter
|
30mm |
|
Focal Length
|
130mm |
|
Aperture
|
1:4.3 |
|
Object Lens Type
|
Doublet |
|
Focus System
|
Front Side Focuser |
|
Focus Locker
|
Yes |
| Camera Interface | C/CS Mount |
| Compatible Cameras | QHY5II and QHY5III series |
| Anti-Scatter Light Matt Paint | Yes, Internal painted |
| Weight (OTA only) | 111g |
| Telescope Connector | Optional Standard ViewFinder Scope Connector with Tripod Screw Thread |
| Diameter of the OTA | 31.6mm |
| Focus Adjustable Range | Inf. to 1.5 meter |
