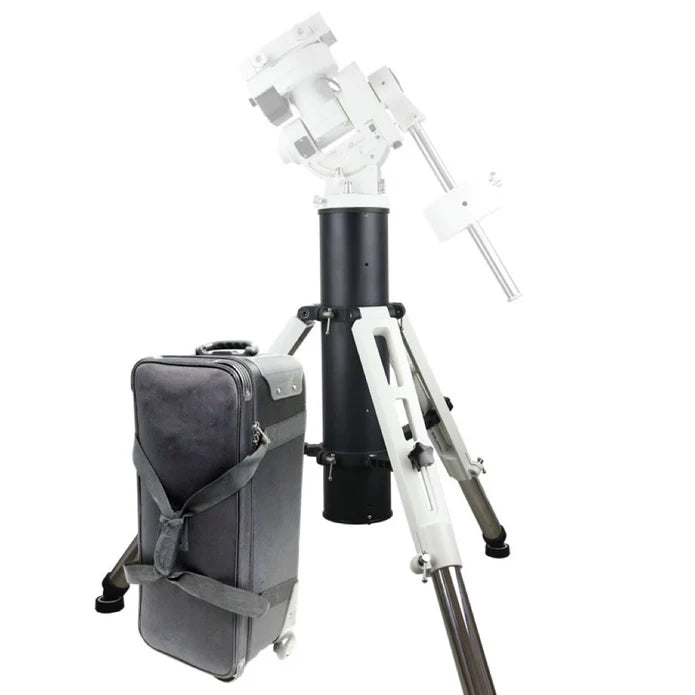

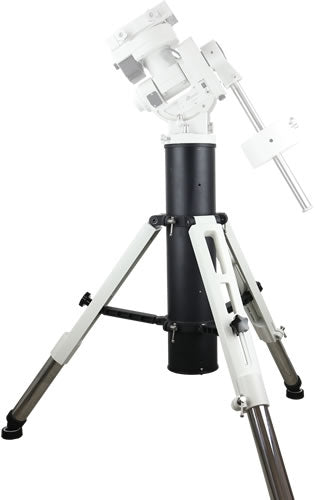

The iOptron Tri-Pier combines the strength and stability of a pier with the leveling capability and flexibility of a tripod. The Tri-Pier is made of aluminum (pier and leg tops) and has stainless steel leg extensions. Built-in vibration suppression pads are included.
The Tri-Pier fits these iOptron mounts:
- CEM60
- iEQ45/iEQ45 Pro
- iEQ30/iEQ30 Pro (may limit low latitude application)
- MiniTower/MiniTower II/MiniTower Pro (needs a center post), so please let us know if you are purchasing this Tri-Pier for a MiniTower)
The iOptron Tri-Pier also fits the iOptron CEM or ZEQ25, as well as other mounts by Takahashi, Software Bisque, or Astro-Physics with an optional Top Adapter plate.
Max Payload |
220 lb. (100 kg) |
Weight |
~25.8 lb. (11.7 kg) |
Pier Diameter |
5.7" (144 mm) with 150mm top plate |
Adjustable Height |
31.5"-42.5" (800-1080 mm) |
Uneven Ground Range |
3.35" (85 mm) |
Leg Maximum Spread |
Ø48.8" (Ø1240 mm) |
Pier Dimension (folded) |
Ø12.8"x 26” (Ø325 x 660 mm) |
|
