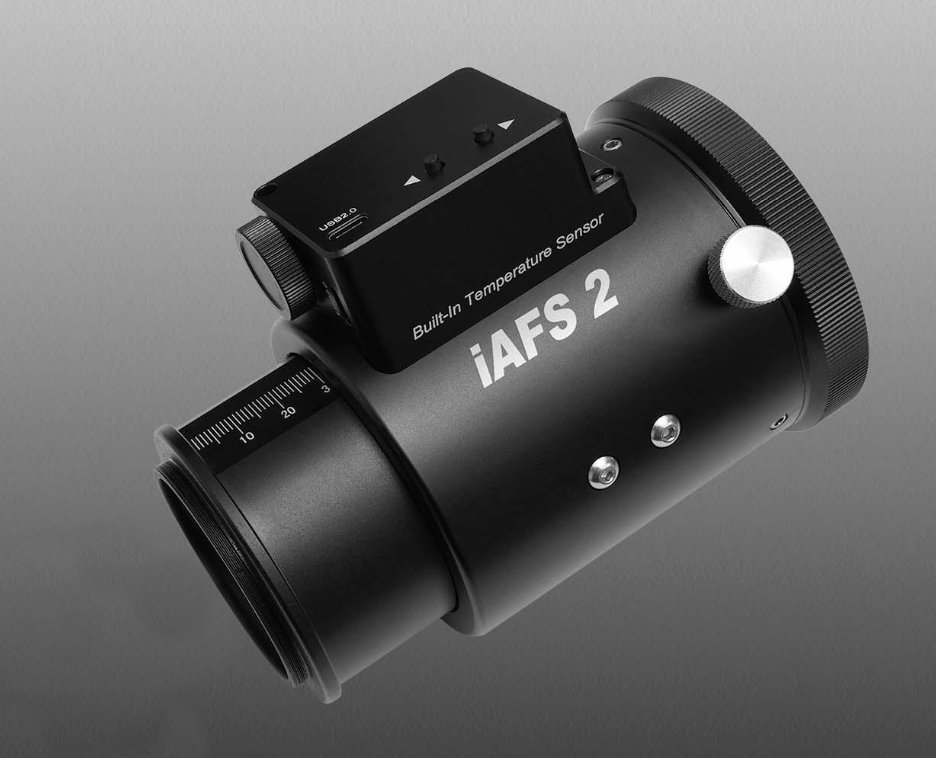

iOptron iAFS 2" Electronic Inline Automatic Focuser - FA20

Introducing the most versatile inline focuser available, the iOptron iAFS focuser with iLock technology. Utilizing a lead worm movement is the key to the iAFS focusers patented design; this passive position locking system secures most any payload (imaging train) at the stopped position, maintaining focus even as the instrument angle is changed.

The iAFS incorporates three focus modes; USB (computer control), on board directional buttons (for powered manual adjustments) and a manual focus wheel to override the motorized adjustment.

Other features of the iOptron iAFS2 include a built-in temperature sensor, multiple USB-C ports, solid all metal body, fingerprint-resistant exterior surface, 0.6 micron movement resolution, and position limiters to prevent over runs. The iAFS2, which is the 2" model, comes standard with a 2" visual back. Optional telescope adapters to fit various OTAs are available.

Features of the iOptron iAFS2 Automatic Focuser...

• Built-in temperature sensor

• Whisper quiet operation

• Powerful stepper motor


• Zero backlash

• Built-in CAA

• Three focus adjustment

• Adjustable camera ring

• Repeatable focusing

• Z-Axis Balancing

• USB connection to a computer

• ASCOM & INDI compatible

• Manual adjustment (powered or unpowered)

• Position memorizing during power off

• Compatible with most OTAs with proper adapter (sold separately)

• Extra 2XM4 threaded holes for connecting guide scope and/or AstroBox

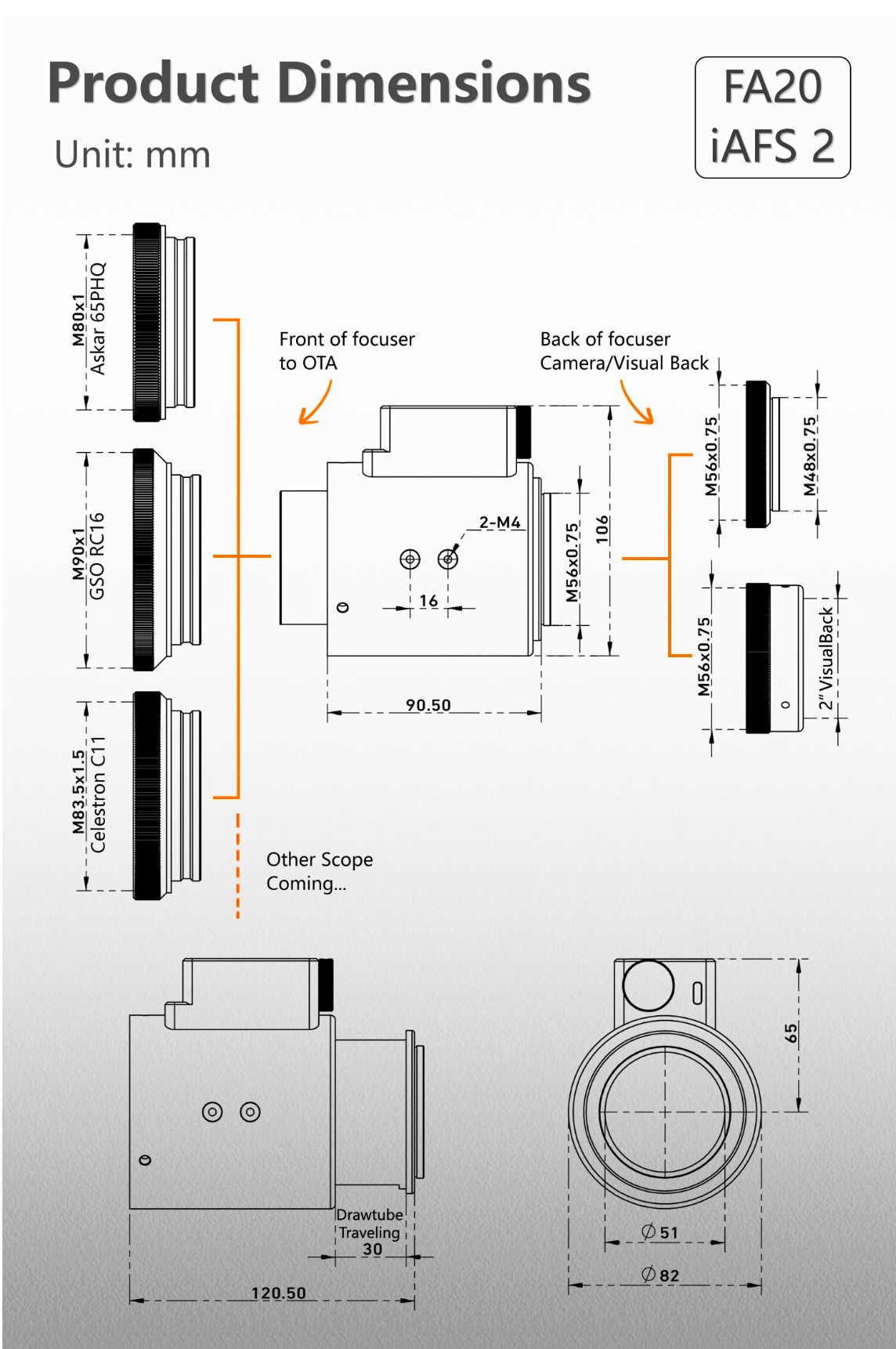

Specifications...

• Focuser Size: 2"

• Dimensions: 90.5 x 106 x 82mm

• Weight: 783kg

• Clear Aperture: 51 mm

• Max Payload: 5kg

• Drawtube Travel Distance: 30 mm

• Focusing Resolution: 0.6um

• Power/Communication Ports: Two Type C USB2.0

• Drive Train: Stepper motor with belt reduction

• Automatic Focusing: Yes

• Motorized Focusing Button: Yes

• Manual Focusing: Yes, with override

• Temperature Sensor: Yes, built-in

• Camera Angle Adjustment: Yes
