iOptron CEM40EC-NUC Center Balanced Mount Head - NUC Ready - C404AN3

Out of stock
Regular price $5,559.00 CAD

Product details

  • SKU IOP-C404AN3

iOptron CEM40EC-NUC Center Balanced Mount Head - NUC Ready

  • Center Balanced mount with innovative features
  • This model is NUC-ready
  • Mates seamlessly with an Intel NUC model with 38 mm thickness
  • Ideal for both visual observation and astrophotography
  • Maximum payload of 40 lb with the mount weight of 17.4 lb
  • Includes a High-Resolution Encoder
  • Easy to use quick-lock gear clutches
  • Periodic encoder error less than ±0.3 arcsecond
  • Permanent periodic error correction (PPEC)
  • Precision stepper motor for precise GOTO and accurate tracking
  • Go2Nova 8407+ controller with Advanced GOTONOVA GOTO Technology and built-in heater
  • Integrated ST-4 autoguiding port
  • 32-channel Global Positioning System (GPS)
  • USB 2.0 communication port
  • Cable management system
  • 8" Losmandy D and Vixen style universal saddle
  • All metal, CNC machined with black anodized finish
  • Includes a LiteRoc Tripod, 1.75" size

The iOptron CEM40EC-NUC Center Balanced Mount Head proves that iOptron has done it again! Using ideas and engineering applied to a time tested design, the iOptron CEM40EC-NUC brings you the next generation Center Balanced Equatorial mount. An elegant CNC body is the first indicator the CEM40EC-NUC is a top quality mount; you will find this is true in both its form and its function. Utilizing clever engineering, they were able to provide the iOptron CEM40EC-NUC Center Balanced Mount Head with an incredible 2.30 payload-to-mount weight ratio. This heavy-duty mount can precisely GO-TO an object and track it with up to 40 lb of gear on-board, but while the Head weighs only 17.4 lb. An amazing feat. This is the "EC" model, which incorporates a High-Resolution optical encoder. It provides a Periodic encoder error less than ±0.3 arcsecond RMS.

The concept of the "NUC" (stands for "Next Unit of Computing") was designed and introduced by Intel Corporation; first launched in early 2013. The NUC has since developed over ten generations. The NUC motherboard usually measures approximately 4" by 4" (10.16 cm by 10.16 cm), which tends to promote a small sized package. NUC is a line of small-form-factor barebone computer kits or custom-configured computer modules which can be structured in various ways, to satisfy a customer's specific needs. Various versions of a NUC computer are now available for purchase via the internet.

A true barebone NUC kit consist of the board, in a plastic case with a fan, an external power supply, and a VESA mounting plate. Intel will sell just the NUC motherboards, which have a built-in CPU. The user can configure the rest per their need. This does require some detailed computer knowledge. Third-party cases for NUC boards are also available.

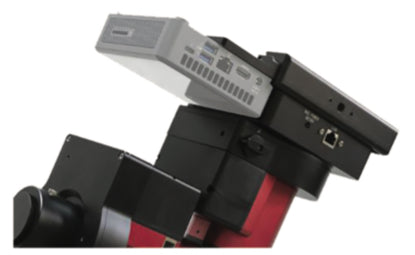

The iOptron NUC mounts feature a bracket located at the lower front position of the saddle which will securely hold the NUC mini-computer in place. They have provisions for the mount control connections (LAN and USB) and power (19 Volts or optional 12 Volts DC) located next to the NUC computer.

NOTE: This Mount does NOT include a NUC mini-computer! The user must provide and install a NUC mini-computer.

The iOptron CEM40EC-NUC Center Balanced Mount delivers a Periodic Error of less than ±0.3 arcsecond. This gives you the precision tracking you need for the best possible astro-imaging results, along with a great payload capacity and easy operation. The superb mechanical construction and choice of premium drive components for this mount provides the tracking and slewing performance you expect from iOptron. Retaining the inherent properties of the center balance design, this relatively compact medium payload mount delivers what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking (PE < ±0.3 arcsec RMS) the CEM40EC-NUC is a solid tracking mount for both observers and imagers.

Large levers are included on the quick-lock drive engagement system. These levers make it easy to snap its drive gears into place even when wearing gloves. There is little chance of your cables getting snagged with the CEM40EC-NUC 's internal advanced cable management system. This iOptron CEM40EC-NUC Center Balanced Mount Head is the ideal, easy-to-use Center Balanced GoTo mount system for heavier telescopes or imaging systems, in the up-to 40 lb range, which will satisfy all your observing and astro-imaging needs for years to come.

A new, patent-pending Universal Self-Centering Saddle (USCS) accommodates both the Losmandy and Vixen style dovetail plates. CEM40EC-NUC mounts utilize reliable stepper motor drive systems for accurate pointing and tracking. These motors have a low power-consumption technology. A 212,000+ object library with star identification, GPS, a few of the desirable features standard on a CEM40EC-NUC mount.

NOTE: This product is the mount head plus one each 11 pound Counterweight. It also includes a Hard Case and it includes a LiteRoc Tripod, 1.75" size.

What's In The Boxes:

  • iOptron CEM40EC-NUC Mount
  • Go2Nova 8407+ Hand Controller
  • 212,000+ Object Library with Star Identification
  • Stainless steel counterweight shaft
  • One 11 lb (4.99 kg) counterweight
  • CEM40 GPS module
  • AC adapter (100 V - 240 V) AC to DC power adapter
  • 2 coiled control Cables (6P6C RJ11 to RJ11, straight wired)
  • Serial cable (RS232 to RJ9)
  • USB cable
  • Quick Start Guide
  • Includes a Hard Case
  • Includes a LiteRoc Tripod, 1.75" size
  • iOptron subsidized "TheSky Imaging Edition"


Mount: Center-balanced Equatorial Mount (CEM)
NUC-Ready: Yes, Mount is NUC-Ready
Payload: 18 kg (40 lb), exclude counterweight
Mount weight: 7.9 kg (17.4 lb)
Payload/Mount weight ratio: 2.30
Material: All metal
Encoder: High-Resolution Optical Encoder
Latitude adjustment range: 0° ~ 60°
Azimuth adjustment range: ±6°
PE (by encoder): < ±0.3 arcsec
Worm period: 400 sec
Right Ascension worm wheel: 110 mm, 216 teeth
Declination worm wheel: 110 mm, 216 teeth
Worm: 17 mm
Right Ascension axle: 45 mm, steel
Declination axle: 45 mm, steel
Right Ascension bearings: 68 mm
Declination bearings: 68 mm
Counterweight shaft: 28 mm x 280 mm stainless
Counterweight: One, 5 kg (11 lb)
Motor drive: Precision stepper motor w/128 micro-step
Resolution: 0.08 arc seconds (200 PPS)
Slew speed: 4.5 deg/sec (1080x) max.
Hand Controller: Go2Nova 8407+, 8 line 21 character LCD
Power requirement: DC 12 V, 5A (5.5 mm/2.5 mm plug)
Power consumption: 0.6 A (Tracking), 0.9 A (GOTO)
Polar Scope: None
Meridian treatment: Stop (0-10° pass), auto flip
Zero position: Automatic zero search
Park position: Horizontal, vertical, current, Alt/Az input
Level indicator: YES
Dovetail saddle: 8" Losmandy-D and Vixen
Guiding port: ST-4
Communication port: USB 2.0
Cable management: 2-DC12V (3A), 3-USB2.0, 1-DC in/1-DC out, iPort, 1-USB input for mount and USB hub
Operation temperature range: -10 deg C to +40 deg C
Hard case: Yes, included
Pier/Tripod: Yes, Includes a LiteRoc Tripod, 1.75" size
Warranty: Two year, limited
