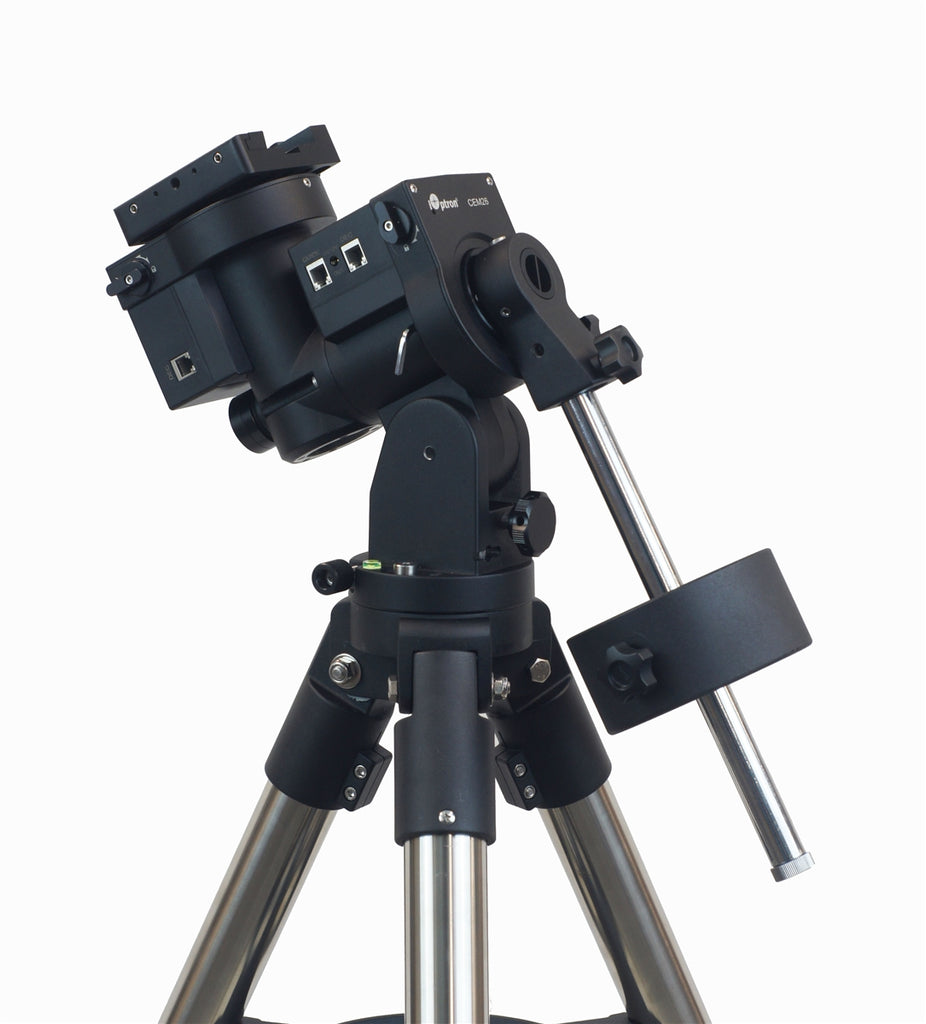

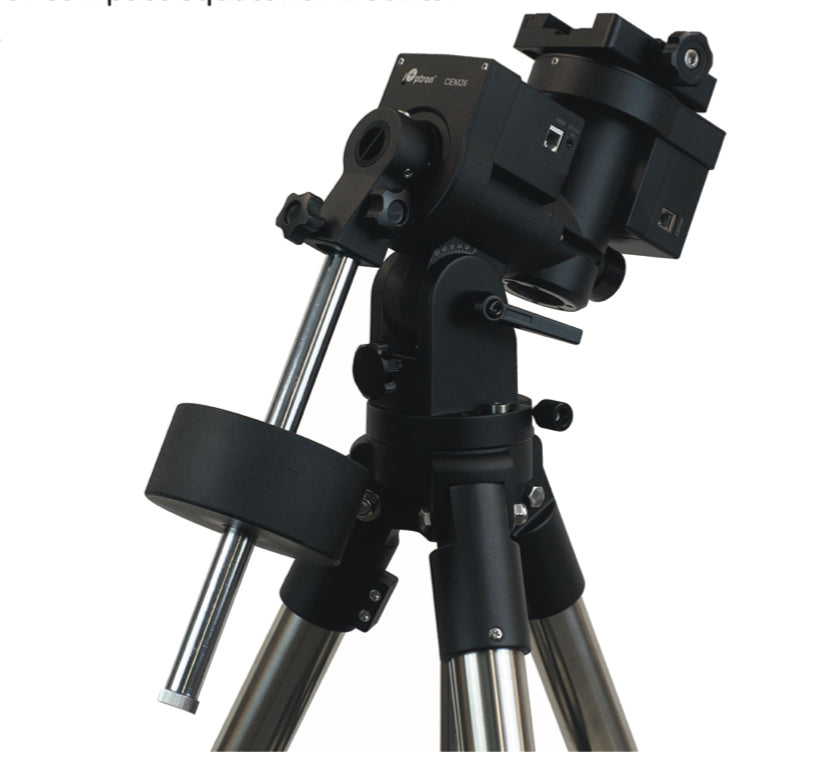

iOptron CEM26 Center-Balance GoTo Equatorial Mount - AccuAlign Polar Finder - LiteRoc - C261B3
Couldn't load pickup availability
On Sale Now through November 30th! Save 20%!
iOptron CEM26 Center-Balance GoTo Equatorial Mount - AccuAlign Polar Finder - LiteRoc
- Center-balanced Equatorial Mount (CEM)
- Great for Visual Use and Astro-Imaging
- Large, Easy, Quick-lock Gear Clutches
- Built-in AccuAlign Optical Polar Finder
- Max Payload of 26 lb (11.8 kg)
- Mount weighs only 10 lb (4.5 kg)
- Precision Stepper Motor - Precise Go-To
- Includes Go2Nova 8409 Controller/Technology
- +/- 10 arcsecond PEC
- Permanent PEC (PPEC)
- Includes Built-in Wi-Fi & ST-4 autoguider port
- Includes Premium LiteRoc 1.75" Tripod
Like their predecessors, the CEM26 mounts were designed with portability in mind, weighing in at only 10 lb. But, it can support up to a 26 lb payload an incredible 2.6 mount weight-to-payload ratio. The key to providing such an impressive ratio is the "CEM design" which focuses the mount and payload weight directly on the center of the tripod rendering “natural stability”. The center-balanced design mount puts the weight of the payload at the center of gravity allowing for greater mechanical mount stability. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time, because the polar scope is not blocked by the declination shaft.
In addition, iOptron has added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves), built-in Wi-Fi, enabling unparalleled connectivity, and recordable permanent periodic error correction (PPEC) to repeat optimal PEC training sessions. The CEM26, Model C26B3 Center-balanced Equatorial Mount from iOptron delivers precise pointing and accurate tracking. The CEM26, Model C26B3 sets a new standard for compact equatorial GoTo mounts.
The iOptron CEM26, Model C26B3 Equatorial Mount is equipped with the latest advanced GOTONova GO-TO technology, which means it is now one of the most powerful and accurate GO-TO mounts available. Its database includes over 212,000+ objects! The Go2Nova Hand Controller is intuitive and very easy to use. Its large 4-line LCD screen simplifies the process of setting telescope parameters and locating objects, to make the astronomer's task even easier.
This CEM26, Model C26B3 mount has an AccuAlign Optical Polar Scope installed for quick and easy polar alignment. It also includes a Premium LiteRoc 1.75" heavy duty stainless steel Tripod.
What's In The Boxes?
This model includes: A CEM26 Center-Balance Mount Head, CW shaft, 10 lb Counterweight, Go2Nova 8409 Controller/Technology, Cord for Controller, Integrated AccuAlign Polar Scope, Premium LiteRoc 1.75" Tripod.
Specifications:
| Manufacturer: | iOptron |
| Product SKU: | C261B3 |
| Function: | CEM - Center-balanced Equatorial Mount |
| Weight: | 10 lb (4.5 kg) |
| Max Payload: | 26 lb (11.8 kg); Not Including Counterweight |
| Construction: | All Metal, Metal Casting, CNC Machined |
| Ext. Finish: | Black, Powder Coated |
| Adjust Range: | 0° to 60° Latitude; +/- 6° Azimuth |
| PEC: | PPEC; For 600 sec. Period |
| RA, Dec Worms: | 88 mm, 144 Teeth, Zero Backlash |
| RA, Dec Bearings: | 55 mm, Ball Bearings |
| Counterweight Incl: | 1 each, 10 lb |
| Motor Type: | Stepper; 1.8° 128X Microstep |
| Motor Resolution: | 0.17 arcsecond |
| Transmission: | Synchronous Belt |
| Power Req: | 12 Volt DC, 5 A |
| AC Adapter Incl: | 100 V - 240 V |
| Hand Controller: | Go2Nova 8409 Controller |
| Polar Scope: | Internal AccuAlign Optical Polar Finder |
| Max Slew Rate: | 6° per second |
| Guiding Port: | ST-4 |
| Comm. Port: | USB, Wi-Fi (Built-in Wi-Fi) |
| Tripod Type: | Metal, Premium LiteRoc 1.75" Tripod |
| Optional Tripod: | Yes, LiteRoc |
| Case: | No, Not Included W/This Model |
| Autoguiding: | Not Included, Available Optional iGuider |
| GPS: | Optional External; Not Included |
| Warranty: | 2-Year, Limited |
