equatorial mounts & wedges

Celestron CGX-L Equatorial Mount Without Tripod - 91532

Celestron   ——   SKU: CEL-91532
$3,899.00 CAD
Add to cart
Product Info
Shipping

Celestron CGX-L Equatorial Mount Without Tripod

  • Increased 75 lb load capacity
  • Exceptional load capacity to weight ratio

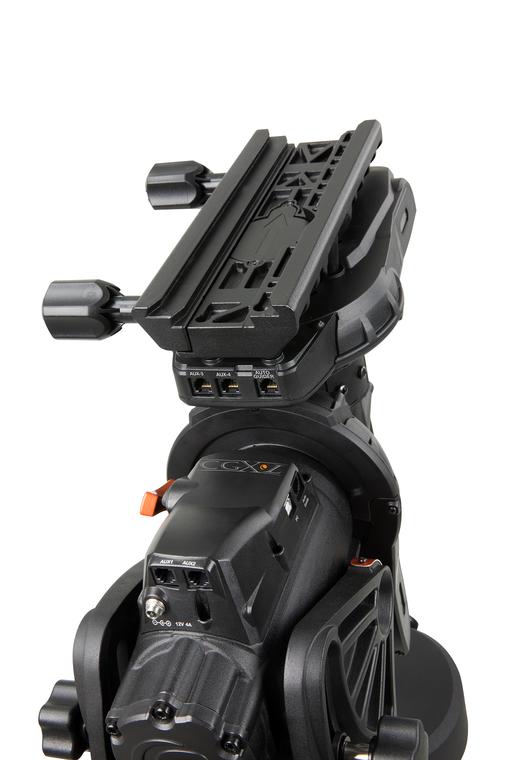

  • Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
  • Larger 144 mm diameter worm wheels to better and more accurately drive heavier loads
  • Longer 270 mm dovetail saddle to better support larger optical tubes
  • Heavy duty, 31.5 mm stainless steel counterweight shaft to support additional counterweights

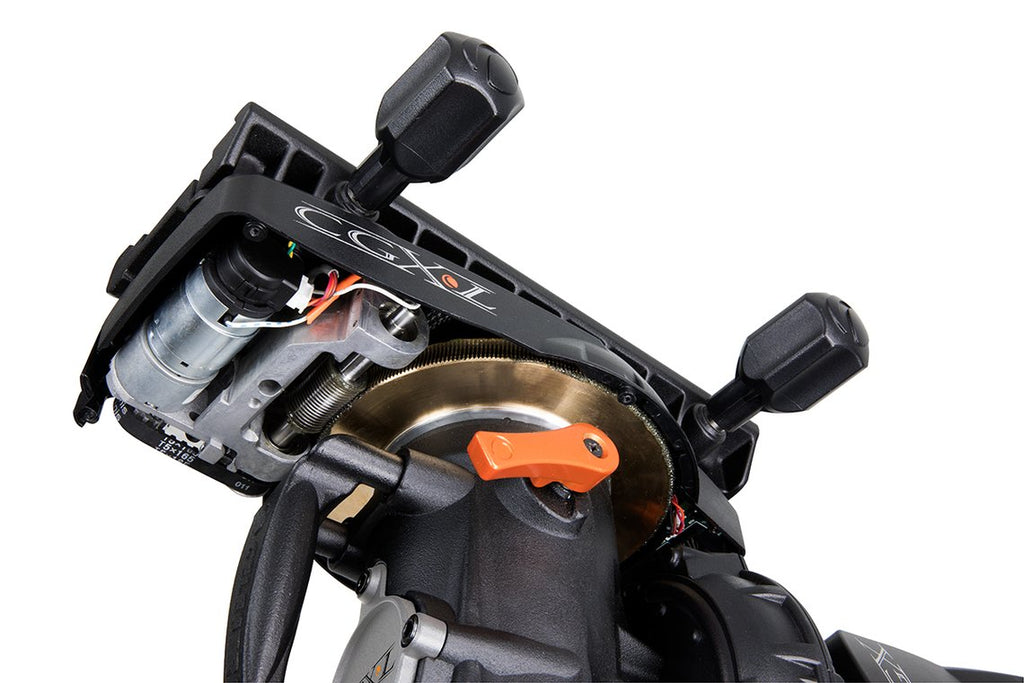

  • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
  • Internal cabling for worry-free remote operation
  • Power input and lower accessory ports remain stationary while the mount slews to avoid snags
  • Includes Celestron's new PWI telescope control software, co-developed by PlaneWave Instruments. Software features multi-point mount modeling for extremely precise pointing accuracy
  • Adjustable EQ head position to optimize center of gravity and fully utilize the increased 3°-65° latitude range

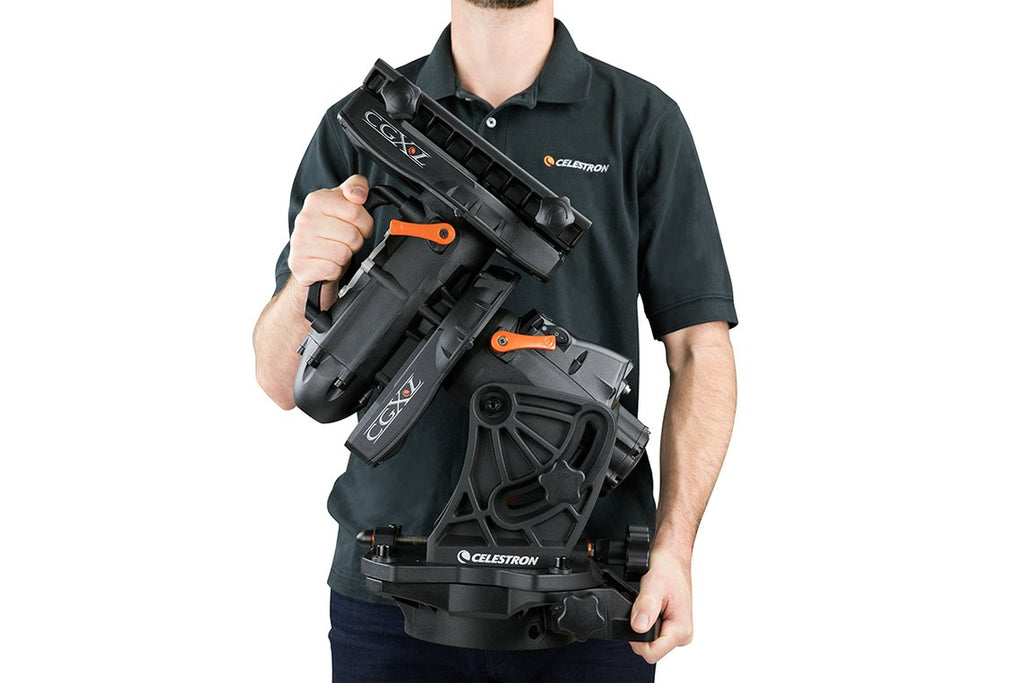

  • Integrated handles for easy transport and portability
  • All-new ergonomically designed dovetail clamping knobs

Celestron's newly designed CGX-L Computerized Equatorial mount is the latest addition to their fully computerized equatorial mount series. Capable of carrying Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

Key design goals included: larger 144 mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270 mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. Additional design features made mechanical and ergonomic improvements throughout this mount, to make the mount sturdier, easier to use, and easier to transport.

Note: This CGX-L Computerized Equatorial mount product is supplied WITHOUT any tripod, for those users who may already have a suitable tripod or who may wish to install this mount on a permanent pier.
