Baader 2" ClickLock Mirror Diagonal - CLDIAG-2

Baader Planetarium   ——   SKU: BAA-CLDIAG-2
$401.00 CAD
Add to cart
Product Info
Shipping

Baader 2" ClickLock Diagonal Mirror

  • 2" ClickLock Mirror Diagonal
  • Oversized 2 "dielectric lambda /10 flatness with 112mm optical length
  • Mirror repels UV and IR radiation, provides high security for solar observations in white light and with Ha-type solar filters
  • Scratch-resistant, hard-coated mirror surface for safe cleaning, scratch-resistant even in extreme conditions

With their ground-breaking introduction several years ago of the all-dielectric 2" Maxbright Star Diagonal, Baader Planetarium brought mirror star diagonals into the 21st century. The new 2" Clicklock Star Diagonal takes this innovation another step further. Like its predecessor, the 2" Clicklock Star Diagonal uses proprietary Baader all-dielectric mirror coatings. Multi-layer coatings result in high surface stresses that cause a star diagonal's mirror to warp as much as 1/2 wave, ruining the figure and distorting the optical wavefront. Baader's proprietary coating process maintains the 1/10 wave mirror surface accuracy - even after coating!

Baader's dielectric coatings deliver an amazingly high 99% photo-visual reflectivity along with an extremely hard durable surface. The ultra-hard mirror coatings will last lifetimes without losing reflectivity, and may be cleaned with normal care, without fear of scratches. The precision mirror is also oversized, and combines with the large ID nosepiece to pass the largest image cone possible in a 2" format.

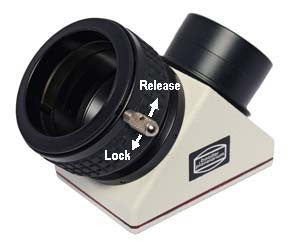

The new 2" Clicklock non-marring eyepiece holder delivers the same acclaimed simplicity and security as its smaller 1.25" Clicklock cousin. With an effortless 20 degree twist of the rubber knurled ring (which also includes a convenient fingertip lever), the clicklock holder clamps 2" eyepieces so securely you can lift your scope with them. The unique action utilizes 3-point clamping which positively and accurately locks 2" eyepieces without any of the wobbling and misalignment that can occur with single point clamps.

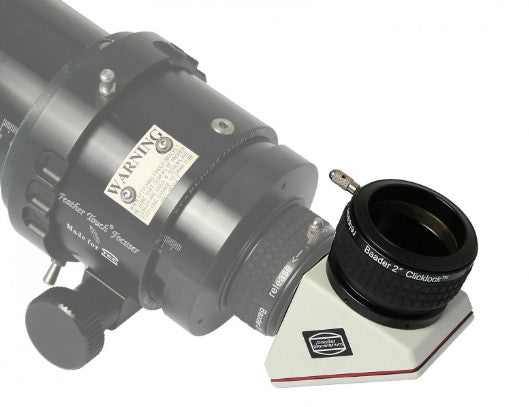

SCT Users: The diagonal body's input 2" threading is compatible with the standard Celestron/Meade 2" rear cell threads, enabling you to directly thread it onto your SCT. NexStar 8 or 8i users will find that this diagonal couples close enough to swing through zenith without hitting the RA base! Please note, an additional Baader SCT LockRing is required for direct attach to SCTs.

Specifications:

SKU (#) 2956100
WEIGHT (KG) 0.584
OPTICAL DESIGN Mirror Diagonal
INNER CONNECTION (LENS SIDED) Thread, M48, 2"
OUTER CONNECTION (LENS SIDED) Barrel, 2"
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Clamp, 2"
REFLECTION SURFACE Dielectrically coated
IMAGE ORIENTATION Erect image, Mirror inverted
OPTICAL TUBE LENGTH 112
CLAMPING SYSTEM ClickLock
DEFLECTION ANGLE 90°
INNER DIAMETER / CLEAR APERTURE (MM) 46,6
