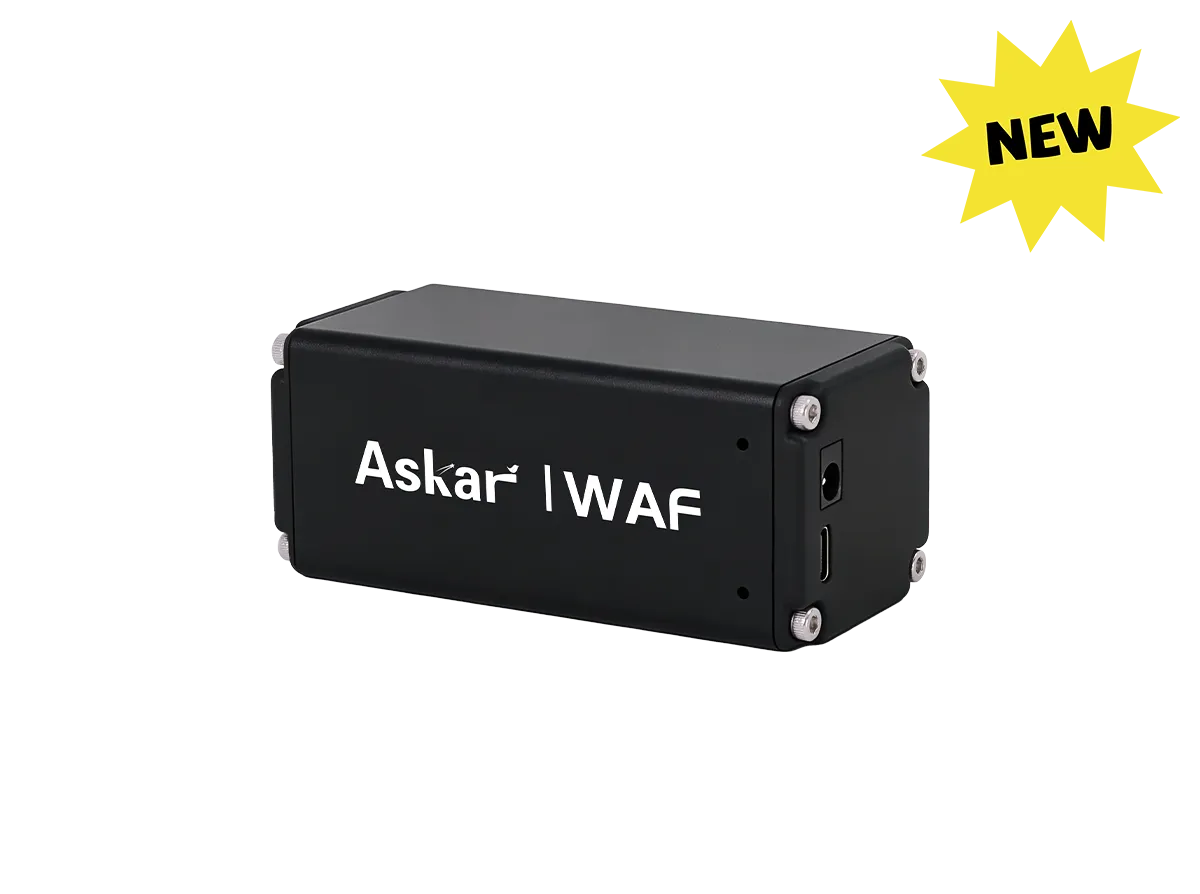

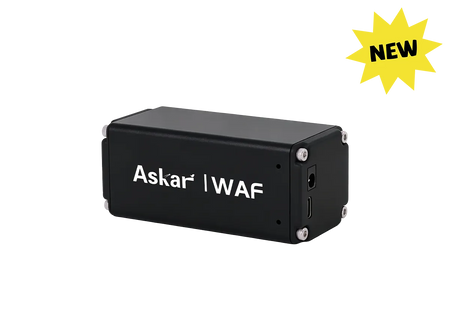

Askar WAF Worm & Gear Automatic Telescope Focuser

About the Askar WAF:

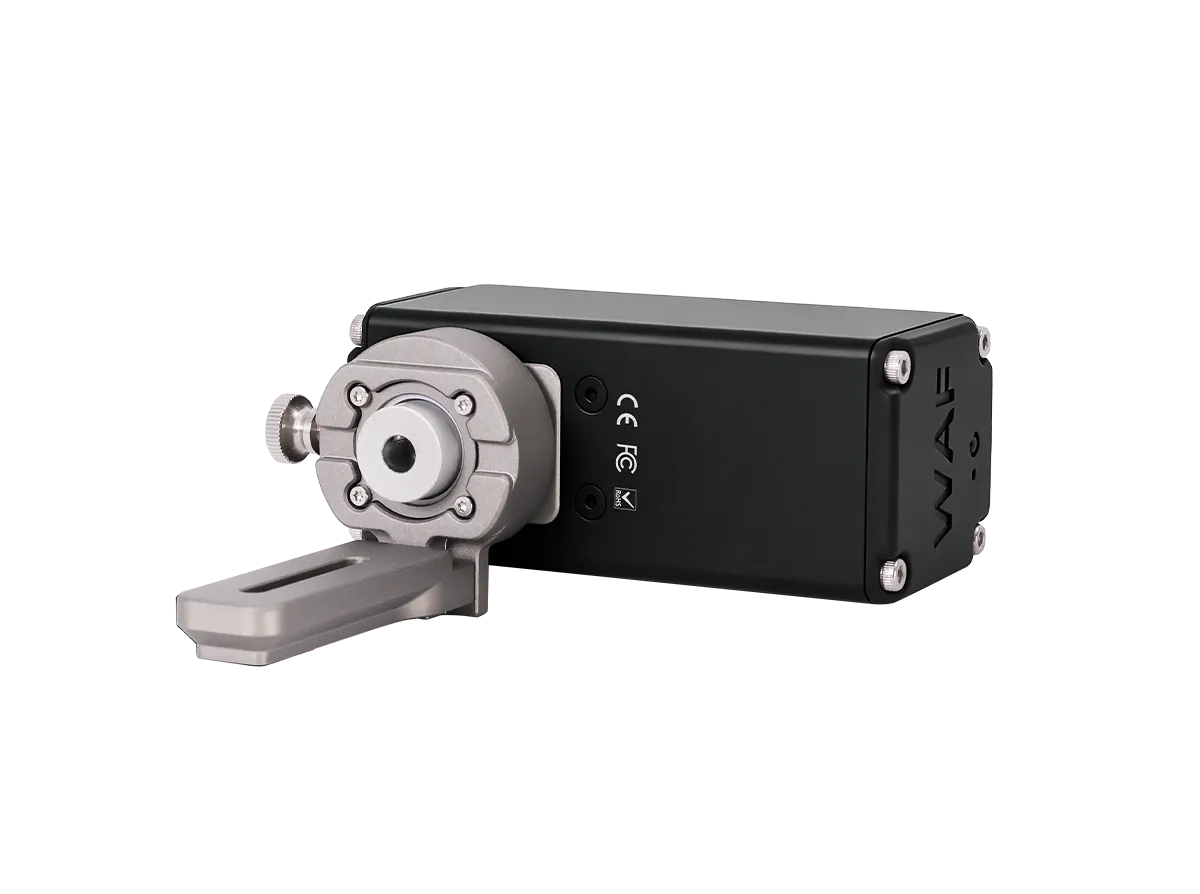

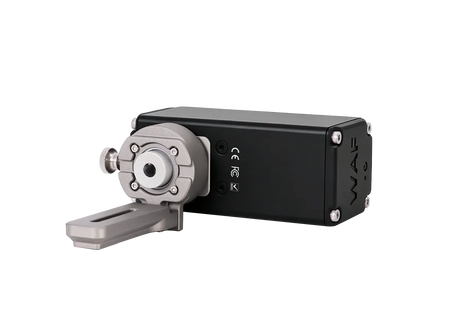

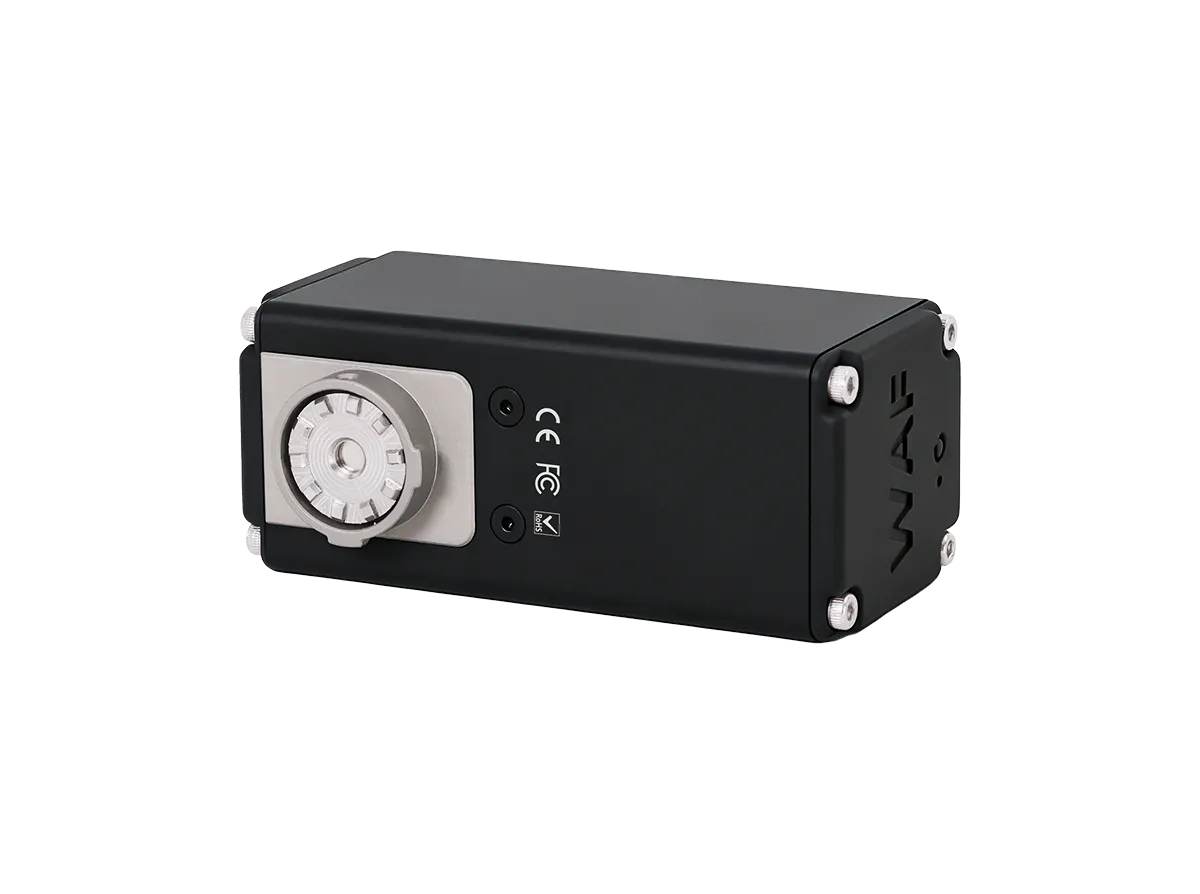

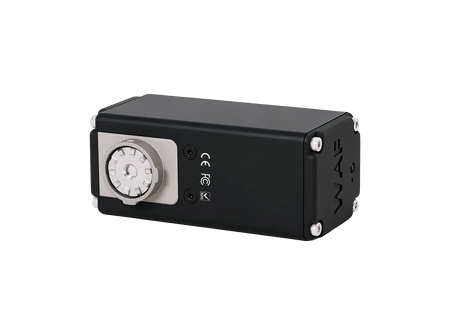

The Askar WAF features a universal structural design. Its multi-functional socket supports adjustable installation, making it compatible with the vast majority of telescope focusers on the market. The quick-release structure allows fast setup and removal without complex operations.

The Askar WAF Electronic Focuser fully supports ASCOM Alpaca and all ASCOM Alpaca-compatible third-party software . No additional driver is required – plug-and-play with NINA. The device also supports the INDIGO protocol( corresponding driver required in advance).

Built with a high-torque, high-precision stepper motor, combined with a precision worm-and-gear transmission, the WAF delivers ample torque for focusing. It accurately executes tiny step movements, achieving single-step positioning accuracy below 0.005 mm.

The WAF offers outstanding load capacity - up to 20 kg.

The device supports both wired and wireless operation modes to flexibly adapt to different usage scenarios and equipment setups.

The Askar APP supports device naming, grouping management, and parameter fine-tuning.

Specifications

Parameters
Motor Type	Worm-gear stepper motor
Gear Reduction Ratio	1:99
Minimum Resolution	0.0182°
Maximum Output Torque	20 kgf/cm
Equivalent Load	20 kg
Output Speed	2.6 rpm
Power/Data Interface	DC-044 12V / Type-C
Input Current	1 A min
Body Dimensions	101 mm × 47 mm × 43 mm
Body Weight	373 g
Communication Protocol	ASCOM Alpaca and Indigo
Supported Software	Askar APP, ASCOM Alpaca third-party platform software (e.g., N.I.N.A.)
* We will continue to expand the compatible communication protocols and supported software. For updates, please follow Sharpstar Optics official website.
