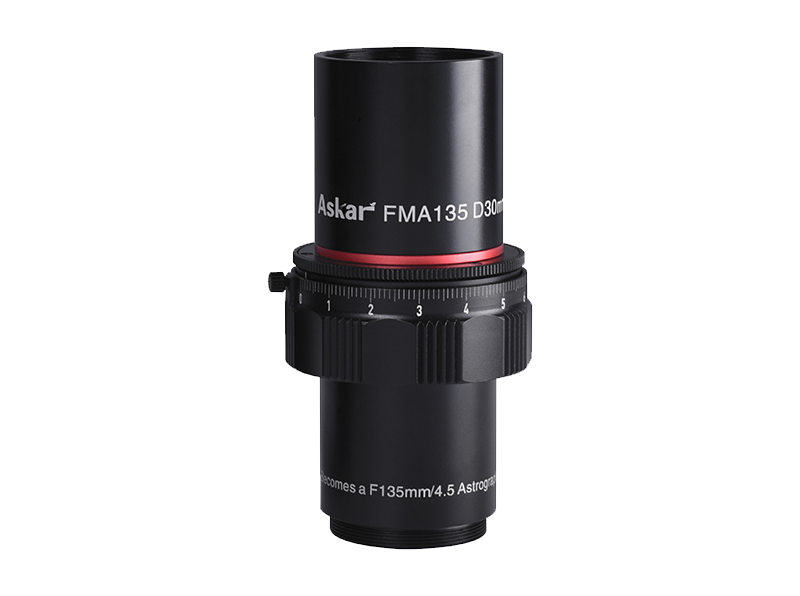

Askar FMA135 - 30 mm f/4.5 Triplet APO Astrograph Lens - FMA135
Couldn't load pickup availability
This super travel-friendly high quality 30 mm f/4.5 astrograph lens from Askar can support your APS imaging as well as perform nicely as a finder, guider, or for visual use. As an astrograph, the FMA135 includes a built-in flattener along with the primary APO triplet lens (one of which is made of ED glass) system. The flattener also contains three elements and allows for sharp images to the edges of the field as well as contributing to reducing chromatic aberrations.
The Askar FMA135 has a focal length of 135mm and will perform wonderfully well as a manual lens. There is a male M42x0.75 male thread on the rear of the lens that will work for most APS astronomy cameras as well as DSLR's with the manufacturer-specific adapter (sold separately). A 1.25" visual adapter (included) will allow the insertion of 1.25" eyepieces.
The front end of the FMA135 has 1.25" female threads to accept 1.25" filters. A tube ring with Vixen-style foot comes with the astrograph lens, ready to be attached to a variety of equipment.
Specifications
|
FMA135 |
||
|
Aperture |
30mm |
|
|
Focal length |
135mm 135mm（plus the flattener） |
|
|
Focal ratio |
F4.5 F4.5（plus the flattener） |
|
|
Objective type |
Air-spaced APO triplet（including an ED glass） Sextuplet refractor for APS imaging |
|
|
Overall length |
113mm（photographic mode with flattener） |
|
|
Total Weight (Including tube ring&dovetail plate） |
280g |
|
|
Rear-end adapter type |
M42×0.75 thread（for imaging） 1.25" visual adapter（for visual observation） |
|
|
Package information |
FMA135（one set） Tube ring with foot（one piece） 1.25" visual adapter（one piece） screw（five pieces） manual（one piece） |
|
