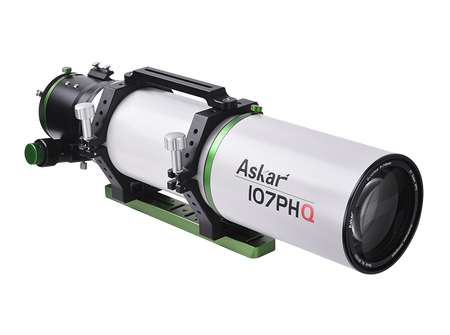

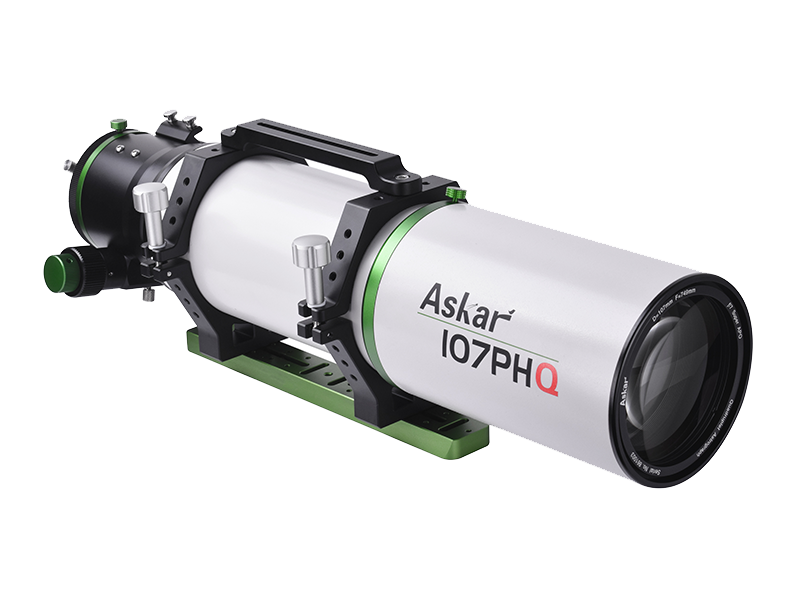

Askar 107PHQ - 107 mm f/7 Quadruplet Air Spaced Astrograph - 107PHQ

The Askar 130PHQ is a long focal ratio, flat field quadruplet astrograph. Instead of buying extra flatteners, calculating the back focus for your flattener and then adding extensions or adapters to match the calculated distance, astrophotographers can simply equip the Askar 107PHQ with any imaging device, keep the target in focus, and then the whole optical system is ready for imaging.

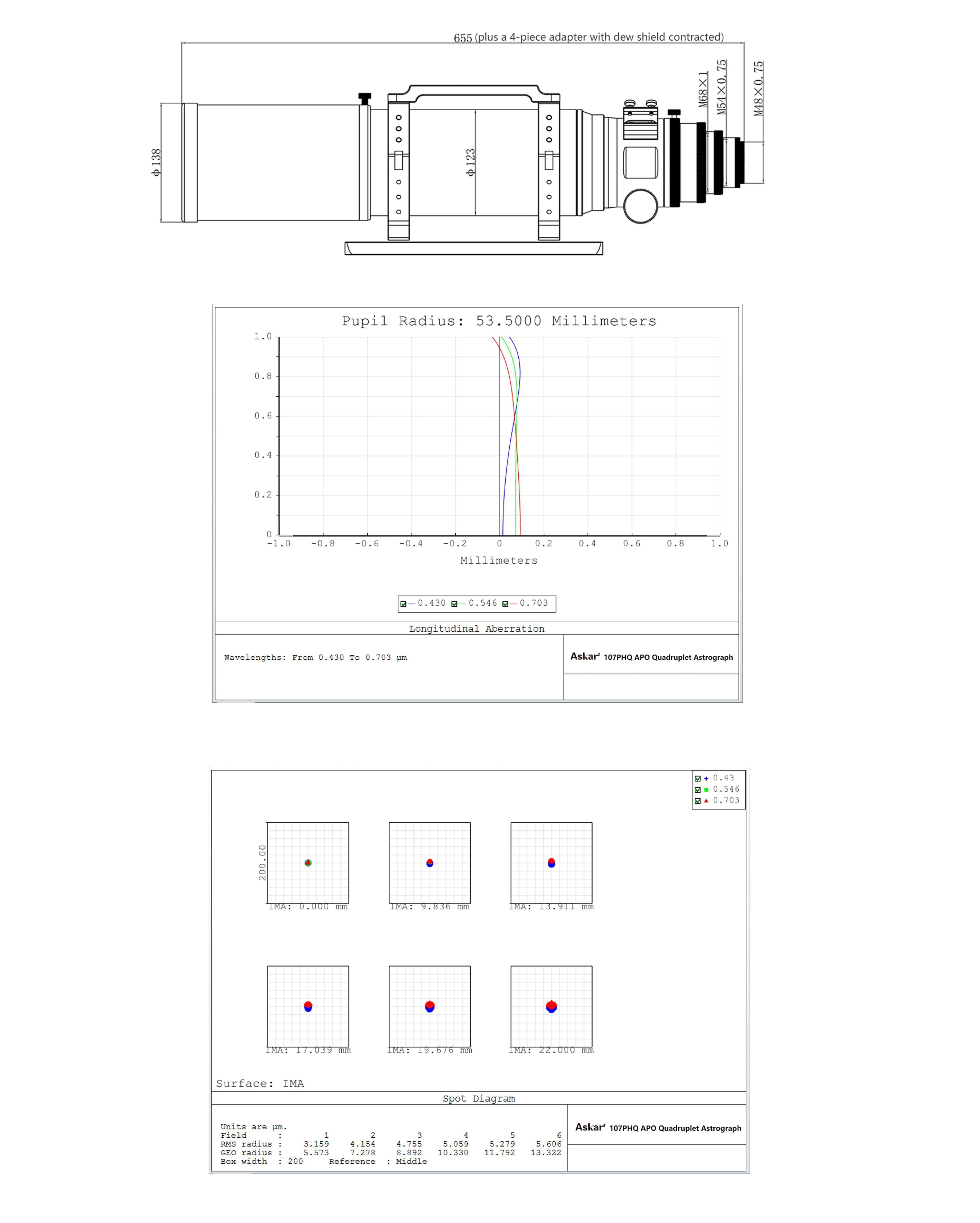

The 107PHQ has an aperture of 107 mm,  a focal ratio of f/7, and a focal length of 749mm. The quadruplet lens with two ED glasses offers excellent control of chromatic and other aberrations. With its self-flattening design, the Askar 107PHQ Astrograph offers strong advantages in astronomical imaging. It supports a 44mm image circle, has a fine spot diagram with just a tiny distortion of the peripheral stars, and its central RMS radius is only 3 microns.

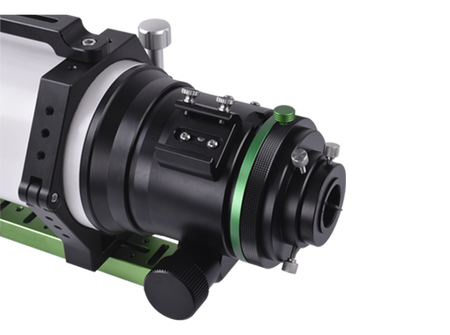

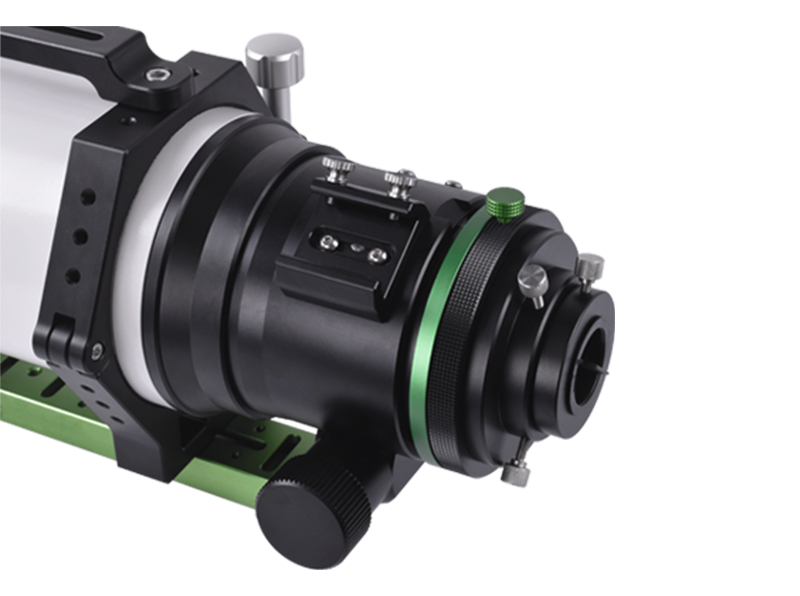

This beautiful 107mm quad refractor comes with a telescopic lens hood, a high quality CNC machined and painted tube and attractive decorative parts. The 3.4" rigid focuser supports a load of 8kg and has a long travel distance of 95 mm.  It comes with M68, M54, and M48 adapters and a finder base on board.  The included 300 mm Vixen-style dovetail plate, together with a sturdy double tube ring and case, is perfectly suited for viewing and imaging.

107PHQ Specifications

• Aperture: 107 mm

• Focal Length: 749 mm

• Focal Ratio: f/7

• Objective Lens: Quadruplet air-spaced APO (2 ED elements)

• Image Circle: 44 mm

• Length with Dew Shield Retracted: 603 mm

• Length with Dew Shield Extended: 754 mm

• OTA Weight: 5.7kg

• OTA & Included Accessories Weight: 6.9kg

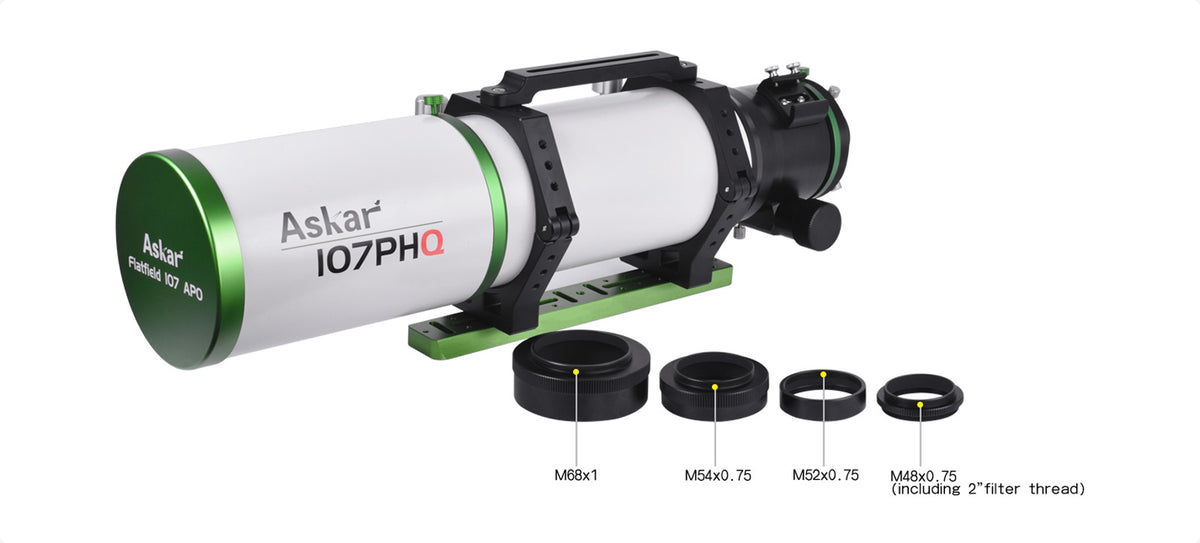

• Rear End Thread Type: M86x1 to M68x1; M68x1 - M54x0.75; M54x0.75 - M52x0.75, and M52x0.75 - M48x0.75 (with 2" filter thread inside)

• 4-Piece Photographic Adapters: M48x0.75

Maximum Additional Accessory Length for Imaging
with Focuser Fully Retracted

• From base of M48x0.75 Male Thread: 79 mm

• From base of M54x0.75 Male Thread: 99 mm

• From base of M68x1 Male Thread: 119 mm

• From base of M86x1 Male Thread:  149 mm

Maximum Additional Accessory Length for Observing
with Focuser Fully Retracted

• From base of 2" Visual Back: 120 mm
