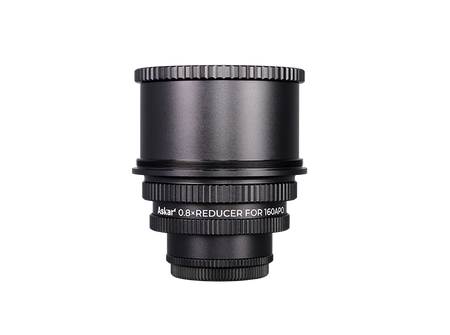

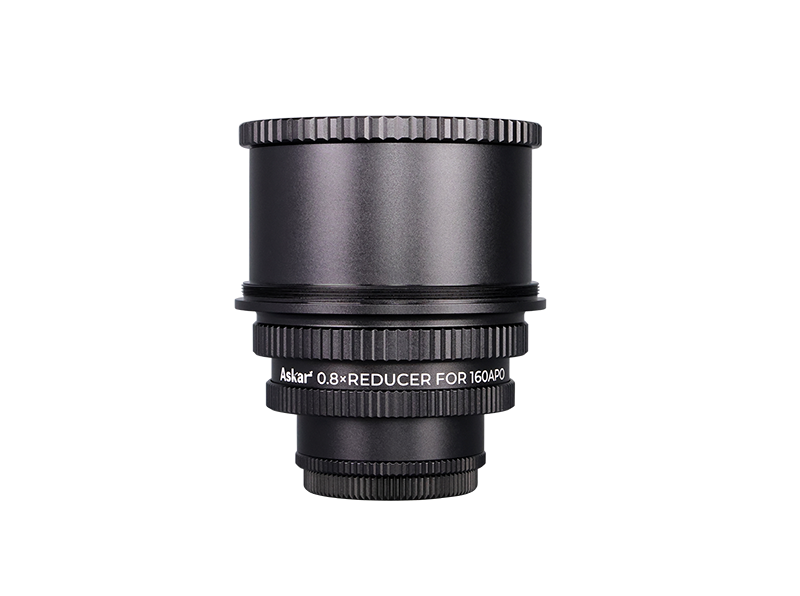

Askar 0.8X Reducer for 160APO - 160APO-RED
Couldn't load pickup availability
The Askar 160APO 0.8X Reducer effectively lowers the focal ratio to f/5.6. It also provides a flattening effect while presenting a wider field of view and faster exposure times.

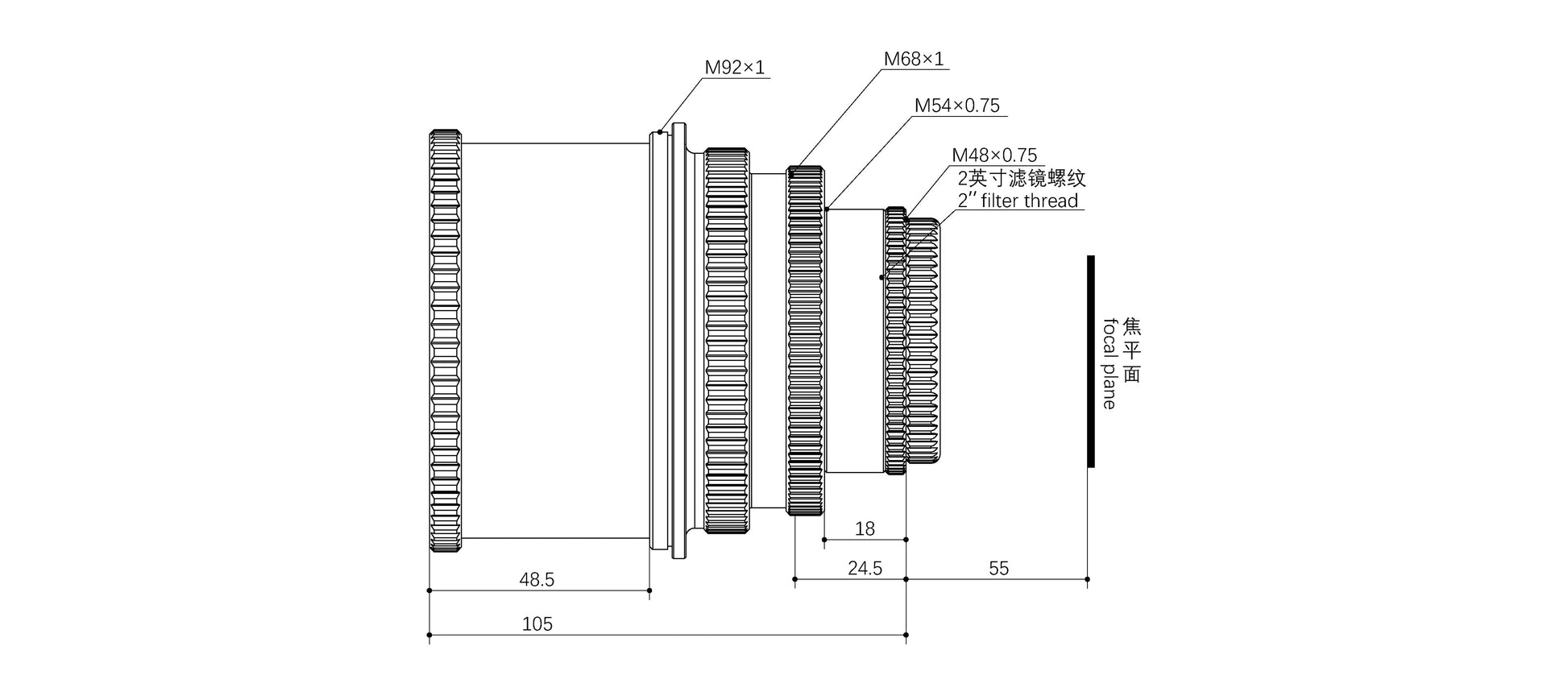

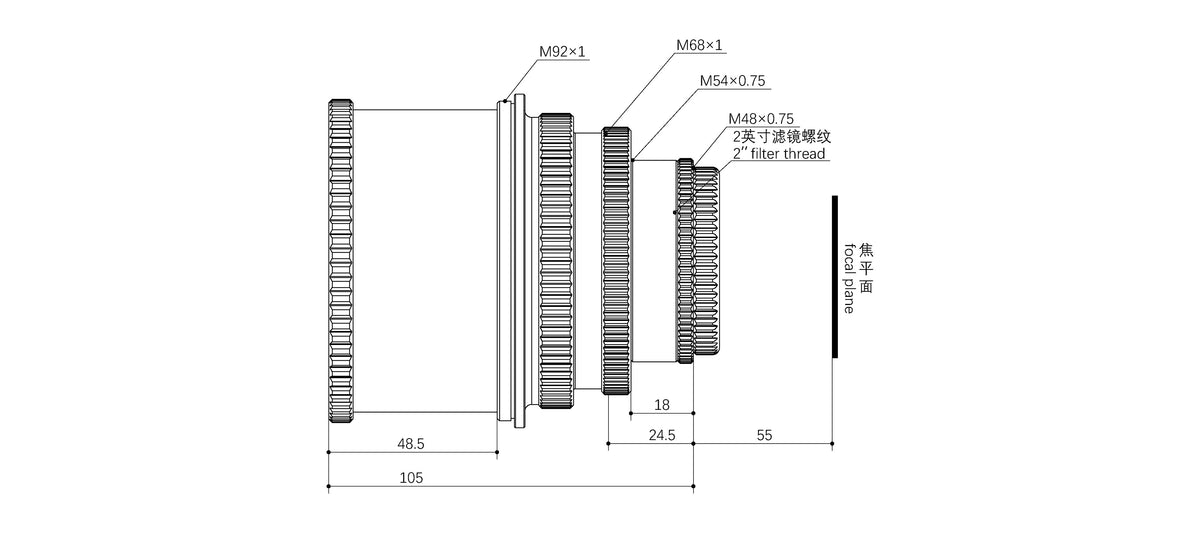

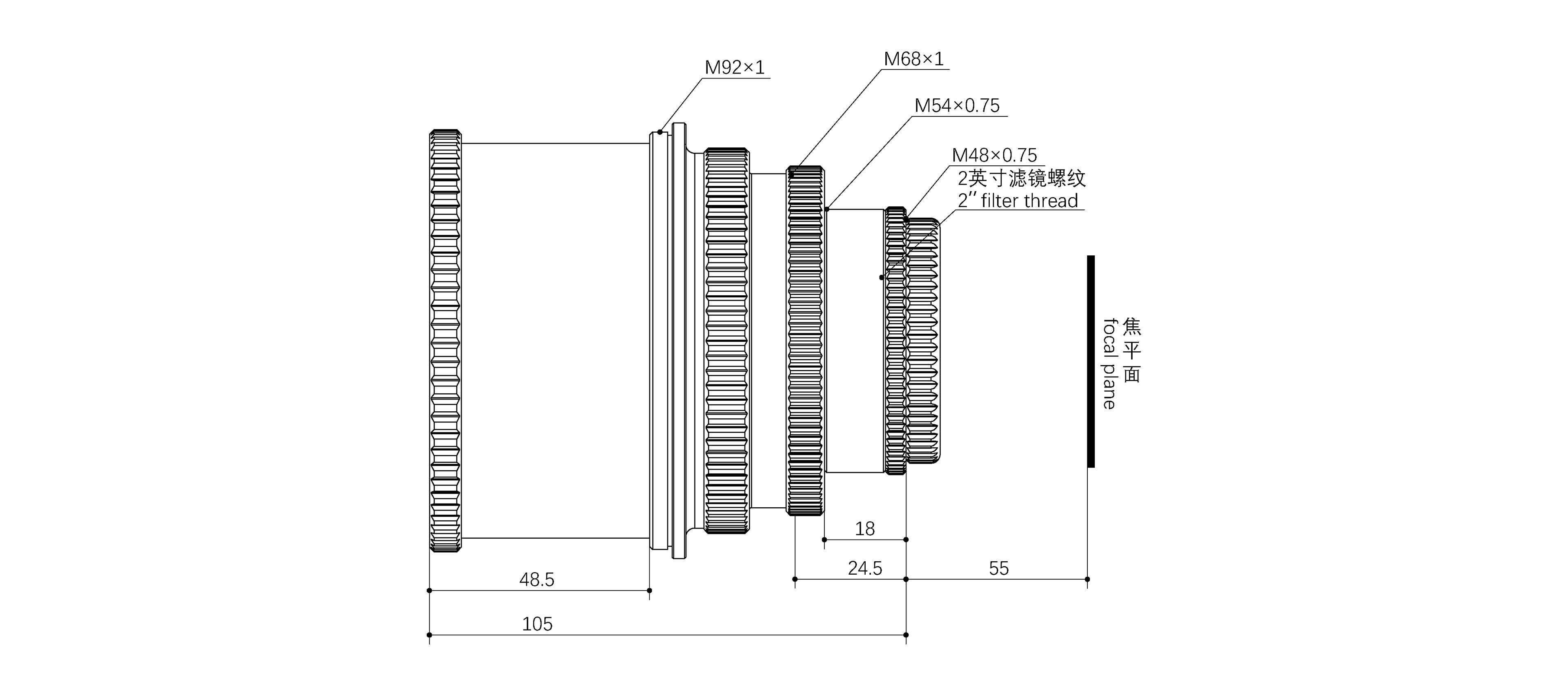

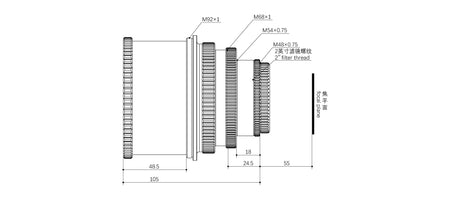

The 0.8X Focal Reducer adopts a quadruplet triplet design and supports a 44mm full-frame image circle. The back focus from the M48 thread is a standard 55mm. The front thread is M92*1. At the camera end, the reducer is equipped with M68*1, M54*0.75, and M48*0.75 adapters. The camera end of the reducer also has a built-in M48*0.75 (2") filter thread.
The Askar 160APO Reducer comes with CNC machined metal caps for both ends to protect the optics when not in use.
|
0.8x Reducer Parameters |
||
|
160APO Focal Length with Reducer Installed |
896mm |
|
|
160APO Focal Ratio with Reducer Installed |
f/5.6 |
|
|
Number of Lenses |
Quadruplet design |
|
|
Back Focus |
55mm from the base of M48 male thread |
|
|
Weight |
1.1kg |
|
|
Rear-end thread type |
M68×1 |
|
