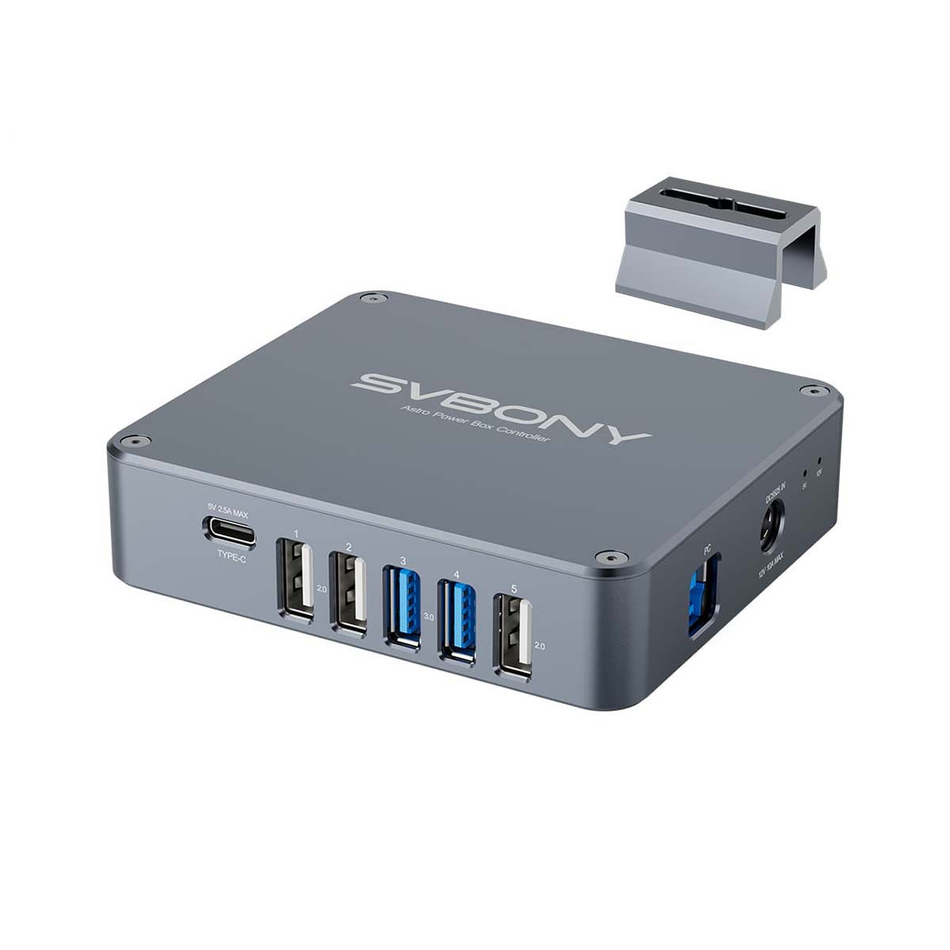

Svbony 241 Pro DC & USB HUB & Power Box

If you're tired of the complexities of multiple power packs and tangled cables, the SV241 Pro power controller is the solution you've been looking for. The philosophy was to create a compact enclosure that delivers ample current and USB data while maintaining your cables organized!

Deliver power to your mount, cameras, filter wheel, and all your essential astronomy equipment, thanks to its versatile multiport design. With this astro power controller, you can fully control your astronomy equipment.

This SV241 Pro power box supports ASCOM drivers and seamlessly integrates with the astrophotography software NINA. Once connected, you can remotely monitor and centrally control all output ports and sensor data from the power box directly within the NINA software interface.

Supports ASCOM driver and NINA integration;
7 12V DC outputs, regulated Interface and switch 1-5 interfaces can be individually controlled on/off;
The USB port can connect to guide cameras, planetary cameras, etc.; the DC port can connect to DSO cooled cameras, equatorial mounts, electronic focus controller, motorized filter wheels, and electronic field flatteners; and the RCA interface can connect to dew heaters;
Real-time detection of ambient temperature and humidity to achieve automatic temperature control throughout the process.

Note: The recommended PWM value is around 80. When the temperature of the heating belt is 5 degrees higher than the dew point temperature, it will stop heating. When the temperature drops, it will automatically heat up.

Each USB port outputs 5V 2.5A with 2.75A overcurrent protection; the 5V line has reverse current and short-circuit protection, independent MLCC filtering, and 15KV electrostatic discharge protection.

Equipped with a T+H interface that collects humidity data (5%-85% RH), calculates the dew point, and controls heating; the Temp interface monitors the temperature of heating tapes in real time (-10°C to 50°C) for precise temperature control and dew prevention.

Utilizing PWM technology, the Svbony SV241 Pro achieves precise, dynamic, and automated heating control.

1.Integrating environmental data (temperature, humidity, and dew point) collected by temperature and humidity sensors and automatically adjusting the heat intensity of your Dew strips for optimal performance.

2.The 12V, 6A power supply supports driving multiple dew heaters (simultaneously powering the dew heaters of the telescope and guide scope), meeting the de-condensation needs of a full range of astronomical equipment.

Built-in Circuit Protection

Safety is paramount with the power hub, boasting a suite of protections including reverse polarity, overcurrent, short circuits, electrostatic discharge. Your astronomy devices are shielded from potential damage.In addition, this power hub provides automatic restart after overload.

The power box is equipped with UNC1/4-20 and M4 screw holes to meet different installation requirements and prevent loose connections and power outages caused by moving, shaking, or dropping the power supply box during astrophotography.

Specifications

Brand	SVBONY
Model	SV241 Pro
Power Input	12V 10A Max DC5.5*2.5
PC Input	USB3 Type B Connector
DC Output:	Always on	12V 6A MaxDC5.5*2.1
		Cannot be switched on/off
	Switch1-5	12V 6A Max DC5.5*2.1
		Can be switched on/Off
	Regulated	0-15V adjustable Regulated Output
		Can be switched on/off 3A Max
	PWM1-2	12V 6A Max Black Colored RCA Connector
		Can be switched on/off
		PWM Control possible
USB HUB	2xUSB3.0 4xUSB2.0	USB type-c & USB2.0-1&USB2.0-2 Can be switched on/off together

		USB3.0-3&USB3.0-4&USB2.0-5 Can be switched on/off together

USB Power Supply	4xUSB2.0	5V 2.5A
	2xUSB3.0	5V 2.5A
Voltage/Current Monitor	Input current/ Voltage monitor
Environment Sensor	2.5mm TRRS Jack(4-Pole)	SHT40 Temperature & humidity sensor
	2.5mm TRRS Jack(4-Pole)	DS08B20 Temperature probe
Temperature Range	Operating Temperature: -10°C to 50°C (Celsius)
Humidity Range	Operating Humidity: 5% to 85% RH (non-condensing)
Dew Heater Control	2 independent dewheaters
	Dewpoint temperature difference control
	Constant temperature control
	Manual control
ASCOM Compatibility	YES
Screw Holes	M4 and UNC1/4-20 Holes
Net Weight/g	approx.210g
Product Size/mm	100.5x87.5x24.5
Circuit Protection	Electrostatic Discharge (ESD) Protection
	Reverse Polarity Protection
	Backflow Prevention
	Filtering Protection [Adapted for USB 3.0 Interface & DC Interface]
	Fusible Link
	Under-voltage Protection
	Over-voltage Protection
	Over-current Protection
	Short-circuit Protection
	Power Detection
	Smart Restart Function
