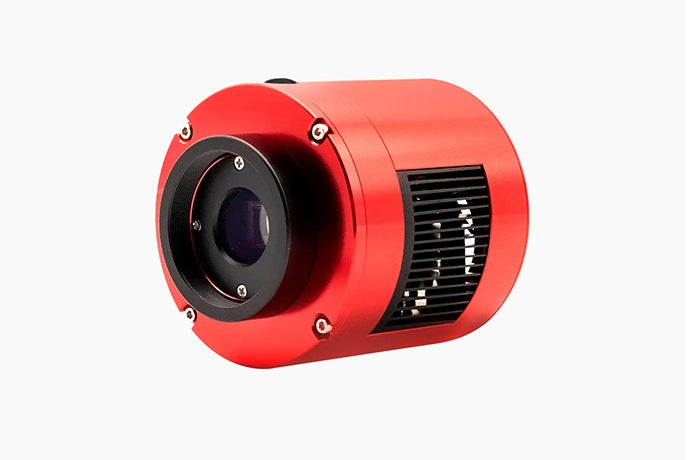

ZWO ASI992MM Pro Monochrome Cooled USB3.0 SWIR Astro Camera - ASI992MM-P

Please Note:  Due to the professional nature of this specialized camera, it will be made to order at the ZWO factory.  Lead times will be provided upon request or when you place an order. If you have any questions, please feel free to contact us. Thank you.

The ZWO ASI992MM Pro is a SWIR (Short Wave Infrared) camera that uses the Sony IMX992 InGaAs (Indium Gallium Arsenide) sensor featuring a wide micron range from 0.4um to 1.7 um.   Since this speciality sensor captures short wave infrared light, it is applicable for photometric measurement, optical communication, and work in optical and laser laboratories.

SWIR cameras are used in astronomy to observe objects that are cooler or more redshifted than those in visible light as well as objects obscured by dust, etc.

The ZWO ASI992 SWIR operates in the 400nm to 1800 um wavelength, allowing it to penetrate fog and thin clouds at night or image stars in the daytime.

ZWO ASI992MM Pro SWIR Camera Highlights...

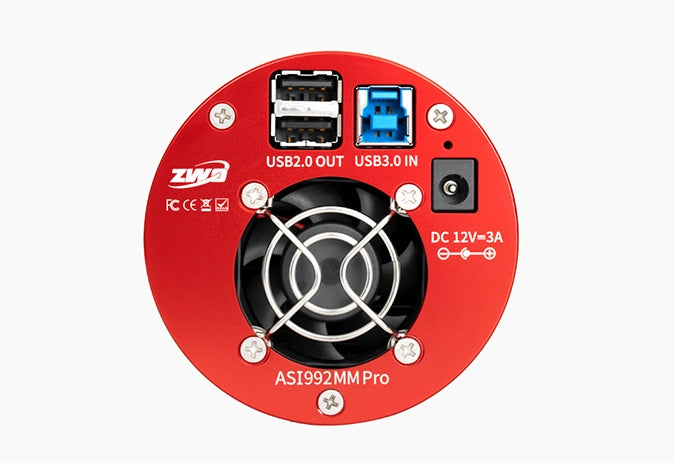

Please Note: All ZWO cooled (Pro) cameras will require an external 12V DC power source in order to operate properly and run the TEC cooler. You have three options:

1. Buy a 12V DC Power Supply with a minimum of 3 amps; we recommend the ZWO power supply listed at the end of this page.

2. Buy the ASIAir and use the DC Out port to run your camera.

3. Buy an external 12V DC battery like the Celestron PowerTank or equivalent.

It is important to know that your computer may not recognize your camera or operate correctly if you just use the USB 3.0 cable alone. You will want to connect whichever 12V DC power source you choose into your computer as well.

Zero Amp Glow

Traditional CMOS sensors produce a weak infrared light source during operation which is quite often seen in the corner of uncalibrated images as tell-tale signs of amp glow.  You won't have to worry about amp glow with the ASI992MC Pro, even when using high gain during long exposure images, however, as ZWO uses zero amp glow circuitry.

Readout Noise

Readout noise is generated in the amplifier on the chip that converts the stored charge of each pixel into an analog voltage to be quantified by A/D conversion.  The lower the readout noise is, the better the image SNR.  Compared to traditional CCD SWIR cameras, the ASI992MM Pro keeps its readout noise at a really low level.

Two-Stage Cooling

With its built-in two stage TEC cooling, the ASI992MM Pro can lower the sensor temperature to 30-35 degrees Celsius below ambient temperature, greatly reducing dark current generation and sensor noise.

It is recommended that you use this camera at low temperatures to get better imaging performance.

Specifications

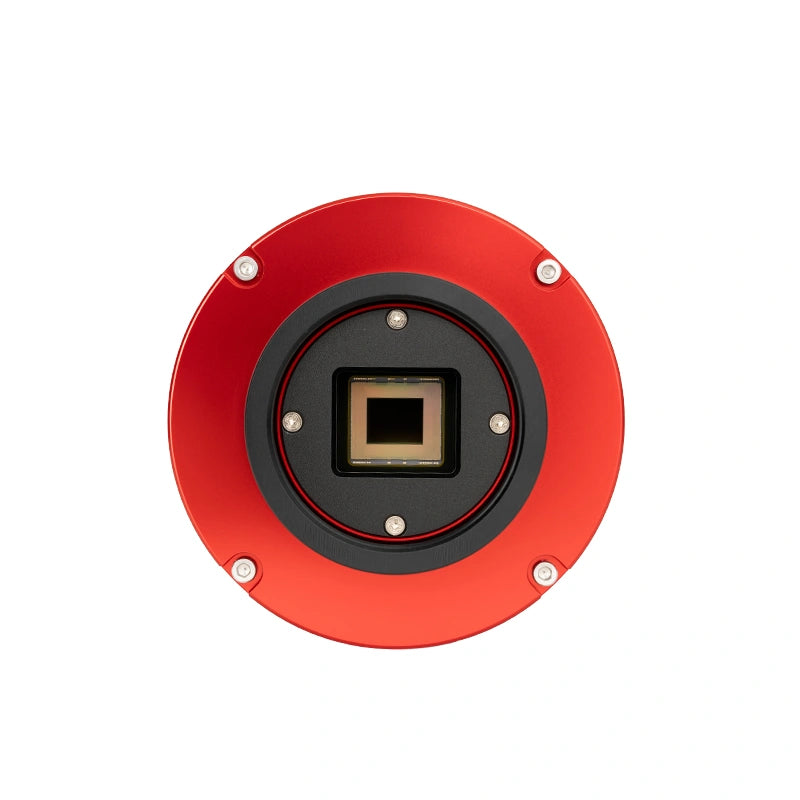

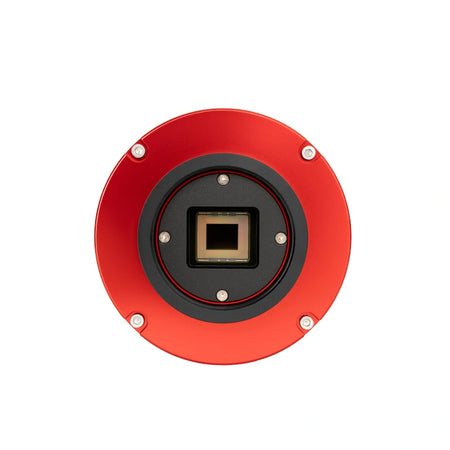

Sensor:  Sony IMX992MM-P

Sensor Size:  3.2 x 2.5mm, 1/4"

Resolution:  2592 x 2056

Pixel Size:  3/45um

ADC:  12-bit

Read Noise:  71e

Cooling Temperature:  35ºC - 40ºC

DDR3 Buffer:  256MB

Transmission Interface:  USB 3.0

Frames Per Second:  70

Full Well:  62.8ke

Quantum Efficiency:  80%
