Wanderer Rotator Lite V2 - M68 Camera Angle Adjuster - WR2-M68

The Wanderer Rotator V2 CAA series is designed primarily for rotating the camera to adjust framing angles and for de-rotation in alt-azimuth mounts. Its most outstanding feature is the patented rotation structure, which provides zero tilt and ultra low profile. Additionally, it boasts an ultra-lightweight and highly precise design, making it an excellent choice for professional astrophotographers.

If you need a primer on why an Electronic Camera Angle Adjuster is super helpful for astrophotography and to learn about the Wanderer Rotator V2 series, check out the video below:

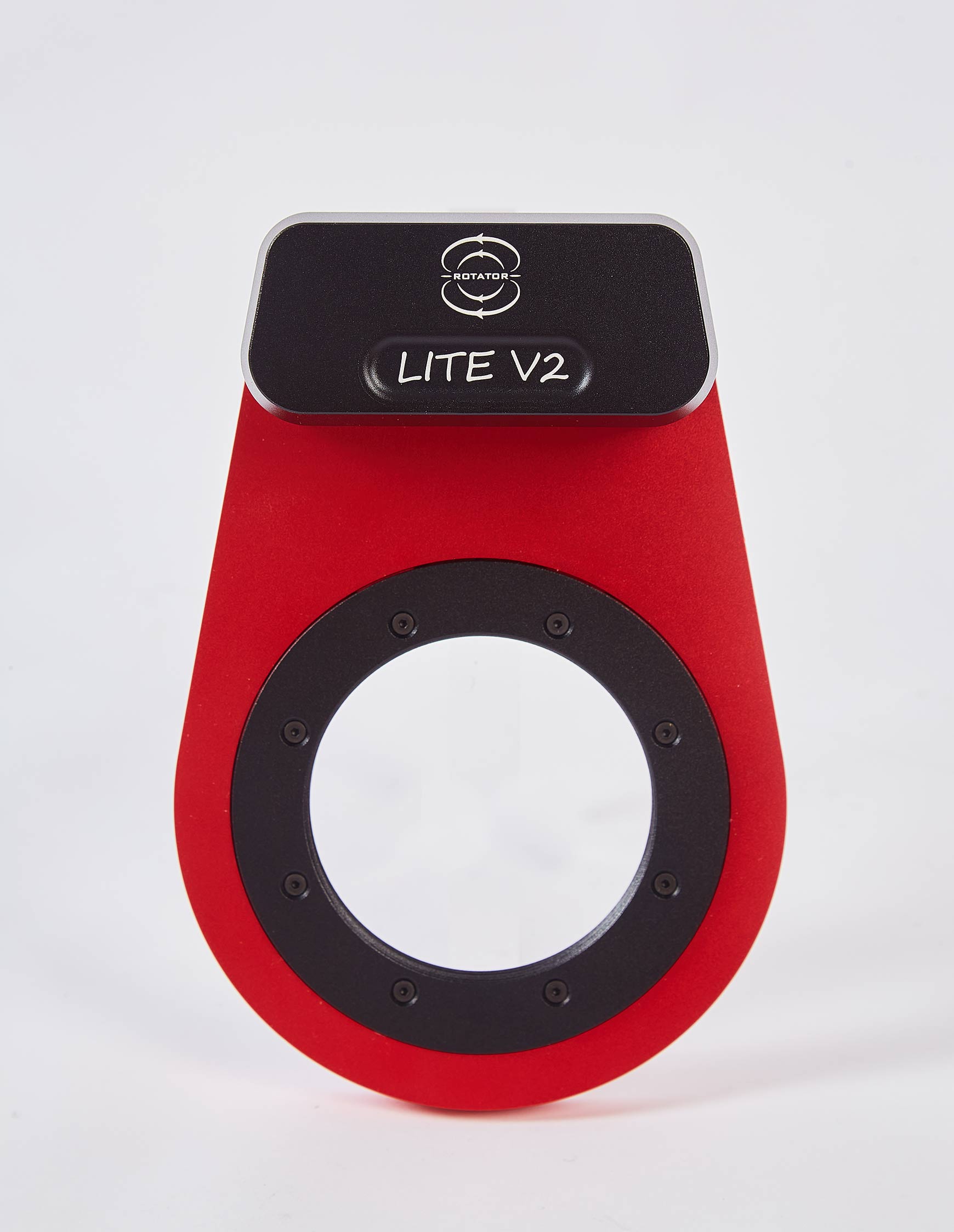

The Wanderer Lite V2 Electronic CAA is the medium version in the Wanderer Rotator Line, with M68 threads. The other two rotators in the lineup are the M54 Mini V2 and the M92 Pro V2.

The Lite V2 has a load capacity of 7.5Nm or 15kg, assuming that your equipment's center of gravity is positioned 50 mm from the rotator. With a thin 12mm of thickness and a weight of just 550g, the Lite V2 Rotator puts less strain on the focuser and gives you more room for focus travel and back focus.

The Wanderer Rotator is ideal for high precision astrophotography due to its patented rotating stucture that offers ZERO TILT for pinpoint stars throughout the image and absolute collimation at any angle. The 0.005º angle resolution is very precise; perfect for critical applications.

The Rotator Lite V2 offers de-rotation support; a game changer for alt-azimuth and Dob telescope users! It seamlessly integrates with NINA for fully automated framing and de-rotation sequences.

What's in the Box?

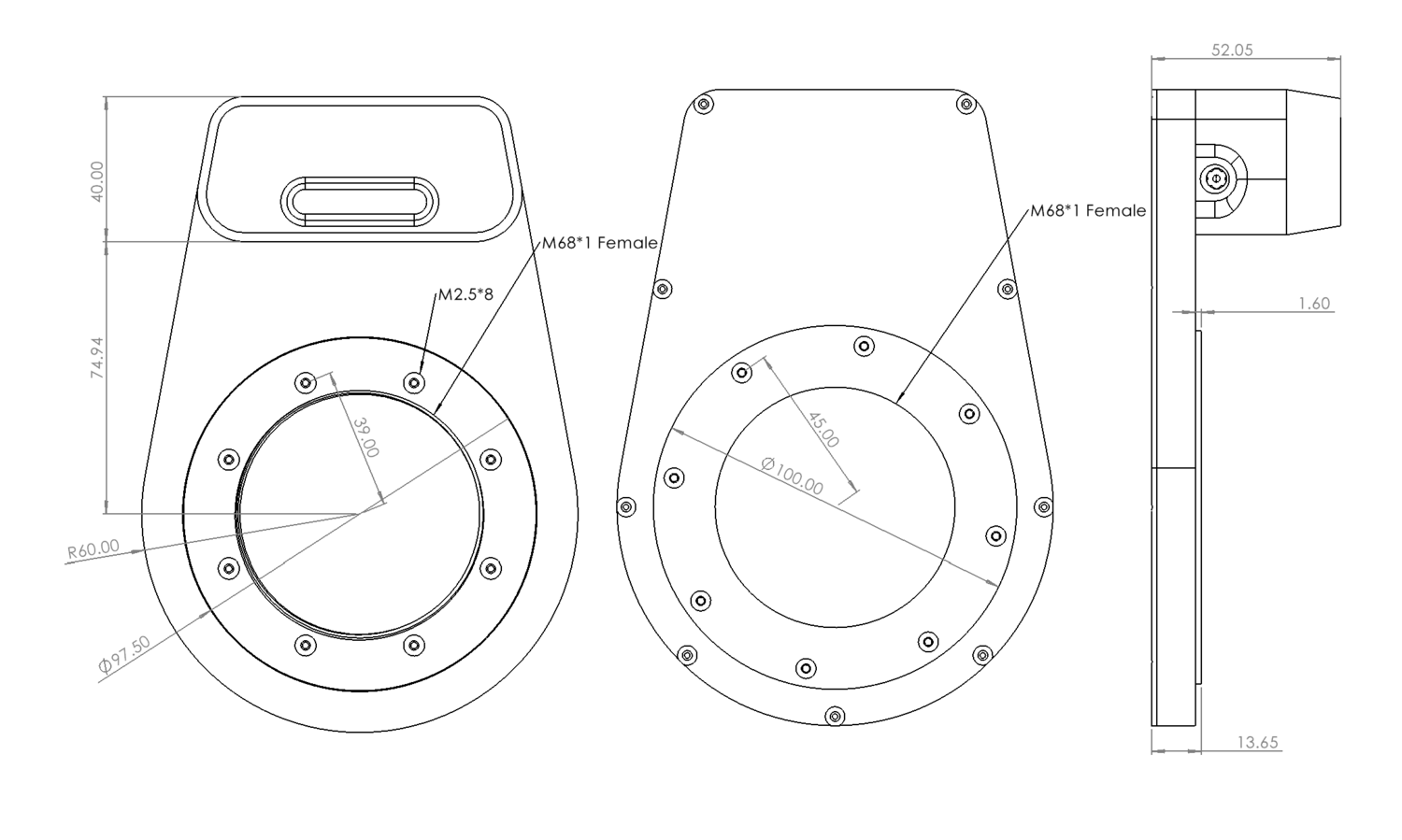

Specifications for Wanderer Lite V2 Rotator CAA

• Power Supply:  DC5.5x2.1mm 12V

• Power Consumption:  Less than 0.5A

• Connectivity:  Type-B USB2.0 Cable (Included)

• Weight:  550g

• Payload:  7.5Nm or 15kg

• Rotation Rate:  3.5º/s

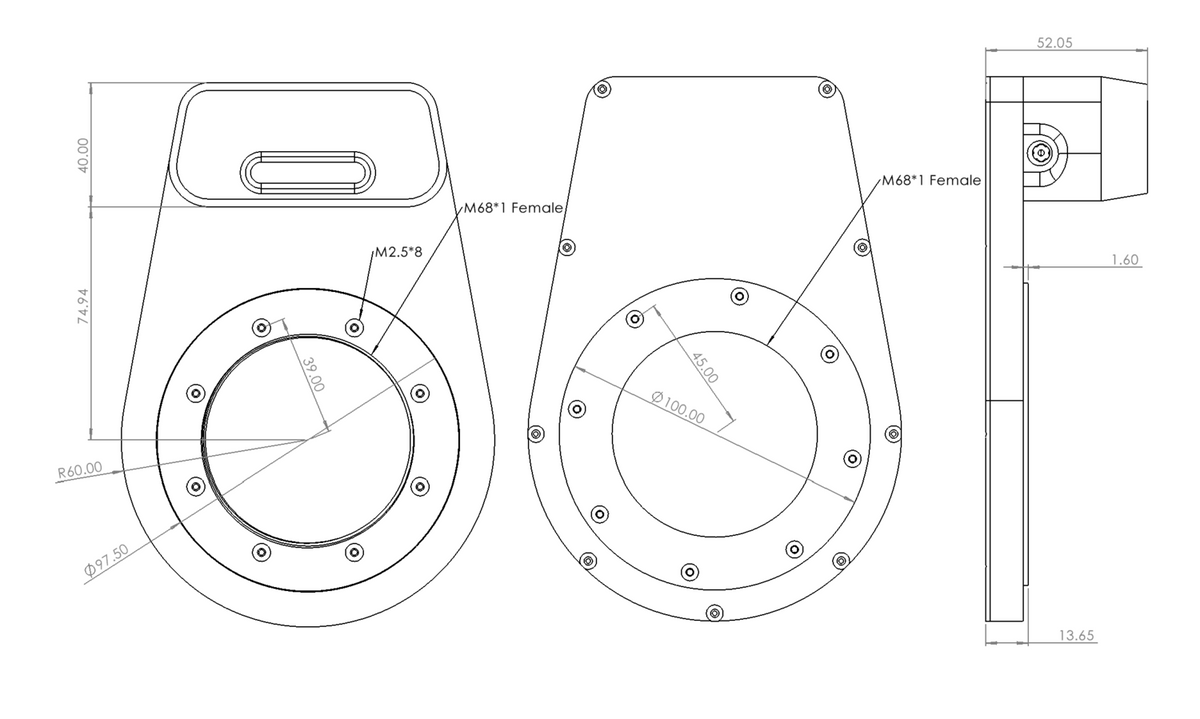

• Thickness:  12 mm

• Steps Per Degree:  1199 (0.0008º per step)

• Clear Aperture:  M68

• Material:  Aluminum Alloy

• Threaded Interface:  M68 Female on both sides

• Operating Temperature:  -30ºC - 50ºC
