QHY M54 All-In-One Kit - 20112

If you have a QHY camera and have not yet found the correct spacers or adapters for your back focus requirements, this M54 all-in-one adapter package contains nearly all of the adapters that QHY provides in their kits.  The included 0.5, 1, 2, 3, 7 and 14mm spacers can be combined to make any back focus needed from 0.5mm to 27.5mm.

While QHY also makes an M42 All-in-one Kit, it is only suitable for use with the QHY183M and QHYCFW3S.  This M54 kit works with the items shown below:

Compatible Devices:

• All Cooling CMOS Cameras
• CFW3M-SR
• CFW3M-US
• CFWL
• OAGM

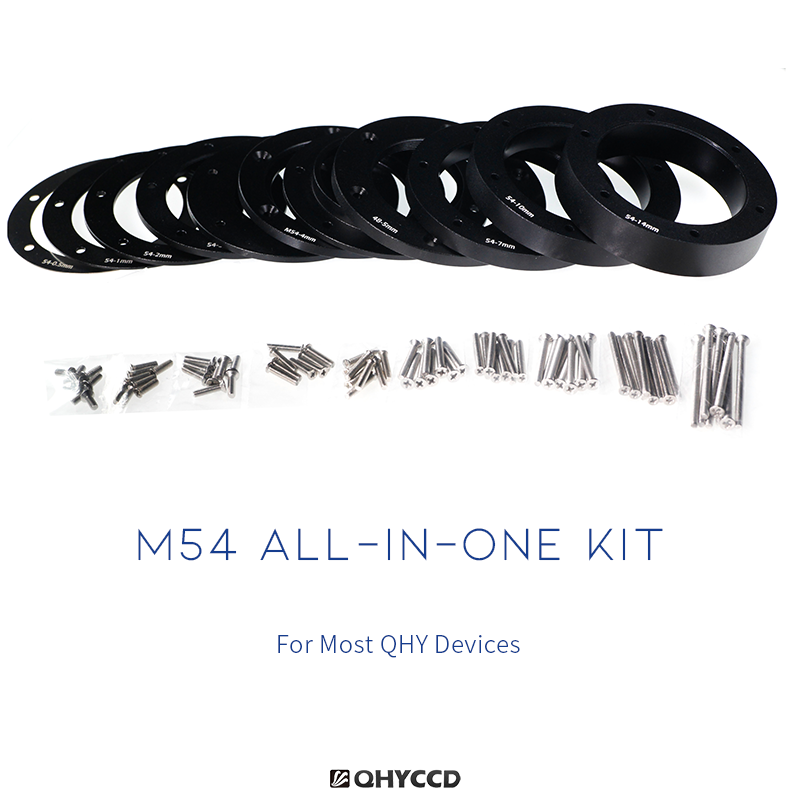

What's in the Box:

• 5mm M54 to M48 Adapter*1
• 3mm M54 to M42 Adapter*1
• 2.5mm 2inch Filter Fixer (Original Name 020055)*1
• 4mm M54 Screwed Adapter (Original Name 020070)*1
• Cam Top  Adapter  (Original Name 020063)*1
• 0.5mm/1mm/2mm/3mm/7mm/10mm/14mm/ Spacer*1
• 8mm M3 Screws*8
• 10mm M3 Screws*8
• 12mm M3 Screws*8
• 14mm M3 Screws*8
• 16mm M3 Screws*8
• 21mm M3 Screws*8
• 24mm M3 Screws*8
• 28mm M3 Screws*8
• 36mm M3 Screws*8
• 50mm M3 Screws*8
