Primaluce Lab 80 mm PLUS Guide Rings - ANGU80P

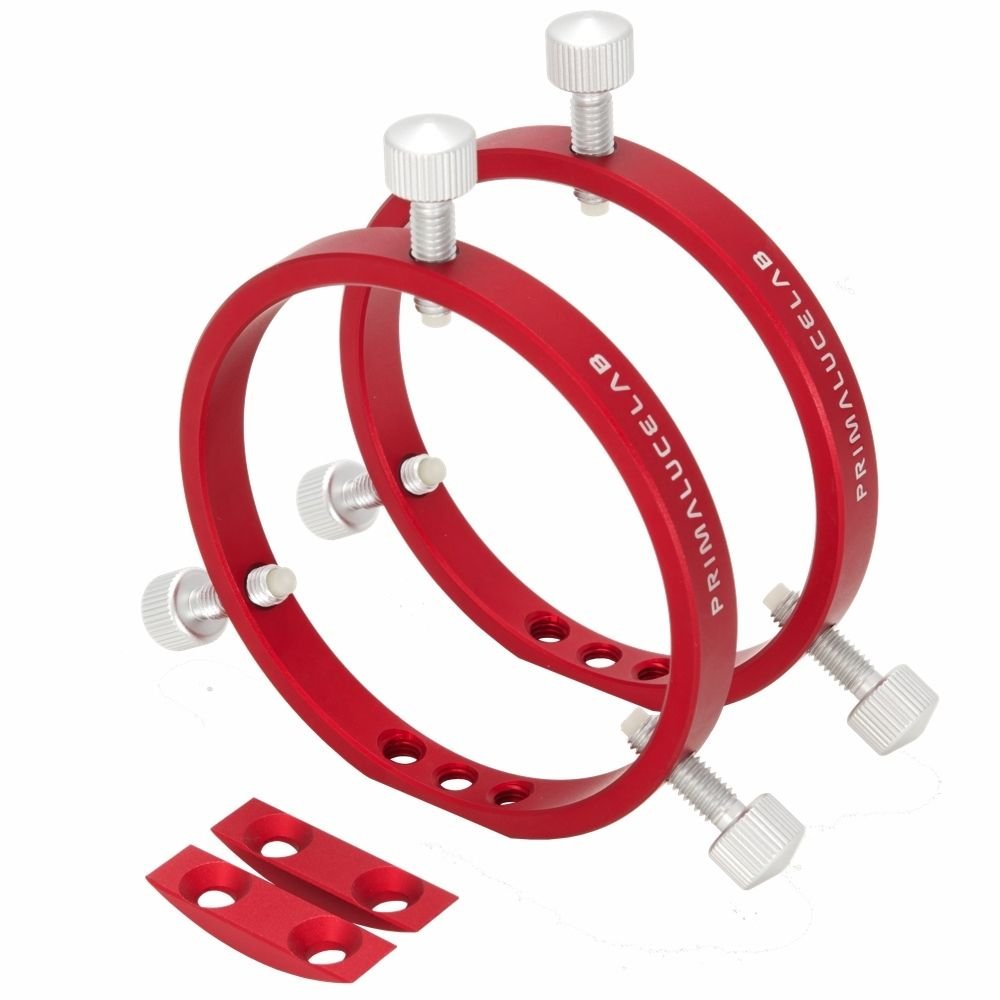

Primaluce Lab 80 mm Guide Rings PLUS

If you want to install a guide telescope in parallel to the main one, guide rings offer the simplest and cheapest solution. The Guide Rings PLUS  offers a high build quality and all the features useful for this application. The 80 mm PLUS Guide Rings allows you to install guide telescopes, such as 60mm diameter refractors.

Like all the other elements of the PLUS series, these guide rings are made with high mechanical precision (built with CNC machines from aluminum block) and specially designed to enable you to easily install other mechanical elements such as support rings, plates or dovetail clamps.

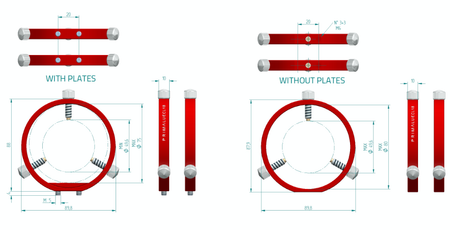

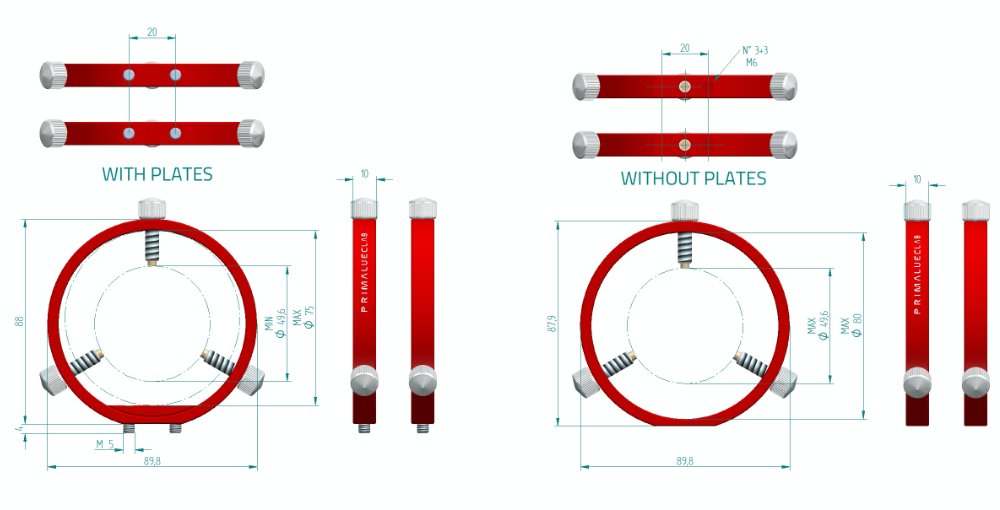

For instance, you can install the guide rings PLUS 80mm directly above the EAGLE using the 2 additional plates (which provide a flat base for optimal connection) and the 4 screws M5x12 supplied in the package.

What's In the Box?

• Two (2) 80 mm guide rings with support screws for guide scope
• Two (2) additional plates for installation on the EAGLE
• Four (4) M5x12 screws
• Four (4) M6x12 screws
