iOptron HST MiniTracker - Ultra Compact SWG DSLR Tracker - 3650

En rupture de stock
Unité de gestion de stock: IOP-3650
$627.00 CAD

DĂ©tails du produit

  • UnitĂ© de gestion de stock IOP-3650
Description

The iOptron HST MiniTracker is the optimal tracking solution for the on the go imager!


The iOptron HST MiniTracker is small enough to rest in your palm, yet capable of carrying up to 9 pounds of imaging gear. Perfect for tracking with your DSLR, this little powerhouse is the ultimate portable camera sky tracking device.

Weighing only 1.75 pounds, this SWG (strain wave gear) mini imaging tool features 4 tracking rates: sidereal for stars and deep space, lunar for the moon, solar for the sun, and œ rate for imaging the Milky Way with terrestrial objects in the foreground.

The HST MiniTracker's DC stepper motor and SWG drive train operate silently as it precisely tracks the target subject(s). The metal CNC machined body is not only appealing to the eye, it's rugged enough to take on any outdoor adventure.

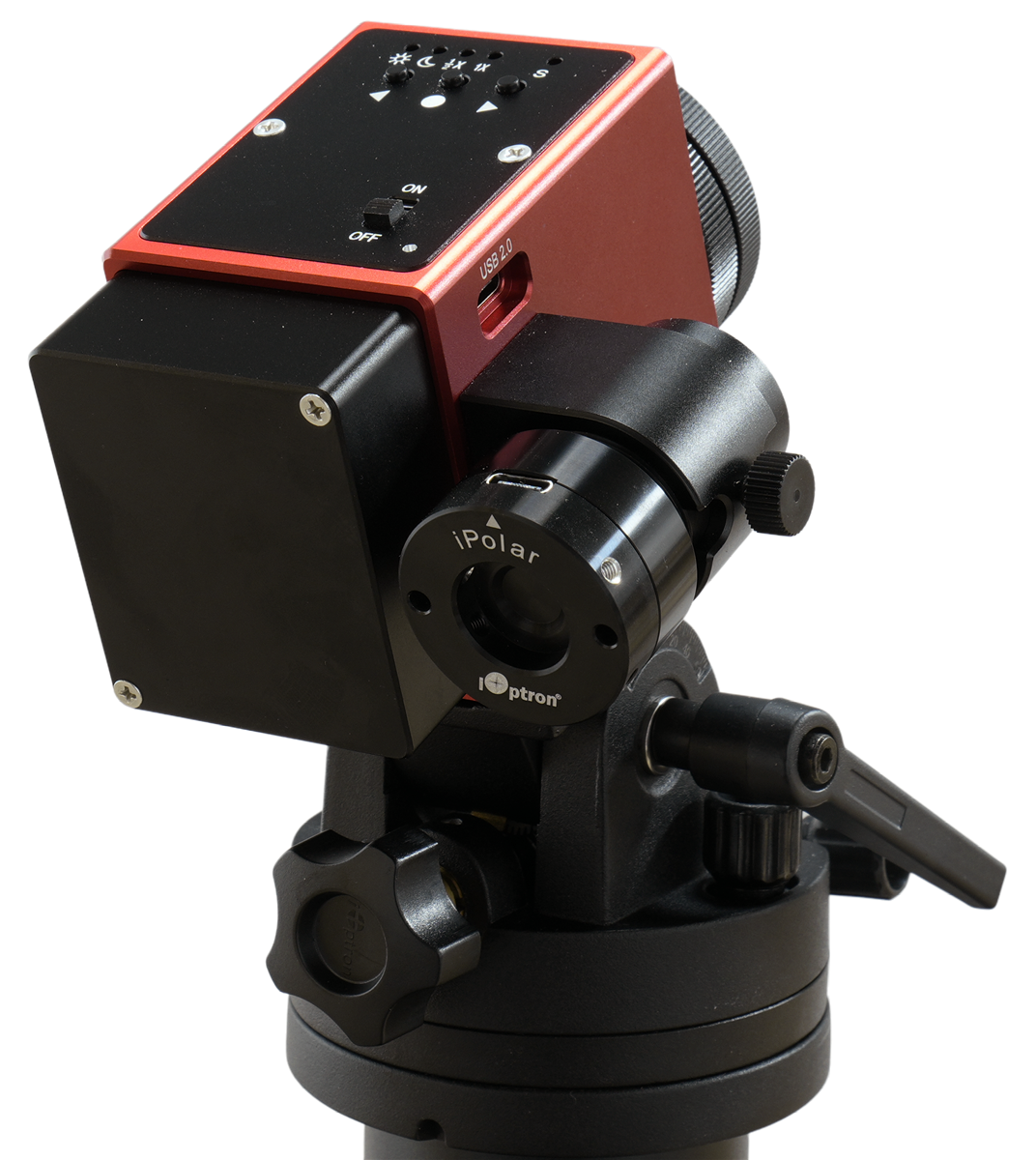

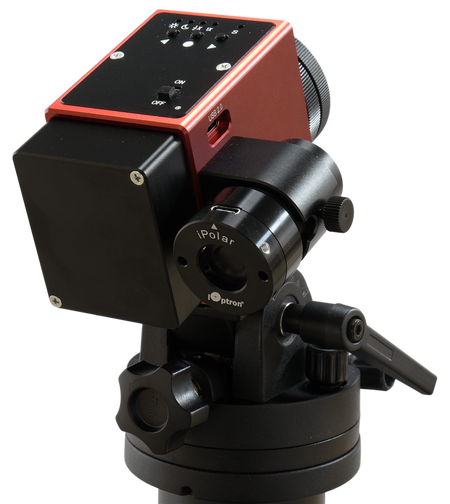

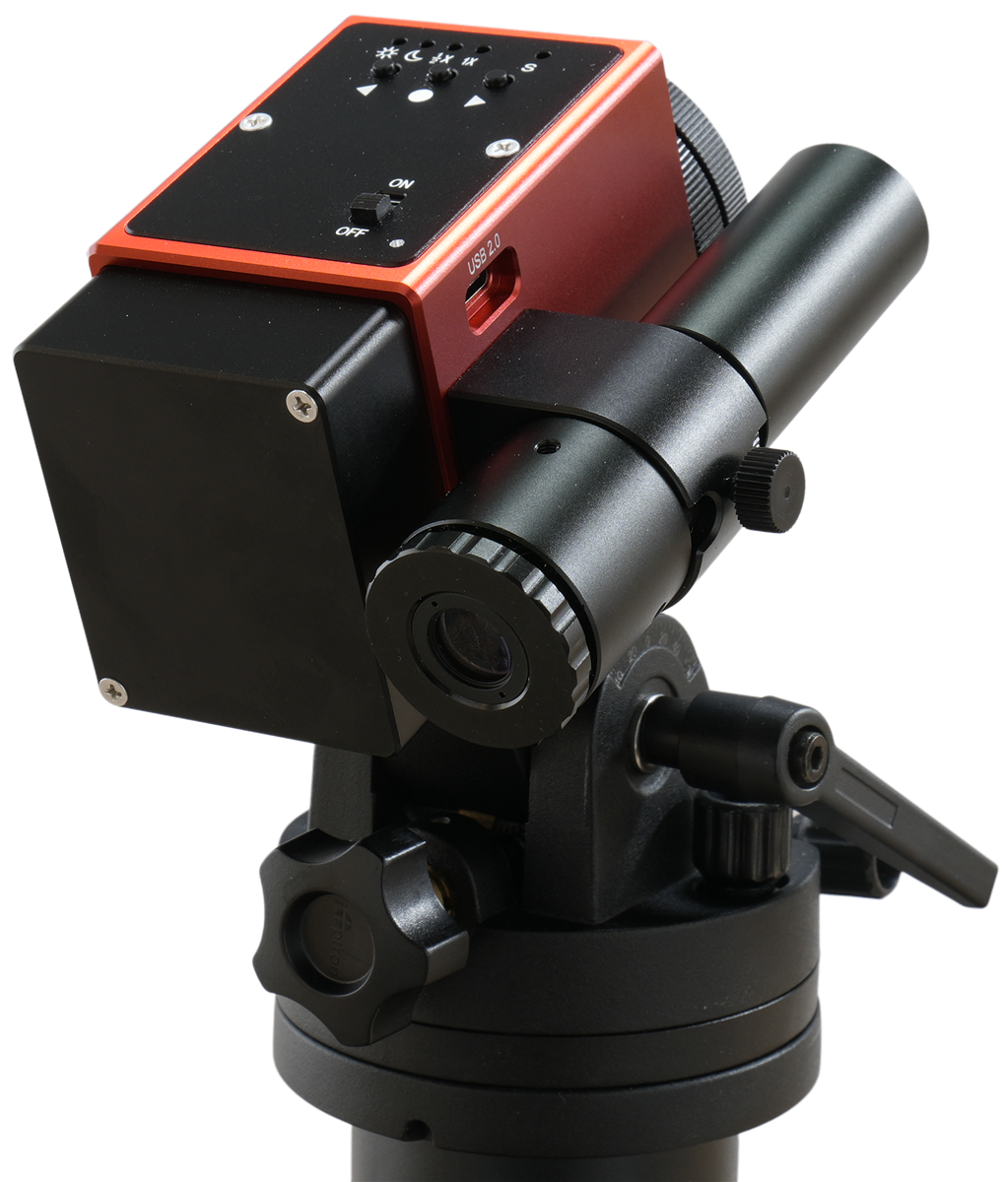

The HST has a Vixen-style dovetail that slides into the optional AZ base, or it can mount directly to a tripod by a 3/8"-16 or 1/4"-20 post. The MiniTracker can be powered in several ways; by an internal rechargeable Li-Poly battery, three AAA household batteries, or an external 5 volt power bank, giving the user flexibility to choose what best fits the assignment. There is a side bracket that can either hold an optional AccuAlignTM polar scope, or you can use the optional iPolar with it's "peek hold" for basic alignment.

Features

  • All CNC metal structure
  • Powerful stepper motor
  • Accepts cameras weighing up to 4kg (8.8 lbs) without a counterweight
  • Light weight (1.75lbs with battery)
  • Silent tracking for smooth camera motion, perfect for long-term exposures
  • 4 tracking speed (1X, 1/2X, solar and lunar). 1X celestial tracking for imaging the sky and stars; 1/2X tracking speed for imaging both the starry night and the landscapes at the same time
  • Quick slew for camera framing adjustment
  • Operation in both northern and southern Hemisphere
  • Built-in rechargeable battery with Type-C USB port for power and charging
  • Attaches to a camera tripod with 3/8” or 1/4” threads


What's in the Box?

  • HST MiniTracker camera mount
  • Li-Poly rechargeable battery (installed)
  • Brass 3/8” and 1/4” threaded ball head mounting post (installed)
  • Type-C USB charging cable
  • One Year Limited Warranty (90 days on battery)


OPTIONAL ACCESSORIES (Scroll down for links to these products)

  • #3327 Adjustable AZ/EQ base
  • #3328 Precision AZ/EQ base
  • #3330-HST AccuAlignlativeTM dark field illuminated polar scope w/LED
  • #3339 iPolar electronic polar scope
  • #3350A Ball head
  • #3221 Tripod
Mount Ultra Compact SWG Single-axis Tracking mount
Gear system Strain wave gear (SWG)
Payload (MAX) 4kg (8.8 lbs), no CW required
Mount weight 790 gm with battery (1.75 lbs)
Drive motor Stepper motor
Tracking speed Solar, Lunar. 1X Cel, 1/2 Cel, and N/S
Power requirement Internal battery or DC5V
Power Internal Li-Poly battery, external 5V power bank
Battery Standard 3000mAh rechargeable, optional 3XAAA battery holder
Duration of operation1 Up to 5 hours at 20°C on Li-Poly battery
Power charging port USB Type-C 5V
Body material CNC All metal

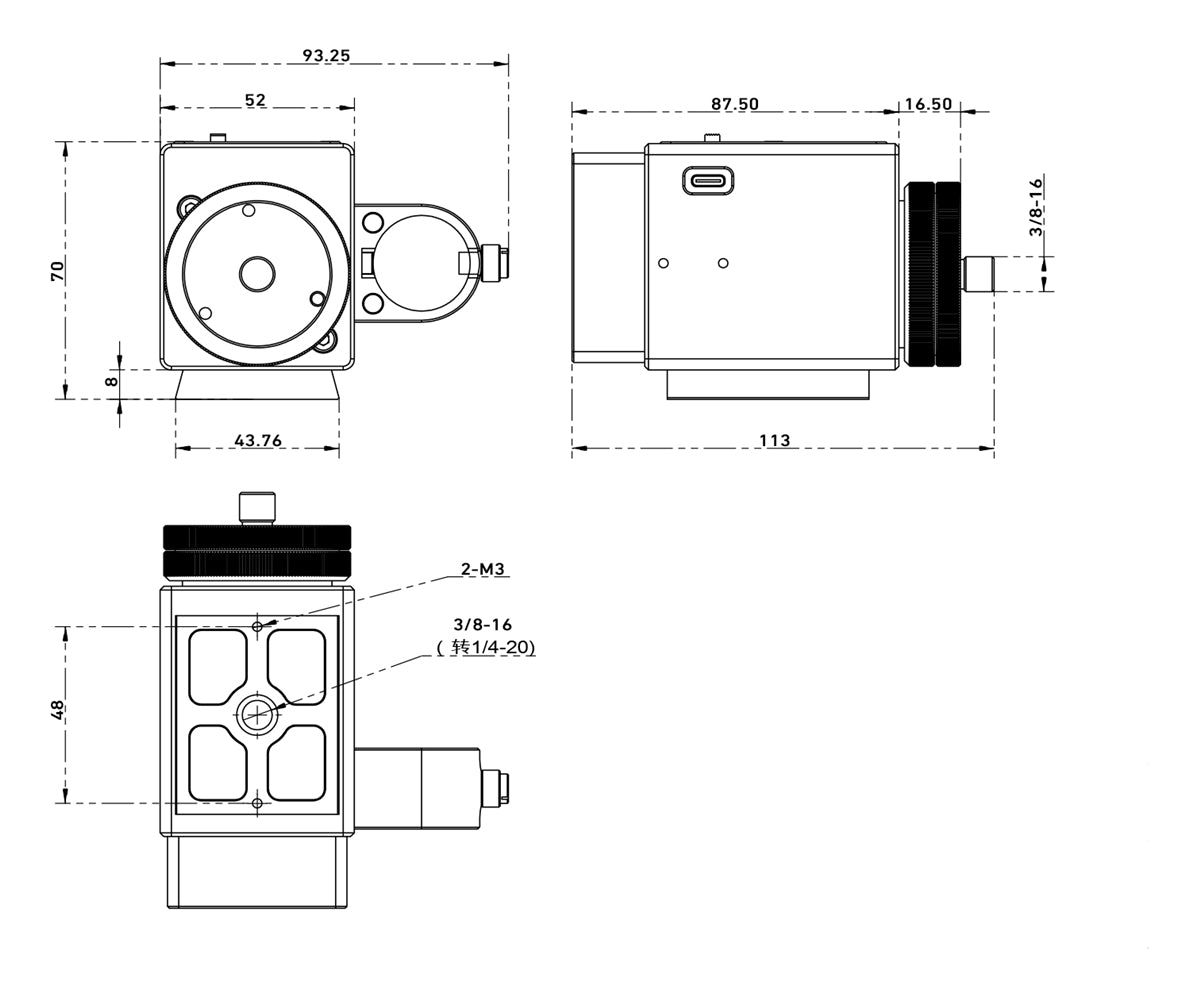

Body dimension 133x93.25x71.5 mm
Camera mounting block Ø50 mm w/ 3/8”-16 post
Body-base connection Vixen type dovetail bar with 3/8”-16 socket and 1/4”-20 converter
Polar scope Optional iPolar or AccuAlignTM Polar Scope
EQ Base Optional #3327 or #3328
Operation temperature -10~40ÂșC
Warranty One year limited (90 day on battery)
1. When using AAA battery, high capacity Lithium batteries are recommended. Operation duration varies.
