Askar 1.0X Flattener for 160APO - 160APO-FLAT
Impossible de charger la disponibilité de la réception

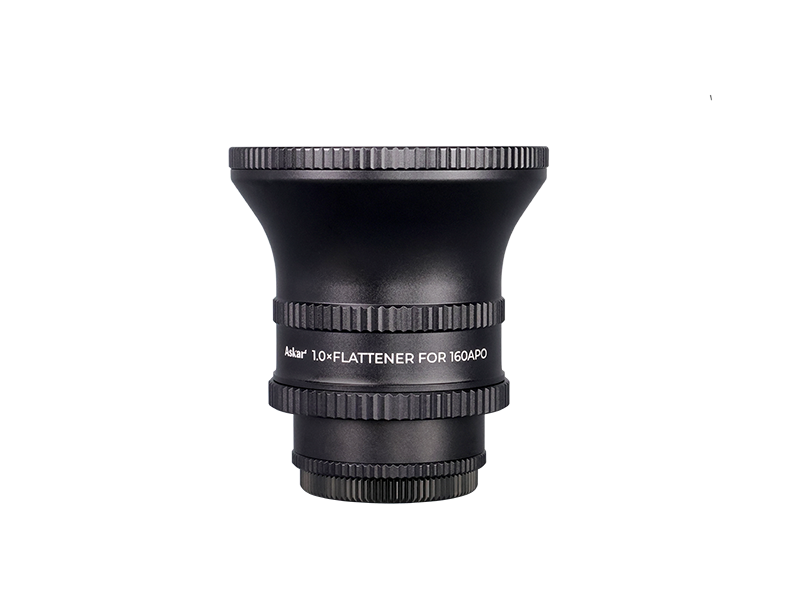

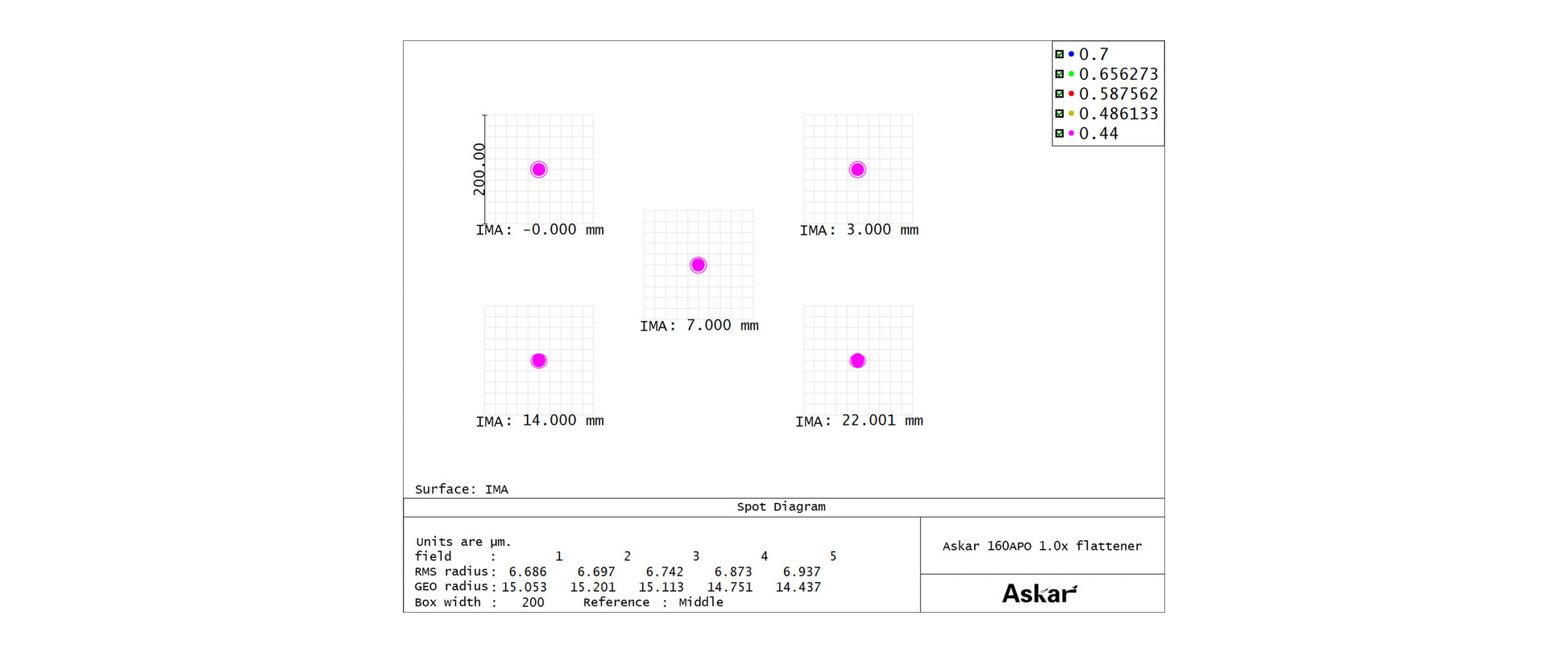

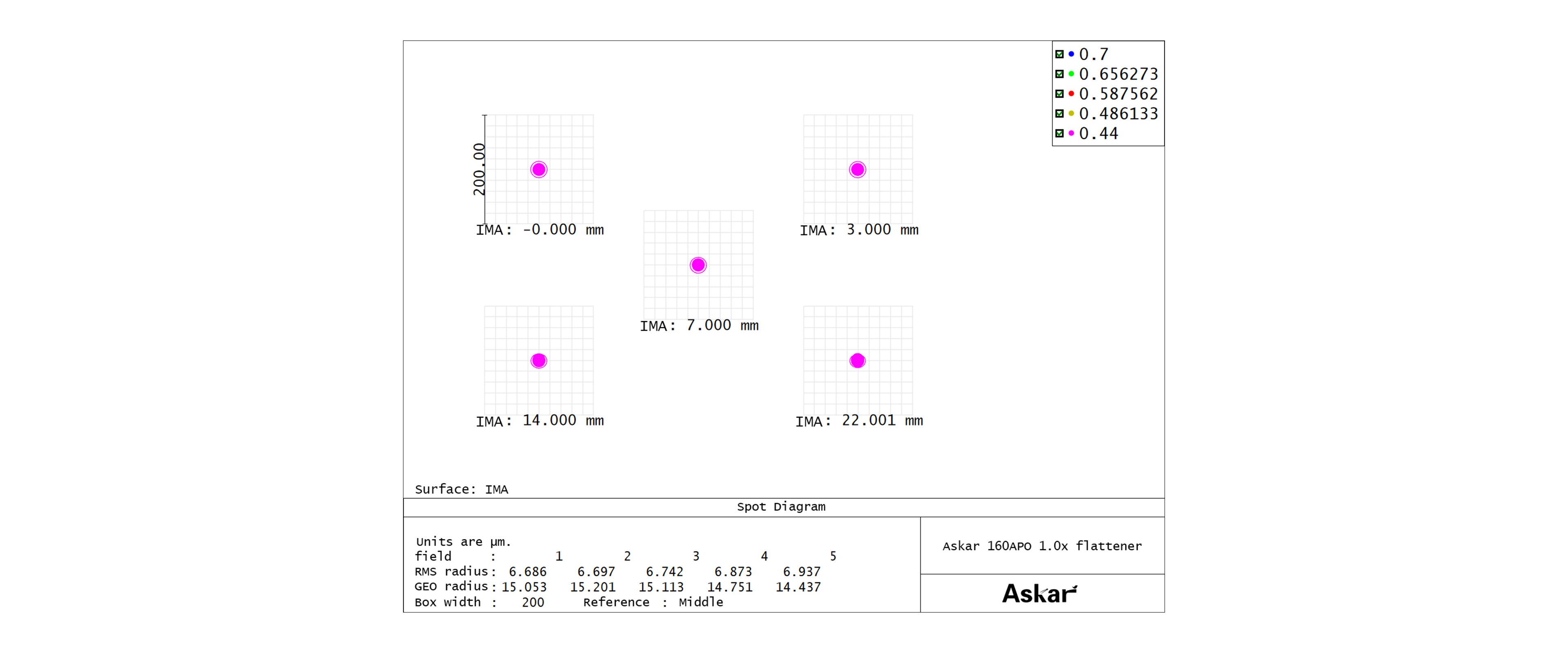

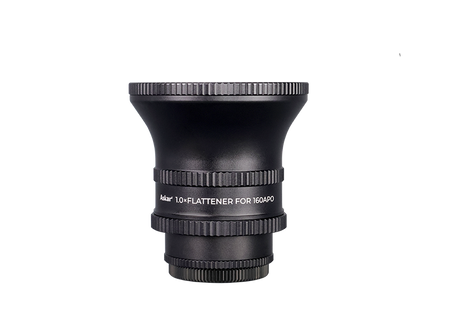

The Askar 160APO 1X Flattener is designed to correct field curvature and coma, resulting in flatter field edges and finer star points.

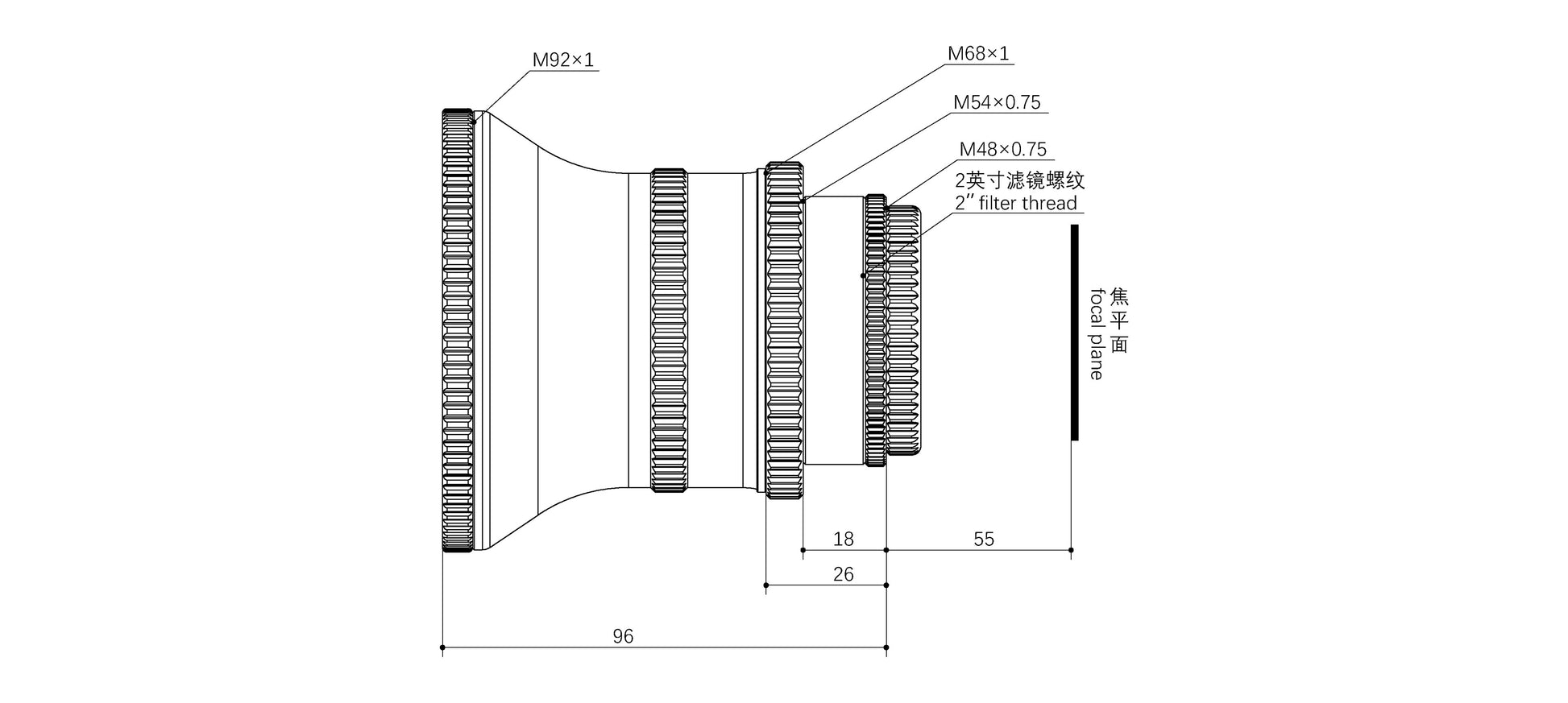

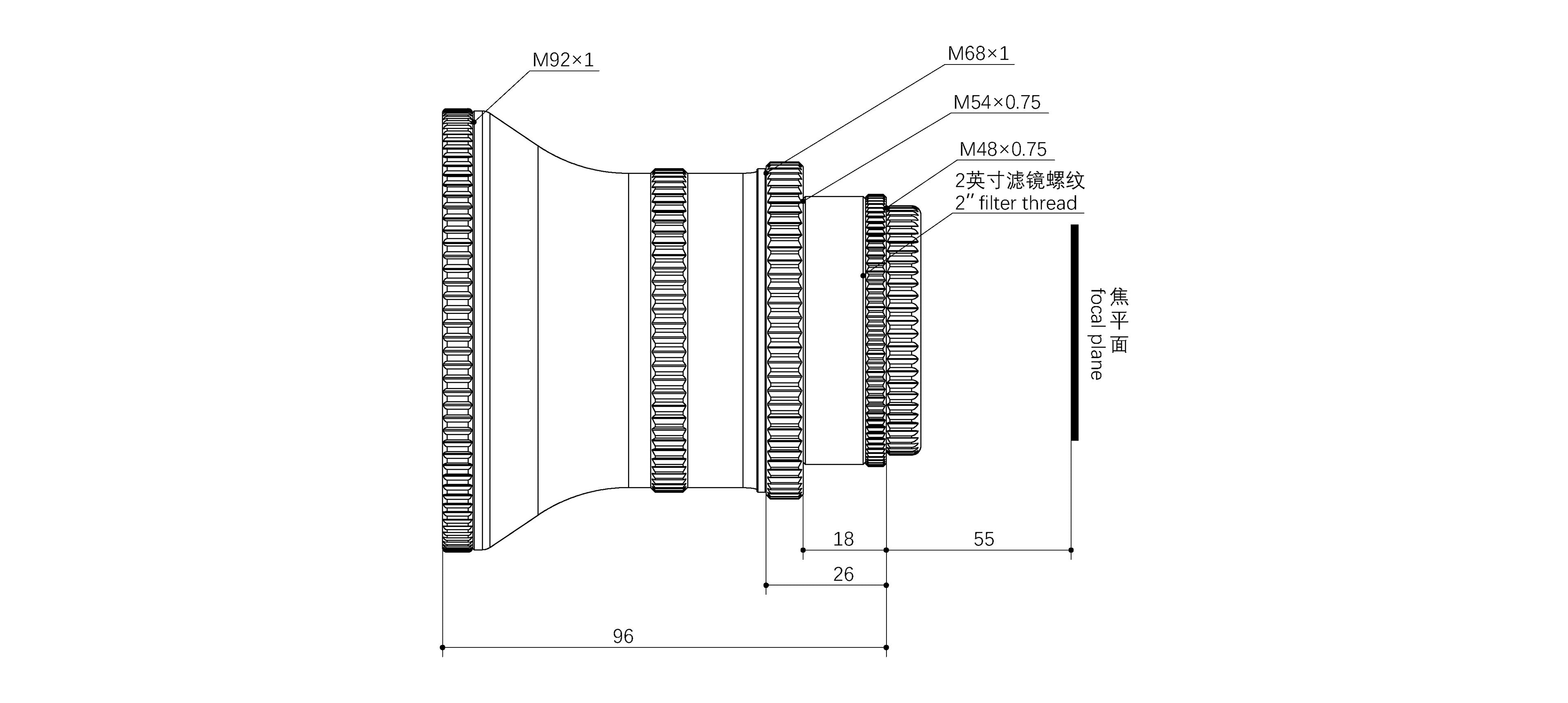

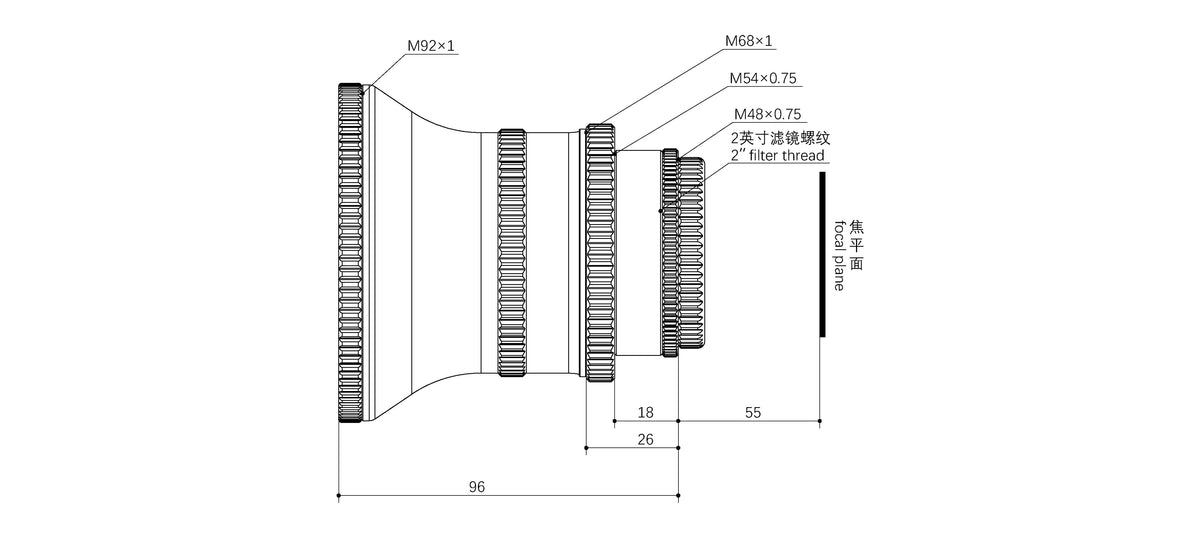

The 1.0x flattener adopts a triplet design and supports a 44mm full-frame image circle. The back focus from the M48 thread is a standard 55mm. The front thread is M92*1. At the camera end, the flattener is equipped with M68*1, M54*0.75, and M48*0.75 adapters. The camera end of the flattener also has a built-in M48*0.75 (2") filter thread.
The Askar 160APO Flattener comes with CNC machined metal caps for both ends to protect the optics when not in use.
|
1x Flattener Parameters |
||
|
160APO Focal Length with Flattener Installed |
1120mm |
|
|
160APO Focal Ratio with Flattener Installed |
f/7 |
|
|
Number of lenses |
Triplet design |
|
|
Back Focus |
55mm (from the base of M48 male thread） |
|
|
Weight |
0.56kg |
|
|
Rear-end thread type |
M68×1 |
|
