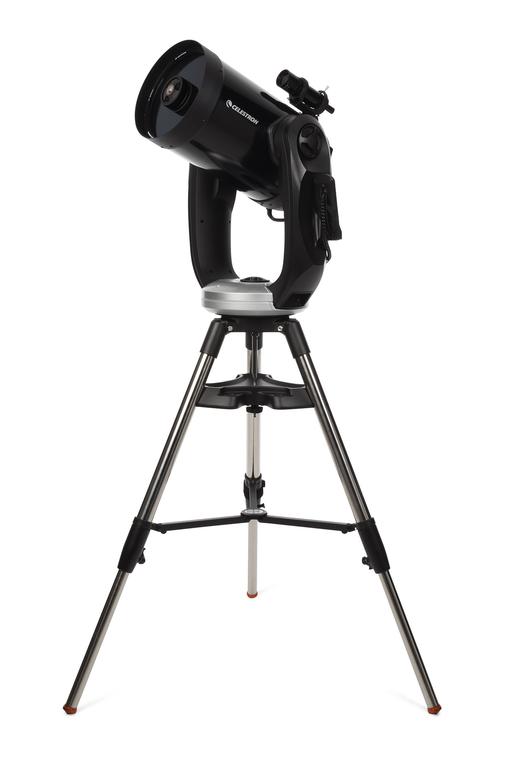

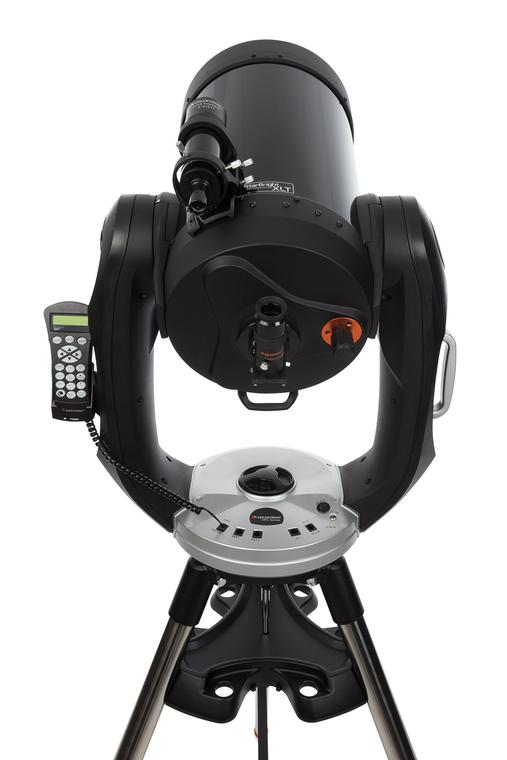

About the Celestron CPC 1100 GPS (XLT) Computerized Telescope...
The CPC 1100 GPS XLT is one of Celestron'''s top-of-the-line fork-mounted astronomical telescopes and includes Celestron'''s premium StarBright XLT coatings. This Celestron Telescope is at home as a superb visual instrument or, with optional wedge and CCD cameras, as a serious astrophotographer'''s tool. Turn the Celestron CPC 1100 GPS (XLT) Computerized Telescope towards planets and see amazing detail on the surface of Jupiter; Cassini'''s Division in the rings of Saturn, and resolve details on the surface of Mars. Even the distant Uranus, Neptune and Pluto are within your reach. Hundreds of deep space objects are also visible.
Although large in aperture, with its conveniently located carrying handles and an instrument weight of only 58 lb., the Celestron CPC 1100 GPS (XLT) Computerized Telescope is portable enough to set up in your backyard or take with you to your favorite dark sky location. The Celestron CPC telescopes, like their acclaimed Advanced Series and premium CGE Series, feature meticulously matched and hand-figured optical systems. In addition, all Celestron Telescope CPC models are diffraction limited and come standard with StarBright XLT High Performance Optical Coatings. With the introduction of the CPC Series, Celestron has "gone back to the drawing board" and re-designed, re-engineered, and re-invented a Celestron Telescope family that provides superior quality, unsurpassed ease of use, and incomparable value.
The Celestron CPC 1100 GPS (XLT) Computerized Telescope use an internal GPS receiver that automatically downloads the date and time from orbiting satellites and pinpoints its exact location on Earth. This eliminates the need for you to manually enter the date, time, longitude, and latitude. Once the internal GPS has established the Celestron CPC'''s position, aligning the Celestron Telescope is as easy as 1-2-3! Simply use the CPC hand control to manually point (slew) the telescope to three bright celestial objects. You do not need to know the names of the stars you may even pick the moon or bright planets! Celestron'''s NexStar software technology will model the night sky to determine the position of every star, planet and celestial object above the horizon. Once your Celestron CPC Telescope is aligned, the remote hand control allows direct access to each of the celestial catalogs in its user-friendly database.
The Celestron CPC 1100 GPS (XLT) Computerized Telescope database contains over 40,000 celestial objects including Messier objects and the Caldwell Catalog, as well as NGC Galaxies, nebulae and planets. User-definable filter limits make navigating through this expansive database quicker and easier. Filter Limits let you filter out objects that are outside of your local horizon (ie, if trees or mountains were in the way). The Identify feature tells you what you'''re looking at with your CPC Celestron Telescope, but it can also be a very fun way to tour around the sky. Just point the telescope up somewhere and ask it to identify Messier objects (for instance) and it will show you the 5 nearest Messier objects to your position and let you GOTO them. You can keep doing this for different parts of the sky or for different object types - it is a lot of fun. There is also a "Solar Sys Align" feature that lets you align your CPC Celestron Telescope on the sun or moon for daytime observing - it is easy to use this feature to see planets or bright stars in the day.
Celestron CPC 1100 XLT GPS Telescope Features...
- The Celestron CPC1100 telescope is an 11" diffraction-limited
Schmidt-Cassegrain telescope with Celestron'''s premium StarBright XLT
coatings on a fully computerized dual fork arm altazimuth mount.
- Proven NexStar computer control technology includes 40,000
object database with 400 user-definable objects and expanded
information on over 200 objects.
- Custom database lists of all the most famous deep-sky
objects by name and catalog number; the most beautiful double, triple
and quadruple stars; variable star; solar systems; objects and
- Re-designed drive base and drive mechanics - Quiet
operation; large drive gears, quick release clutch.
- Newly designed heavy-duty tripod makes attaching the
telescope so easy you can do it in the dark; also features sturdy 2"
steel legs and accessory tray
- SkyAlign allows you to align on any three bright celestial
objects, making for a fast and easy alignment process and 9X50 optical
finderscope is also included.
- Flash upgradeable hand control software and motor control
units for downloading product updates over the Internet including the
latest firmware for All-Star polar alignment.
- Ergonomic design - Comfortably lift and move the telescope
from location to location and included star diagonal provides more
comfortable viewing position when observing objects that are high in
- Permanent PEC and convenient remote hand control holder
that allows you to view information hands-free while using the scope.
- Auxiliary port for additional accessories such as
Autoguider and NexRemote telescope control software with rs-232 cable
included for advanced control of your telescope via computer.
Celestron CPC 1100 GPS (XLT) Computerized Telescope Specifications...

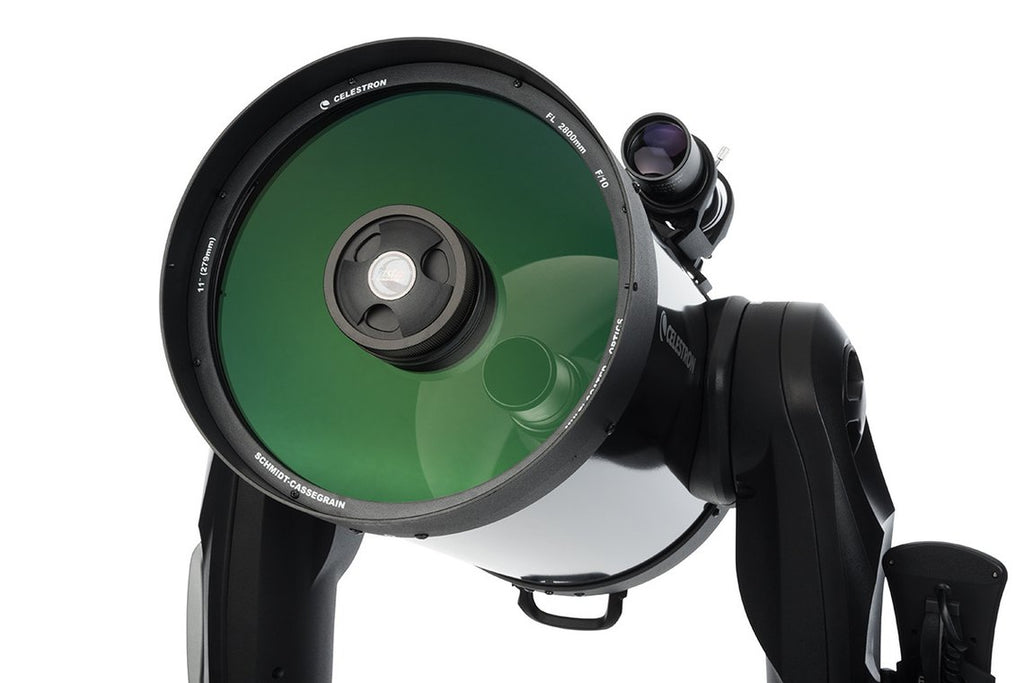

Optical Design: Schmidt-Cassegrain
Aperture (mm): 280 mm (11 in)
Focal Length (mm): 2800 mm (110 in)
Focal Ratio: f/10

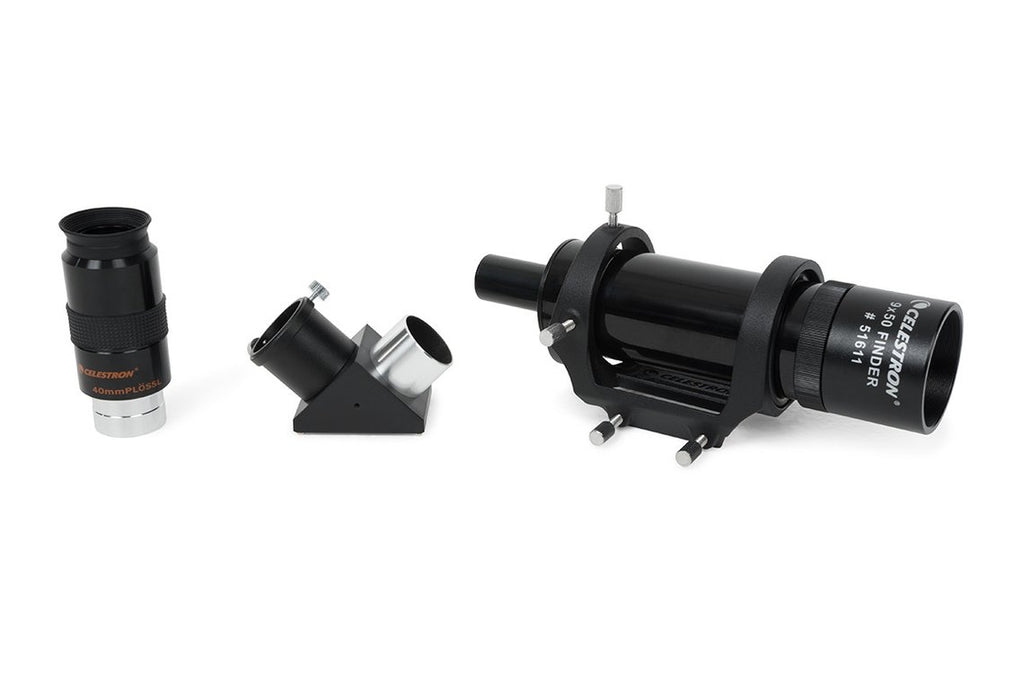

Eyepiece 1 (mm): 40 mm (1.57 in)
Magnification 1: 70 x
Finderscope: 8x50 Finderscope with quick release bracket
Star Diagonal: 1.25
Mount: Dual Fork Arm
Optical Tube: Aluminum
Accessory Tray: Leg Brace / Eyepiece holder

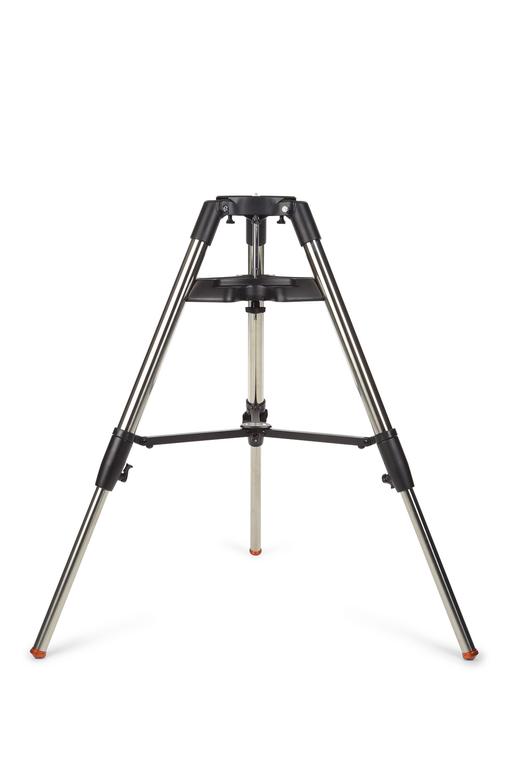

Tripod: Heavy Duty Steel Adjustable
Power Supply: Car battery adapter
Highest Useful Magnification: 661 x
Lowest Useful Magnification: 40 x
Limiting Stellar Magnitude: 14.7
Resolution (Rayleigh) 0.5 arc seconds
Resolution (Dawes): 0.41 arc seconds
Photographic Resolution: 200 line/mm
Light Gathering Power (Compared to human eye): 1600 x
Angular Field of View (deg): 0.6 degrees
Linear Field of View (@1000 yds): 32 ft (9.75 m)
Secondary Mirror Obstruction: 3.75 in (95 mm)
Secondary Mirror Obstruction by Diameter: 34 %
Secondary Mirror Obstruction by Area: 12 %
Optical Coatings: Starbright XLT Coating
Telescope Weight: 65 lbs (29 kg)
Tripod and Mount Weight: 27 lbs (12 kg)
Motor Drive: DC Servo motors with encoders, both axes
Motor Resolution: 0.1406
Tracking Rates: Sidereal, Solar and Lunar
Tracking Modes: Altazimuth, EQ North and EQ South
Alignment Procedures: SkyAlign, Auto Two-Star Alignment, Two-star Align, SolarSystem Align, EQ North Align, EQ South Align, One-Star Align
Software Precision: 24 bit, 0.08 calculations
Periodic Error Correction: Permanently Programmable
Fork Arm: Dual fork arm, cast Aluminum with detachable HC cradle
Gear: 5.625 hard anodized gear in both axes, 180 tooth
Bearings: 9.8 azimuth bearing
Motor Ports: Aux Port, Autoguide Ports
Communication Ports: RS-232 communication port on hand control

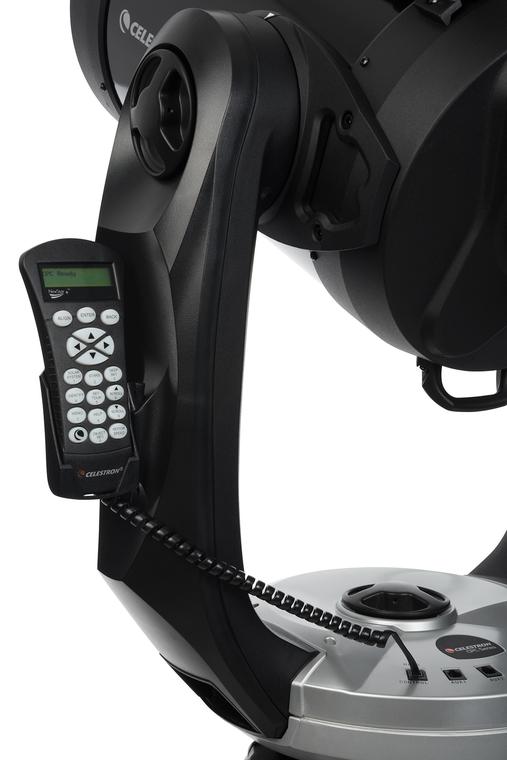

Computer Hand Control: Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons
Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Power Requirements: 12 VDC 1.5A
Power Requirements - Idle Current: 340 mA
Power Requirements - Slew one axis: 640 mA
Power Requirements - Slew both axes: 900 mA
Cord Management: Cord Wrap Software
GPS: Internal 16 channel
Celestron Product Number: 11075-XLT
