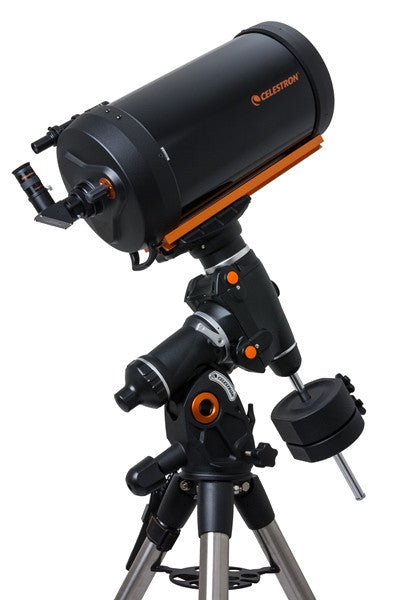

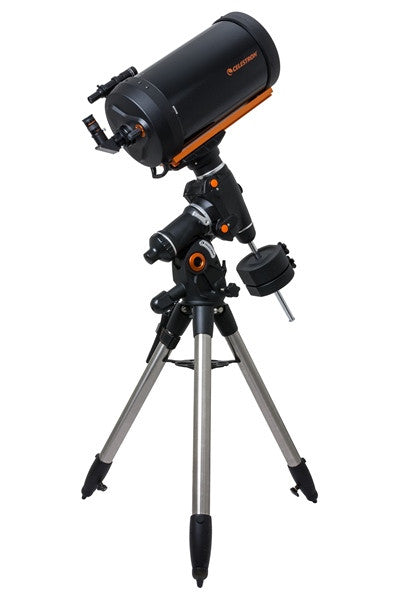

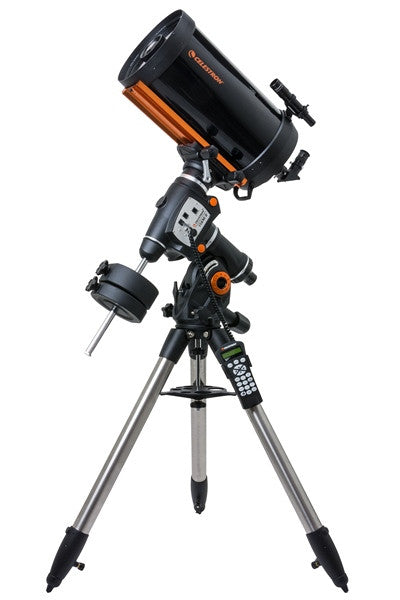

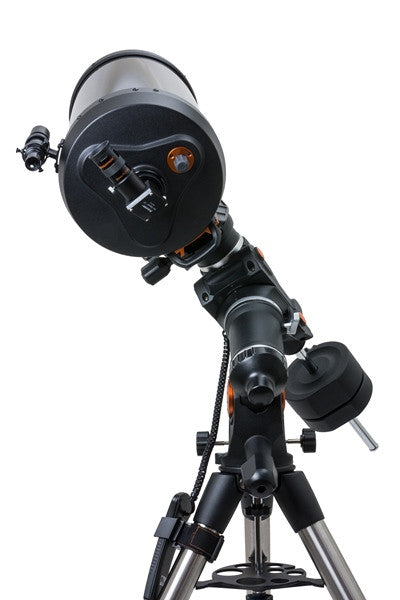

Celestron CGEM II 925 SCT - 9.25" Schmidt-Cassegrain on CGEM II GoTo Equatorial Mount - 12011

Celestron   ——   SKU: CEL-12011
$3,456.67 CAD
Add to cart
Product Info
Shipping

The CGEM II 925 Schmidt-Cassegrain Telescope features Celestron’s premium StarBright XLT coated optics and the newly redesigned CGEM II computerized equatorial mount.  The CGEM II 925 offers the middle ground for those looking to combine portability with high resolution. This telescope is especially at home as a solid platform for long exposure photography with optional CCD cameras or photographic equipment.  With over 925 inches of aperture and our premium StarBright XLT coatings, the CGEM II 925 gives you over 1000 times the light gathering power than the unaided eye.

A fresh update to the venerable CGEM mount, the CGEM II has a fresh, attractive, bold appearance and is capable of carrying Celestron’s higher-end SCT optical tubes (up to 11") securely and vibration free, which is ideal for both imaging and visual observing. Capable of holding 40 lbs. of payload and slewing at 5° per second, you will be able to instantly point to any of the celestial objects in the database.

ERGONOMIC DESIGN

CGEM II was designed to be ergonomically friendly with large Altitude and Azimuth adjustment knobs for quick and easy polar alignment adjustment. The internal RA and DEC motor wiring provides a clean look and an easy and trouble free set up.

INNOVATION

The CGEM II series features Celestron’s innovative Polar alignment procedure called All-Star™. All-Star allows users to choose any bright star, while the software calculates and assists with polar alignment. Another great feature of the CGEM II sure to please astroimagers, is the Permanent Periodic Error Correction (PEC) which will allow users to train out the worm gears periodic errors, while the mount retains the PEC recordings.

PERFORMANCE

For objects near the Meridian (imaginary line passing from North to South), the CGEM II will track well past the Meridian for uninterrupted imaging through the most ideal part of the sky. The CGEM II mount has a robust database with over 40,000 objects, 100 user defined programmable objects and enhanced information on over 200 objects. Celestron's CGEM II mount is the perfect fit between the Advanced Series and CGE Series. Offering the portability of the Advanced Series and the precision of the CGE.

OVERVIEW

OPTICAL TUBE FEATURES

  • 9.25" Schmidt-Cassegrain Optical Tube Assembly
  • Celestron's premium StarBright XLT coatings
  • 2350 mm focal length (f/10)
  • 25 mm eyepiece included (94x)
  • Visual back allows for use with 1.25" accessories
  • 6x30 finderscope to help accurately center alignment objects
  • Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
  • Includes large CGE style dovetail mounting bar



COMPUTERIZED MOUNT FEATURES

  • 40 lbs payload capacity
  • Dual-fit Vixen/CG-5 and Losmandy/CGE dovetail saddle
  • 2" steel legs with height index marks for quick leveling
  • USB 2.0 port on hand control for direct links to a PC via ASCOM supported software.
  • 40,000 object database with over 100 user-definable objects and expanded information on over 200 objects
  • Internal cabling throughout for worry-free remote operation
  • Low cog DC Servo motor with integrated optical encoders offer smooth, quiet operation
  • Able to track past the meridian allowing seamless imaging
  • Permanent periodic error corrections allow users to train out the worm gears periodic errors once, while the mount retains the PEC recordings.
  • Software Features include: Mount Calibration, Database Filter Limits, Hibernate, five Alignment Procedures, and user-defined slew limits
  • Built-in polar alignment program to polar align on any star in the sky
  • Longer clutch levers to make tightening and loosening of clutches easier
  • Custom database lists of all the most famous deep-sky objects by name and catalog number
  • Solar System alignment method allows to view the moon and planets during the day
  • Permanent Programmable Periodic Error Correction (PEC) corrects periodic tracking errors inherent to all worm drives
  • Custom Rate 9 feature allows to set maximum slew rate
  • Tandem mode allows to star align the mount even when positioned for tandem scope use
  • USB hand control to control the telescope via a personal computer
  • Includes NexRemote telescope control software, for advanced control of telescope via computer
  • Precision machined 40 mm diameter steel Polar shafts supported by multiple tapered roller bearings and ball bearings
  • GPS-compatible with optional SkySync GPS Accessory

SPECIFICATIONS

Optical Tube Info
Optical Design Schmidt-Cassegrain
Aperture (mm) 234.95 mm (9.25 in)
Focal Length 2350 mm (93 in)
Focal Ratio 10
Focal Length of Eyepiece 1 (mm) 25 mm (0.98 in)
Magnification of Eyepiece 1 94 x
Finderscpoe 6x30
Star Diagonal 1.25
Optical Tube Aluminum
Highest Useful Magnification 555 x
Lowest Useful Magnification 34 x
Limiting Stellar Magnitude 14.4
Resolution (Rayleigh) 0.59 arc seconds
Resolution (Dawes) 0.49 arc seconds
Light Gathering Power (Compared to human eye) 1127 x
Secondary Mirror Obstruction 3.35 in (85 mm)
Secondary Mirror Obstruction by Diameter 36%
Secondary Mirror Obstruction by Area 13%
Optical Coatings StarBright XLT
Optical Tube Length 22 in (559 mm)
Optical Tube Weight 20 lbs. (9.07 kg)
Dovetail Compatibility CGE Mount
Mount Info
Mount Type German Equatorial Mount
Tripod 2” Steel tripod with graduated markings on lower section
Dovetail Mount Directly connects to both CG-5 & CGE dovetail bars
Payload Capacity 40 lbs
Latitude Range 15º – 70º
Power Requirements 12 VDC, 3.2 amps
Ports 1x Hand control port, 1x Auxiliary Port, 1x Auto guider port, 1 USB 2.0 port (on hand control)
Motor Drive Low cog DC servo motors
Slew Speeds 9 slew speeds
Tracking Rates Sidereal, Solar and Lunar
Tracking Modes EQ North and EQ South
Alignment Procedures AutoAlign, 2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align
Computerized Hand Control Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons, USB 2.0 port for PC connection
Database 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Mount Weight 40 lbs
Tripod Weight 20 lbs
Weight of Counterweight 1x 17 lbs, 1x 11 lbs Counterweights
Total Weight of Mount Kit 77 lbs
